Designed and manufactured by TIANTAI, this 1000L micro brewery equipment focuses on stable wort extraction, reliable boiling performance, and easy daily operation. The four-vessel brewhouse structure helps reduce initial investment while maintaining professional brewing quality.

Output/Brew 1000L (Per batch/brewing)
Brews/Day 1-2 (Daily one batch is recommended)
Output/Month 100HL~200HL (Depends on beer brewing production plan, brewing cycle. Capacity/quantity of fermentation tanks are optional)
ElectricĀ Supply 3 phase/380(220, 380,415,600)v/50 (60)Hz (Customizable according to local power)
HeatingĀ Source Steam and electric heating are optional
AreaĀ Request >120M2, Brewery layout designed as per layout of each project
  • Quality Craftsmanship
  • End-to-End Servic
  • After-Sales Support
Arrange consultation
four_vessels
600L four_vessels
300L_four_vessels
3000L_four_vessels

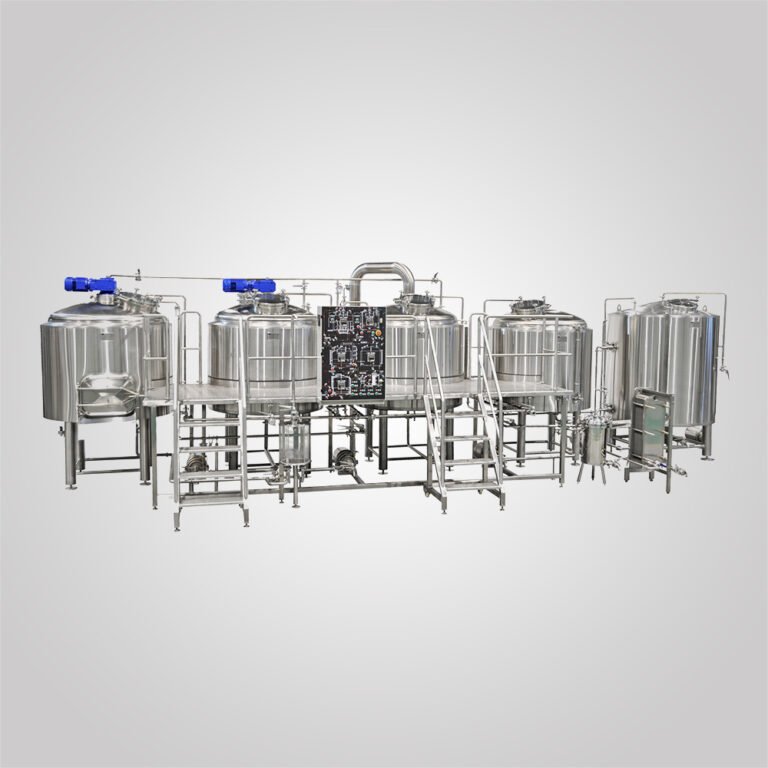

1000L Four Vessel Brewery Equipment Brief Introduction

This four-vessel brewhouse consists of Mash Tun, Lauter Tun, Boiling Kettle and Whirlpool Tun. It is equipped with many practical configurations including motorized rake with automatic lifting structure, wort balance column for pressure equalization, optional PLC control, automatic brewing water blending and automatic wort cooling function, as well as automatic CIP system to realize full cleaning without dead corners for all tanks. Available inner and outer surface finishes include brushed finish, 2B finish, mirror polish and polished copper.

Part 1: Malt Milling Unit
1.1 Malt Mill [300-500kg/hr] 1set
1.2 Flexible Auger 1set
1.3 Milling Controling Cabinet 1set
Part 2: 1000L ThreeĀ Vessel/HLT Brewhouse
2.1 10HL Mash Tun 1set
2.2 10HL Lauter Tun
2.3Ā 10HL Kettle Tun 1set
2.4 10HL Whirlpool Tun
2.5Ā 20HL Hot Water Tank 1set
2.6Ā Non-slip Work Platform 1set
2.7Ā Sanitary Centrifugal Pump [LYSF] 2sets
2.8Ā Sanitary Piping 1set
2.9Ā Valves and Fittings 1set
2.10Ā Manual Water Mixing Station 1set
2.11Ā Manual Wort Cooling Station 1set
2.12Ā Pipeline Instrument Sensor 0unit
2.13Ā 25L Glass Wort Grant 1set
2.14Ā 10M2 Heat Exchanger [304SS NANHUA] 1set
2.15Ā Pipe Filter 1set
2.16Ā Wort Aeration Station 1set
2.17Ā 20L Yeast Feeder 1set
Part 3: Fermentation Unit
3.1 2000L Fermentation Tank/Unitank 4sets
3.2 2000L Bright Beer Tank 1set
Part 4: Glycol Cooling Unit
4.1 2000L Glycol Water Tank 1set
4.2 5HP Glycol Water Chiller 2sets
4.3 Glycol Water Pipeline 1unit
Part 5: Electric Control Unit
5.1 Brewhouse Control Cabinet 1set
5.2 Fermentation Control Cabinet 1set
Part 6: 100L Portable CIP Cart [Two Tanks]
6.1 100L Single Wall Caustic Tank 1set
6.2 100L Single Wall Acid Tank 1set
6.3 Sanitary Centrifugal Pump 1set
6.4 Sanitary Piping 1set
6.5 Valves and Fittings 1set
6.6 Portable Trolly 1set
6.7 CIP Controling Cabinet 1set
Part 7: Spare Parts & Tools
7.1 Spare Parts for brewhouse 1set
7.2 Spare Parts for fermentation 1set
7.3 Spare Parts for control 1set
7.4 Spare Parts for CIP 1set
7.5 Standard Installation Tools 1set
Part 8: Keg Filling Unit
8.1 1-Station Keg Filler 1set
8.2 2-Station 2-Tank Auto Keg Rinser 1set
Part 9: Bottle Filling Unit
9.1 8-Station Semiauto Bottling Machine 1set
Part 10: Filtration Unit
10.1 500kg/hr Candle DE Filter 1set
10.2 One Stage Membrane Filter 0set
Part 11: Steam Supply Unit [Economic]
11.1 100kg/hr Steam Boiler 1set
11.2 Steam Inlet Piping and Valves 1unit
11.3 Steam Trap Piping and Valves 1unit
11.4 Steam Safty Piping and Valves 1unit
11.5 Steam Main Supply Line 1unit
11.6 Steam Distributing Cylinder 1set
11.7 Steam Branch Supply Line 1unit
11.8 Condensed Water Recycle Piping and valves 1unit
Part 12: Air Supply Unit
12.1 420L Oil-free Air Compressor 1set
12.2 Air Filter 1set
12.3 Compressed Air Distribution Pipe 1unit
Part 13: Water Supply Unit
13.1 1000L Raw Water Tank [304SS] 1set
13.2 1000L/Hr RO Water system 1set
13.3 2000L Brew Water Tank [304SS] 1set
13.4 Water Pipe Line 1unit
