Description

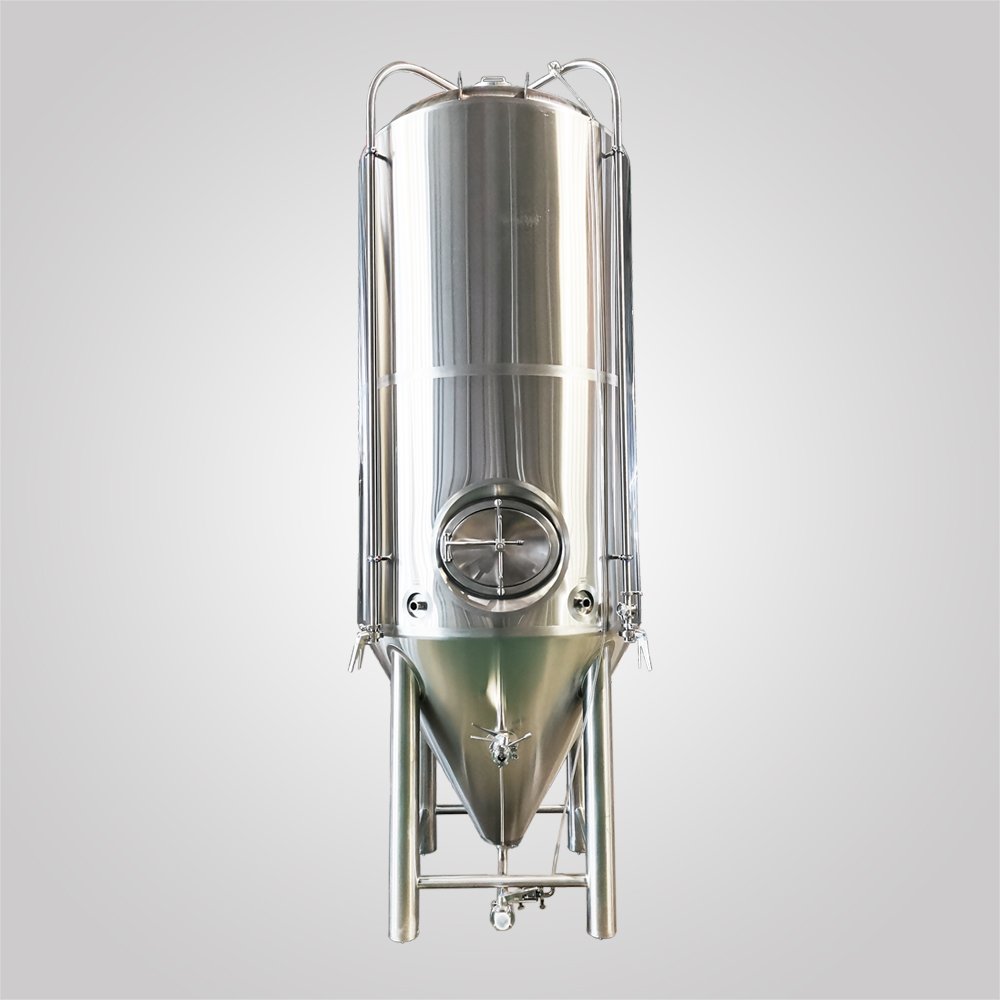

The 5000L beer fermenter is a reliable solution for commercial breweries aiming to increase production efficiency and maintain product consistency. TIANTAI 5000L beer fermenter is engineered for professional breweries requiring stable and scalable fermentation systems. This beer fermentation tank features high-quality stainless steel construction, efficient cooling jackets, and optimized internal design.
The 5000L capacity beer fermenter allows breweries to scale production while maintaining precise fermentation control. It is suitable for continuous brewing operations and large batch production.
5000L Beer Fermenter Specifications
| ā¦ | Ā Function: Wort Fermentation or maturation |
| ā¦ | Ā Tank Capacity: 5000L (+25% Headspace minimum) |
| ā¦ | Ā Dimension: Ī¦1760x4600mm (Customizable) |
| ā¦ | Ā Interior Shell: SUS304 full welded; TH=3mm |
| ā¦ | Ā Exterior Shell: SUS304 full welded; TH=2mm |
| ā¦ | Ā 100% TIG welding with pure argon gas shield |
| ā¦ | Ā Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) |
| ā¦ | Ā Exterior Finish: Oil brushed finishļ¼2B, 8K Mirror finish optional) |
| ā¦ | Ā Interior full polished to 0.2~0.4 Ī¼m without dead corner |
| ā¦ | Ā Insulation: TH=80mm with low thermal conductivity PU |
| ā¦ | Ā Cooling: 35% Glycol liquid -5ā |
| ā¦ | Ā Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning |
| ā¦ | Ā Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours |
| ā¦ | Ā Jacket Working Pressure: < 2bar/30psi |
| ā¦ | Ā Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours |
| ā¦ | Ā Tank Working Pressure:Ā ā¦Ā 2bar/30psi |
| ā¦ | Ā Dished top full polished |
| ā¦ | Ā Conical bottomĀ with 60Ā° cone (customizable) |

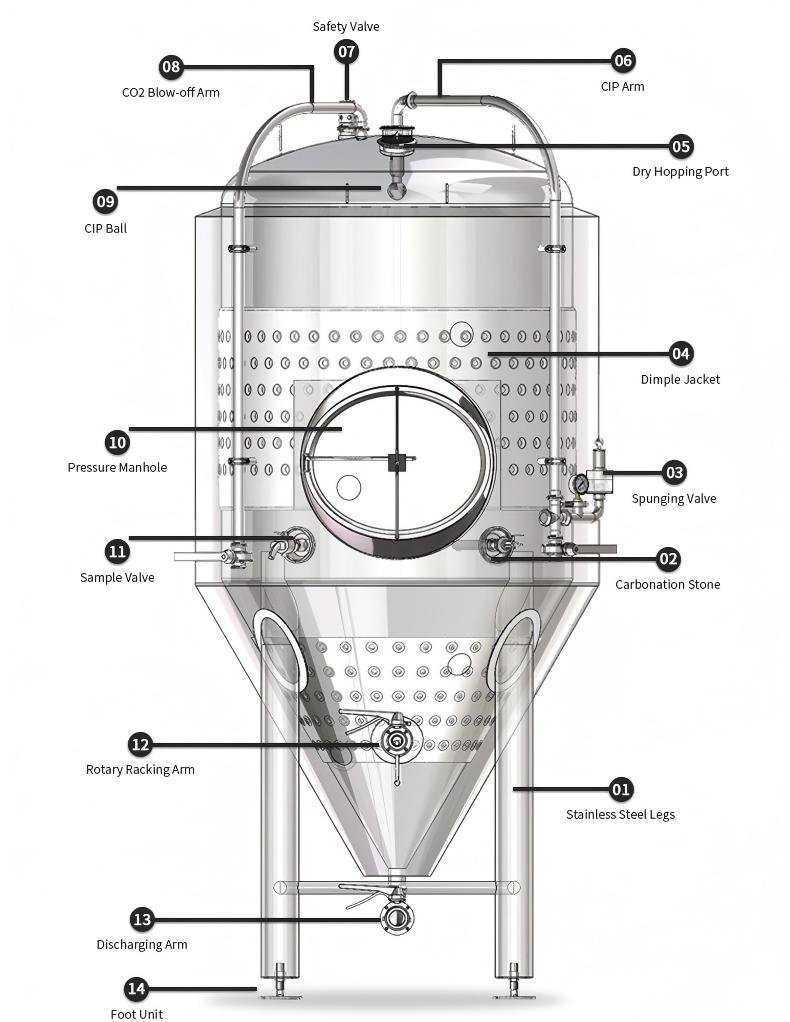

| ā¦ | Ā Sanitary side mounted oval manhole with pressured door (Top mounted available) |
| ā¦ | Ā Top mounted double clamp 360Ā° rotary CIP spraying ball and port, 1pc |
| ā¦ | Ā CIP arm with four-way connection and butterfly valve |
| ā¦ | Ā CO2 blow-off arm with butterfly valve (Removable) |
| ā¦ | Ā Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available) |
| ā¦ | Ā Full sanitary sampling valve with EPDM seal |
| ā¦ | Ā Hydraulic shock pressure gauge on CIP armĀ ļ¼Diaphram type for optional) |
| ā¦ | Ā Horizontal mounted rotating racking armĀ and port in cone with butterfly valve |
| ā¦ | Ā Discharge arm with butterfly valve, Removable and easy to clean |
| ā¦ | Ā Sanitary welded thermowell for high accuracy temperature sensor 1pc |
| ā¦ | Ā Dry hopping port 4” with solid end cap (Hops pitching tank for optional) |
| ā¦ | Ā Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available) |
| ā¦ | Ā Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available) |
| ā¦ | Ā 4pcs completely SUS304 legs with braces |
| ā¦ | Ā 4 sets heavy duty foot pad with up-down and slop adjustable |
| ā¦ | Ā Complete valves, fittings and all parts, Tri clamp/DIN Union available |
| ā” | Ā Pressure adjustable bunging valve 0.2-2.2bar for special request |
| ā” | Ā Sanitary level tube and valves for special request |
| ā” | Ā Carbonation port with stone for special request |
Contact TIANTAI to learn more about our 5000L beer fermenter and brewery equipment solutions.
