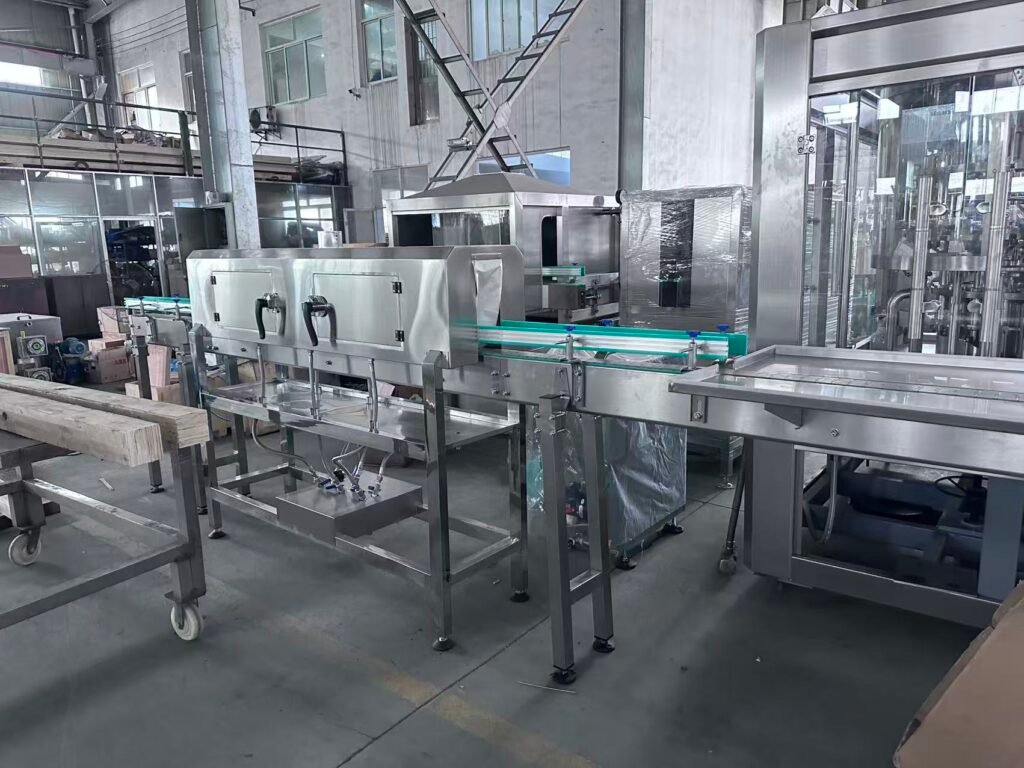

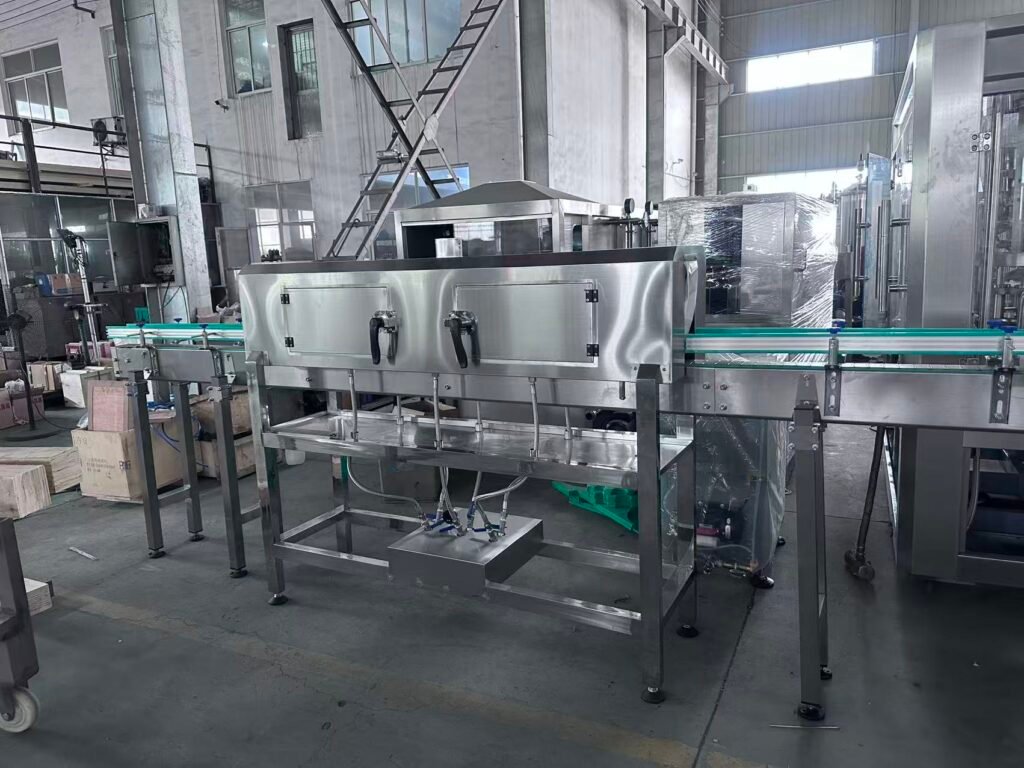

The Shrink Sleeve Tunnel Label Machine is designed to apply heat-shrinkable sleeve labels onto containers (mainly for beer cans) of various shapes and sizes. It uses controlled hot air or steam to evenly shrink the label around the product, ensuring a tight, smooth, and wrinkle-free fit that enhances product appearance and provides tamper-evident packaging.
-1. Adaptable to various bottle shapes (round, square, flat, and irregular), this steam/electric shrink oven is user-friendly and maintains uniform shrinkage.
-2. Seamless tubes ensure even steam distribution from the low-pressure drum.
-3. Three independently adjustable nozzle segments allow precise control over height, position, and steam output for optimal results.
-4. Stainless steel construction with insulation saves energy and meets international safety standards.
-5. A stainless steel tray collects condensate.
-6. Waterproof design ensures easy operation and minimal maintenance.
Technical Parameters of Shrink Sleeve Tunnel Label Machine
| Input Power Supply of Blower | 3Phase 380 or 220 VAC Ā 18KW |
| Input Power Supply of Steam Generator | 380V(220V)/50HZ |
| Working Pressure | 0.1Mpa |
| Weight | 500kg |
| Steam Consumption | 10-20Kg/h |
| Size of Oven Body | L1800mmĆW600mmĆH450mm |
| Transporting Speed | 0-35m/min |
If you are interested in this Shrink Sleeve Tunnel Label Machine solution, please do not hesitate to contact us.
