Integrated Keg Processing Solution ā Filling & Washing in One System

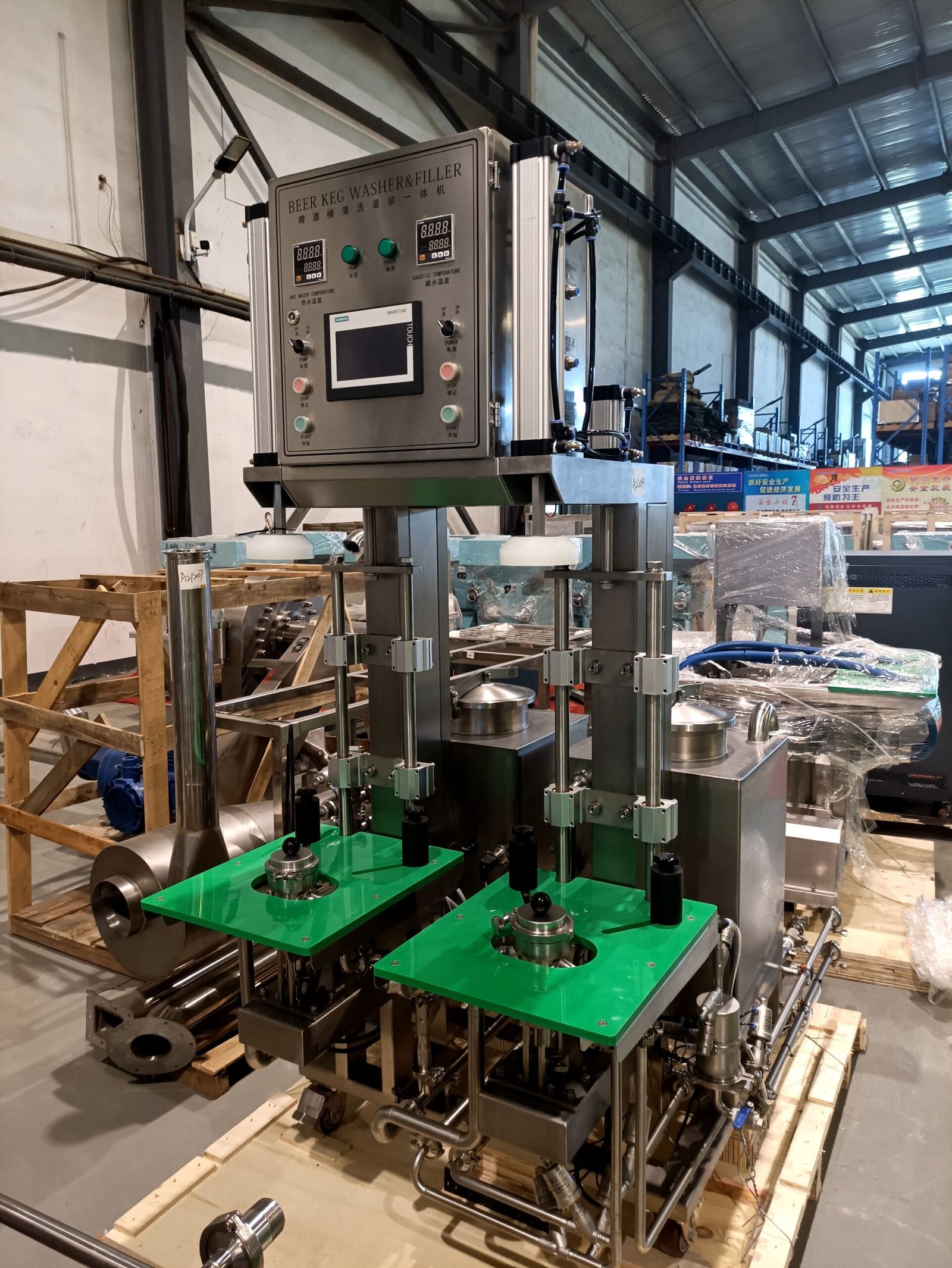

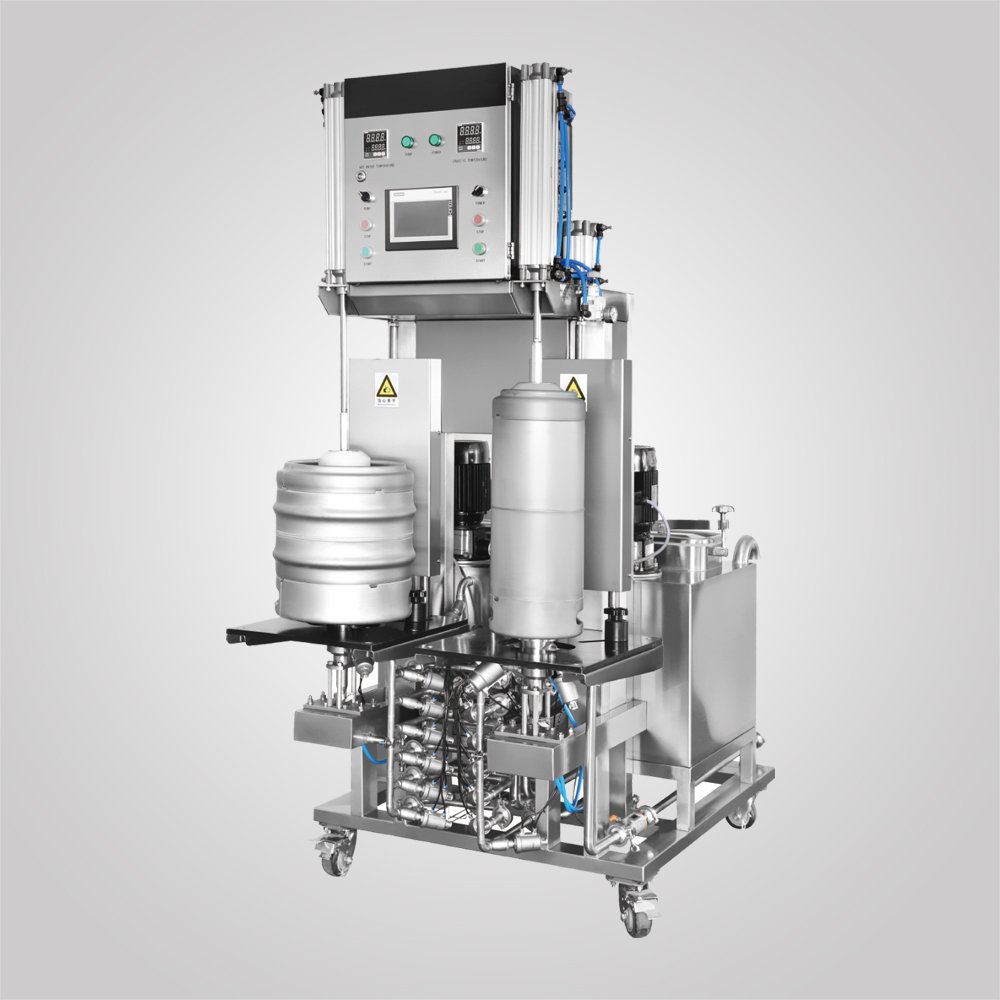

The keg filling & washing machine is an integrated solution designed to clean, sanitize, and fill beer kegs in a single system.
It combines keg washing and filling functions, improving efficiency while reducing labor and equipment footprint.
This system is ideal for craft breweries and beverage producers looking for a compact, hygienic, and efficient keg processing solution.
Key Features of Keg Filling & Washing Machine
- All-in-One Design ā Washing and filling integrated in one system
- High Efficiency ā Continuous operation improves productivity
- Space Saving ā Compact footprint compared to separate machines
- Fully Hygienic Process ā Complete cleaning and sanitary filling
- COā Purging System ā Minimizes oxygen pickup during filling
- Flexible Configuration ā Available in manual, semi-automatic, or automatic versions
- Durable Construction ā Made of SUS304 stainless steel
- Customizable Stations ā 1, 2, or more stations available
Technical Specifications of Keg Filling & Washing Machine
| ā¦Ā Function: Keg washing and filling |
| ā¦Ā Model: HZ-QG-3 |
| ā¦Ā Rinsing Capacity: 30-40kegs/hr |
| ā¦Ā Input Power: 2.5kw |
| ā¦Ā Heating: Steam |
| ā¦Ā Inversion rinsing |
| ā¦Ā Kegs style: 5-50 liters with D=Ī¦250-Ī¦500mm H=360-600mm |
| ā¦Ā Siemens programmable Controller |
| ā¦Ā Automatically Filling, Washing, Sterilizing, and CO2 pressure preparation |
| ā¦Ā Two Tanks: Alkali Tank, hot water tank |
| ā¦Ā Sterilizer/Alkali Water Recycled |
| ā¦Ā Pneumatic valve |
| ā¦Ā Work Process standard or customerized |
| ā¦Ā Filling process: keg positioning – pressing the table down – hot water or steam blowing the beer spear – CO2 blowing the beer lance – beer spear opening – CO2 standby pressure – filling – stop at metering setting – beer spear closing – hot water – CO2 blowing the beer lance – table rising – taking keg |
| ā¦Ā Cleaning process: keg positioning – pressing the table down – opening spear – draining residual liquid – clean water cleaning – sewage discharge – alkali cleaning – recycling – hot water cleaning – sewage discharge – steam – cold water cooling – sewage discharge – beer spear closing – table rising – take keg |
| ā¦Ā Steam sterilization is user-selectable |
| ā¦Ā Weight: 260kg |
| ā¦Ā Dimensions: 1300Ć1300Ć2300mm |
Applications
- Craft breweries
- Brewpubs
- Medium-scale production facilities
- Beverage factories
Why Choose Tiantai
- Professional manufacturer of brewery equipment
- Turnkey solutions for complete keg lines
- Rich experience in global brewery projects
- Strict quality control and durable materials
- Reliable technical support and after-sales service
Looking for a complete keg washing and filling solution?
Contact us today to get a customized design and quotation.
