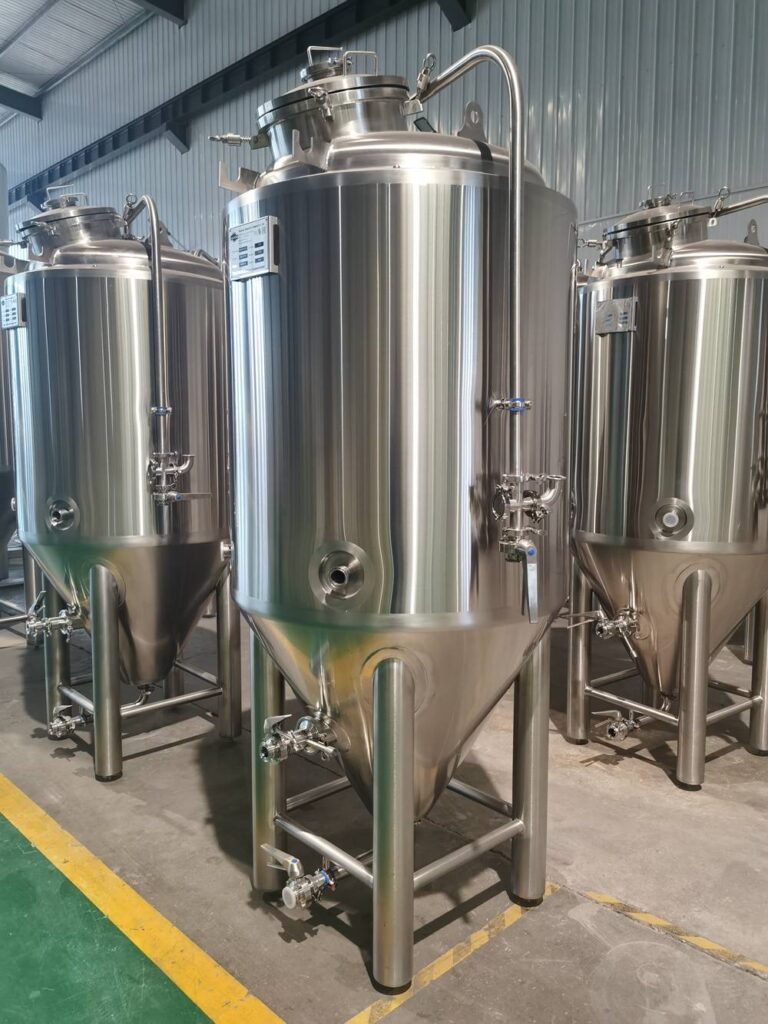

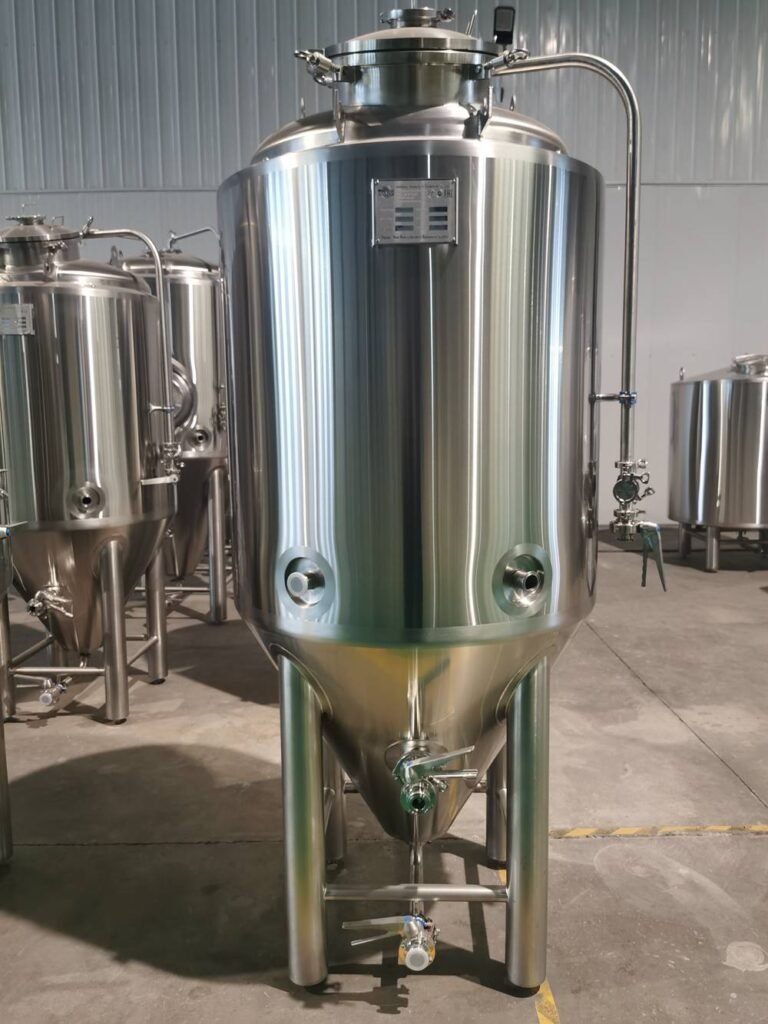

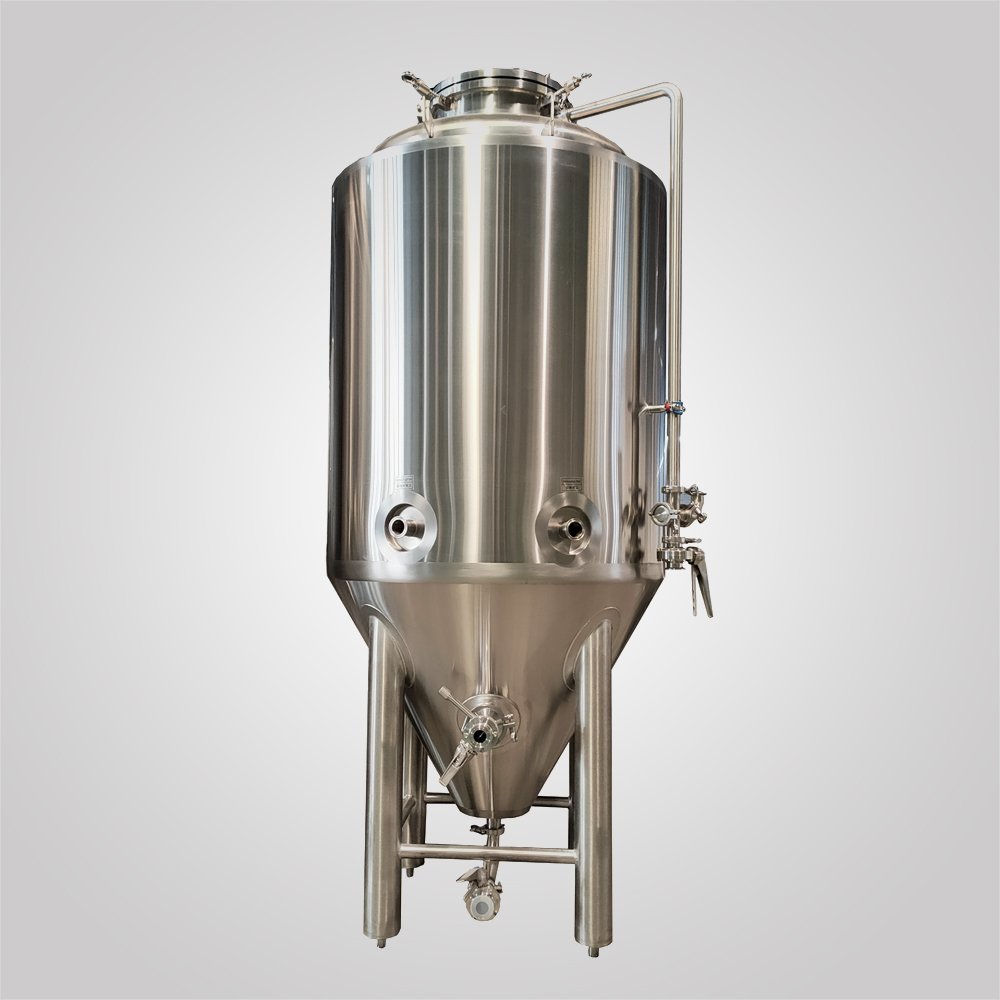

500L Beer Fermenter Fermentation Tanks are widely used in the beer fermentation industry, primarily in craft breweries, microbreweries, bar equipment, and recipe experimentation equipment in large breweries. Our Tiantai 500L beer fermenters utilize rigorous stainless steel welding technology and are Isobaric fermentation vessels. Please see below for specific parameters and details.
Specifications of 500L Beer Fermenters
| ♦ Function：Wort Fermentation or maturation |
| ♦ Tank Capacity: 500L (+25% Headspace minimum) |
| ♦ Dimension: Φ960x2250mm (Customizable) |
| ♦ Interior Shell: SUS304 full welded; TH=3mm |
| ♦ Exterior Shell:SUS304 full welded; TH=2mm |
| ♦ 100% TIG welding with pure argon gas shield |
| ♦ Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional) |
| ♦ Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional) |
| ♦ Interior full polished to 0.2~0.4 μm without dead corner |
| ♦ Insulation: TH=80mm with low thermal conductivity PU |
| ♦ Cooling: 35% Glycol liquid -5℃ |
| ♦ Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning |
| ♦ Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours |
| ♦ Jacket Working Pressure: < 2bar/30psi |
| ♦ Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours |
| ♦ Tank Working Pressure: ≦ 2bar/30psi |
| ♦ Dished top full polished |
| ♦ Conical bottom with 60° cone (customizable) |
| ♦ Sanitary top mounted oval manhole with pressured door (Side mounted available) |
| ♦ Top mounted double clamp 360° rotary CIP spraying ball and port, 1pcs |
| ♦ CIP arm with four-way connection and butterfly valve |
| ♦ CO2 blow-off arm with butterfly valve (Removable) |
| ♦ Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available) |
| ♦ Full sanitary sampling valve with EPDM seal |
| ♦ Hydraulic shock pressure gauge on CIP arm （Diaphram type for optional) |
| ♦ Horizontal mounted rotating racking arm and port in cone with butterfly valve |
| ♦ Discharge arm with butterfly valve, Removable and easy to clean |
| ♦ Sanitary welded thermowell for high accuracy temperature sensor 1pcs |
| ♦ Dry hopping port 4” with solid end cap (Hops pitching tank for optional) |
| ♦ Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available) |
| ♦ Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available) |
| ♦ 4pcs completely SUS304 legs with braces |
| ♦ 4 sets heavy duty foot pad with up-down and slop adjustable |
| ♦ Complete valves, fittings and all parts, Tri clamp/DIN Union available |
| £ Pressure adjustable bunging valve 0.2-2.2bar for special request |
| £ Sanitary level tube and valves for special request |
| £ Carbonation port with stone for special request |
If you have any requirement about our brewery equipment, please do not hesitate to contact us. We are pretty happy to do our best to support you.
