Brief introduction Of 200L Brite Beer Tank
Bright beer tanks/brite tank are used for the storage of the beer prior to being served or packaged. And the secondary fermentation proceeds in the bright tank. So it normally need glycol jacket to control temperature. For brewpubs, serving is often done by pumping or pressurizing the beer toward the serving location. But if budget is not sufficient, the fermentation tank added carbonation device can serve as bright beer tank.
Quick view of 200L Brite Beer Tank
| Capacity | 200L |
| Dimension | Φ710x1600mm |
| Body of Tank | Dished head and dished bottom |
| Location of Manway | Top mounted manway |
| Glycol Jacket | Yes |
| Insulation | Polyurethane 80mm |
| Heavy Duty Leg | 4 pcs |
| Carbonation Device | Yes |
| Welding | 100% TIG welding with pure argon gas shield
|

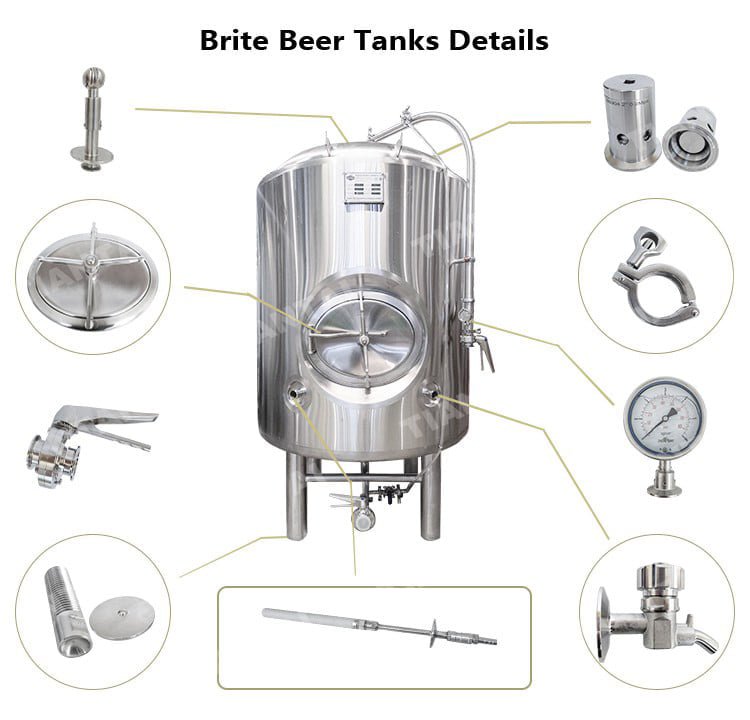

Main configuration of 200L Brite Beer Tank
-Interior Shell: SUS304 full welded; TH=3mm
-Exterior Shell:SUS304 full welded; TH=2mm
-Interior Finish: Overall polishing to 0.2~0.4 μm without dead corner
-Insulation: Polyurethane; TH=80mm
-Glycol Jacket: Dimple plate on side wall
-Sanitary top mounted manway
-CIP arm with 360° coverage CIP spraying ball
-Mechanical relief valve 2 bar on CIP arm
-Carbonation port with stone
-Shockproof pressure gauge on CIP arm
-Tri clamp discharge arm with butterfly valve
-Thermowell for high accuracy temperature sensor
