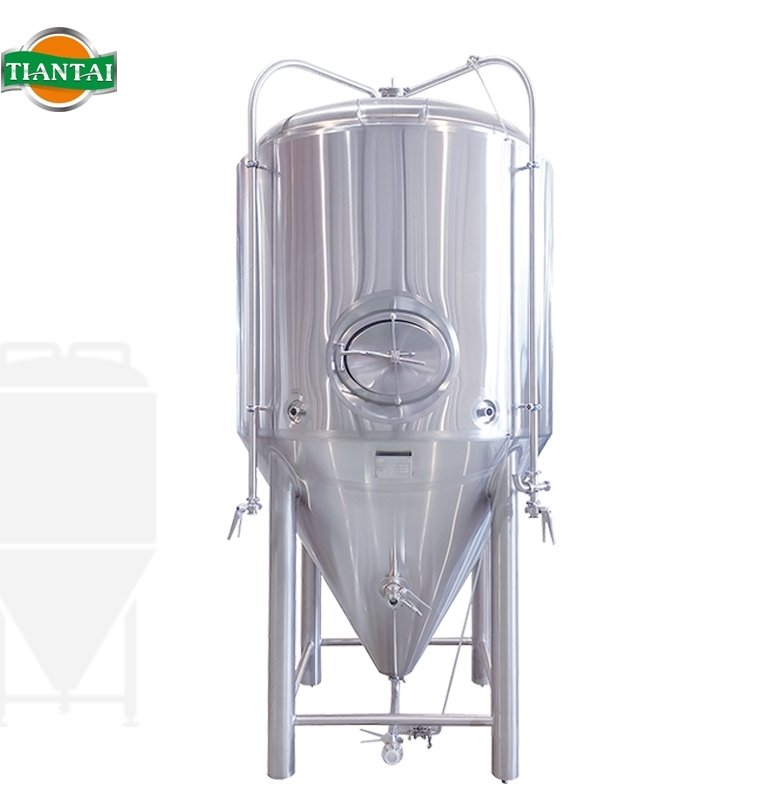

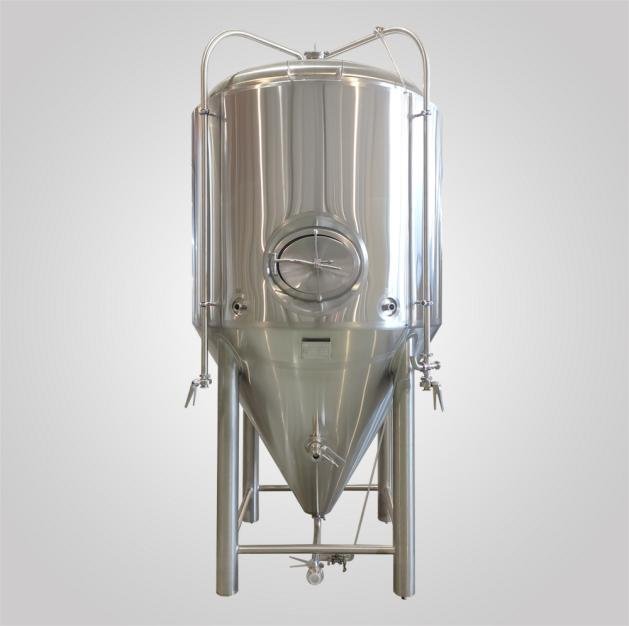

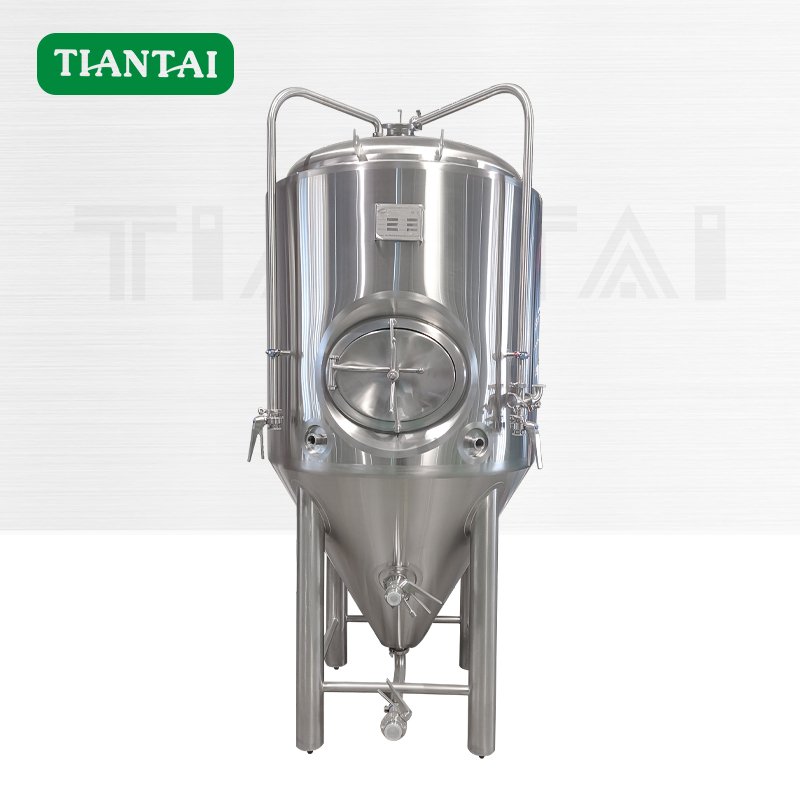

Name	Fermenter/Fermentation Tank
Function	Beer, Cider, Wine, Kombucha, Beverage Fermenting Vessel
Structure	Dished Top, Conical Bottom
Manway	Side as standard, Top available
Material	High-level Stainless Steel 304

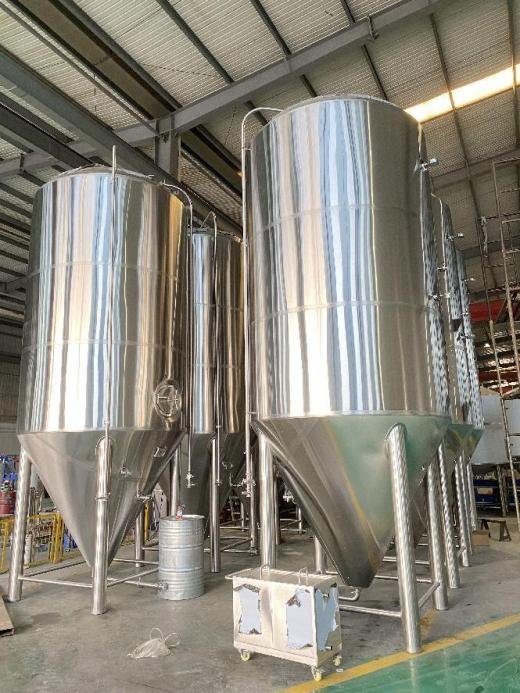

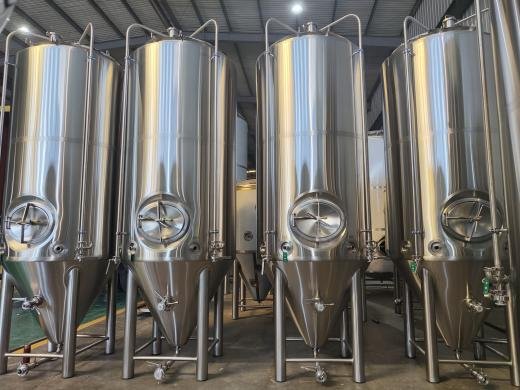

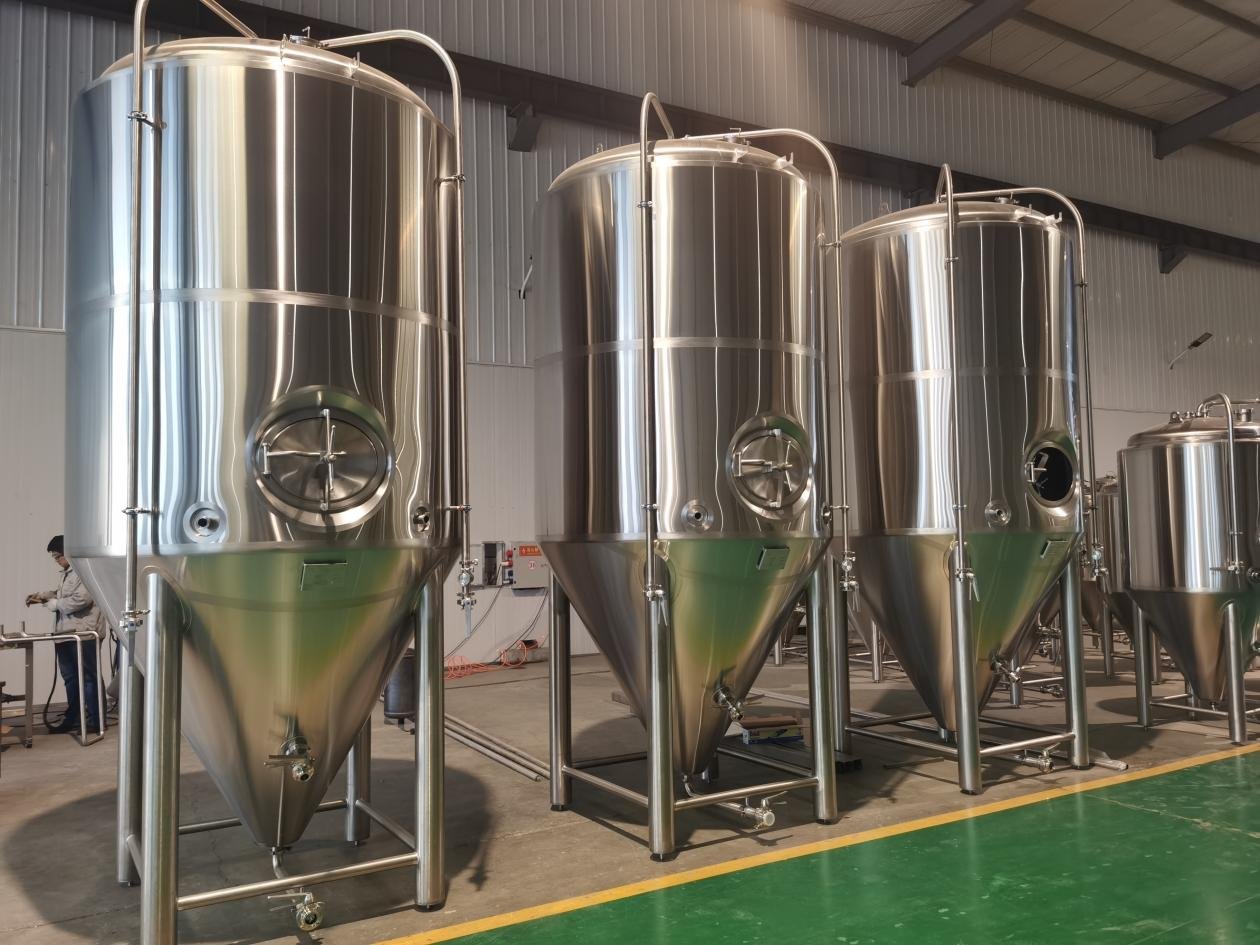

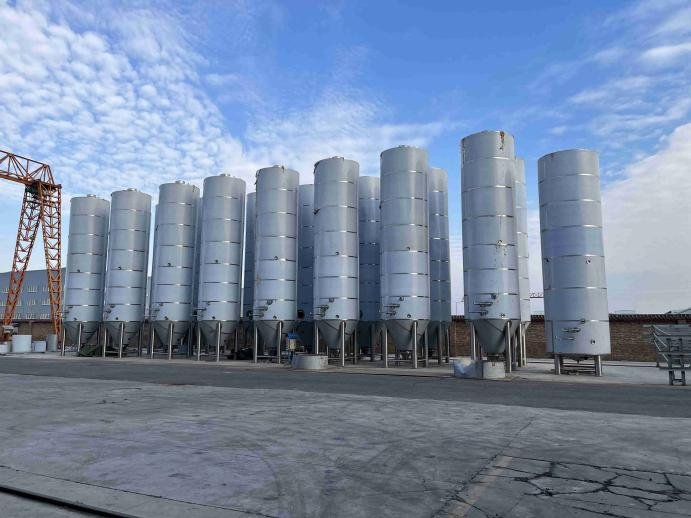

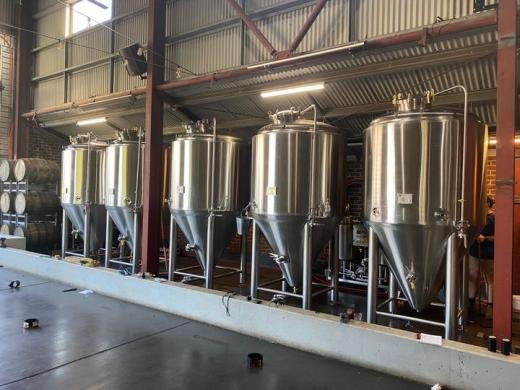

Newly-Completed Tanks Show




2000L Fermenter Parameters:

Function：Wort Fermentation or maturation

Tank Capacity: 2000L (+25% Headspace minimum)

Dimension: Φ1560x3120mm (Customizable)

Interior Shell: SUS304 full welded; TH=4mm

Exterior Shell:SUS304 full welded; TH=2mm

100% TIG welding with pure argon gas shield

Interior Finish: Sanitary 2B finish, Pickled and Passivated; (8K Mirror finish optional)

Exterior Finish: Oil brushed finish(2B, 8K Mirror finish optional)

Interior full polished to 0.2~0.4 μm without dead corner

Insulation: TH=100mm with low thermal conductivity PU

Cooling: 35% Glycol liquid -5℃

Cooling Jacket: Dimple plate on bottom and side wall, welded without over burning

Jacket test by water and gas, 5bar/75psi for 1hour, 3.5bar/52psi for 48 hours

Jacket Working Pressure: < 2bar/30psi

Tank leakage test by water and gas, 4bar/60psi for 1hour, 2.5bar/37.5psi for 48 hours

Tank Working Pressure: ≦ 2bar/30psi

Dished top full polished indoor design (Insulated conical top for outdoor as optional)

Conical bottom  with 60° cone (customizable)

Sanitary side mounted oval manhole with pressured door (Top mounted available)

Top mounted double clamp 360° rotary CIP spraying ball and port, 1pc

CIP arm with four-way connection and butterfly valve

CO2 blow-off arm with butterfly valve (Removable)

Mechanical safe valve PVRV 2bar/30psi on top (1bar/15psi available)

Full sanitary sampling valve with EPDM seal

Hydraulic shock pressure gauge on CIP arm （Diaphram type for optional)

Horizontal mounted rotating racking arm  and port in cone with butterfly valve

Discharge arm with butterfly valve, Removable and easy to clean

Sanitary welded thermowell for high accuracy temperature sensor 1pc

Dry hopping port 4'' with solid end cap (Hops pitching tank for optional)

Glycol water in/out port on side wall, Thick wall pipe thread (Top or bottom design available)

Glycol water in/out port on cone, Thick wall pipe thread (Top or bottom design available)

4pcs completely SUS304 legs with braces

4 sets heavy duty foot pad with up-down and slop adjustable

Complete valves, fittings and all parts, Tri clamp/DIN Union available

Pressure adjustable bunging valve 0.2-2.2bar for special request

Sanitary level tube and valves for special request

Carbonation port with stone for special request





Special Customization Services Available to be Provided:

Tank Dimension	Diameter and Height customized available to meet your site requirements.
Leg Length	Adjusted available easy to be seen behind bar or counter.
Manhole	Side or top available to be customized.
Foot Pad	Leveling Pad or Wheels available







Any of your requirements we’d do our best to meet and support, just let us know what we can do to better help you with your project please.
