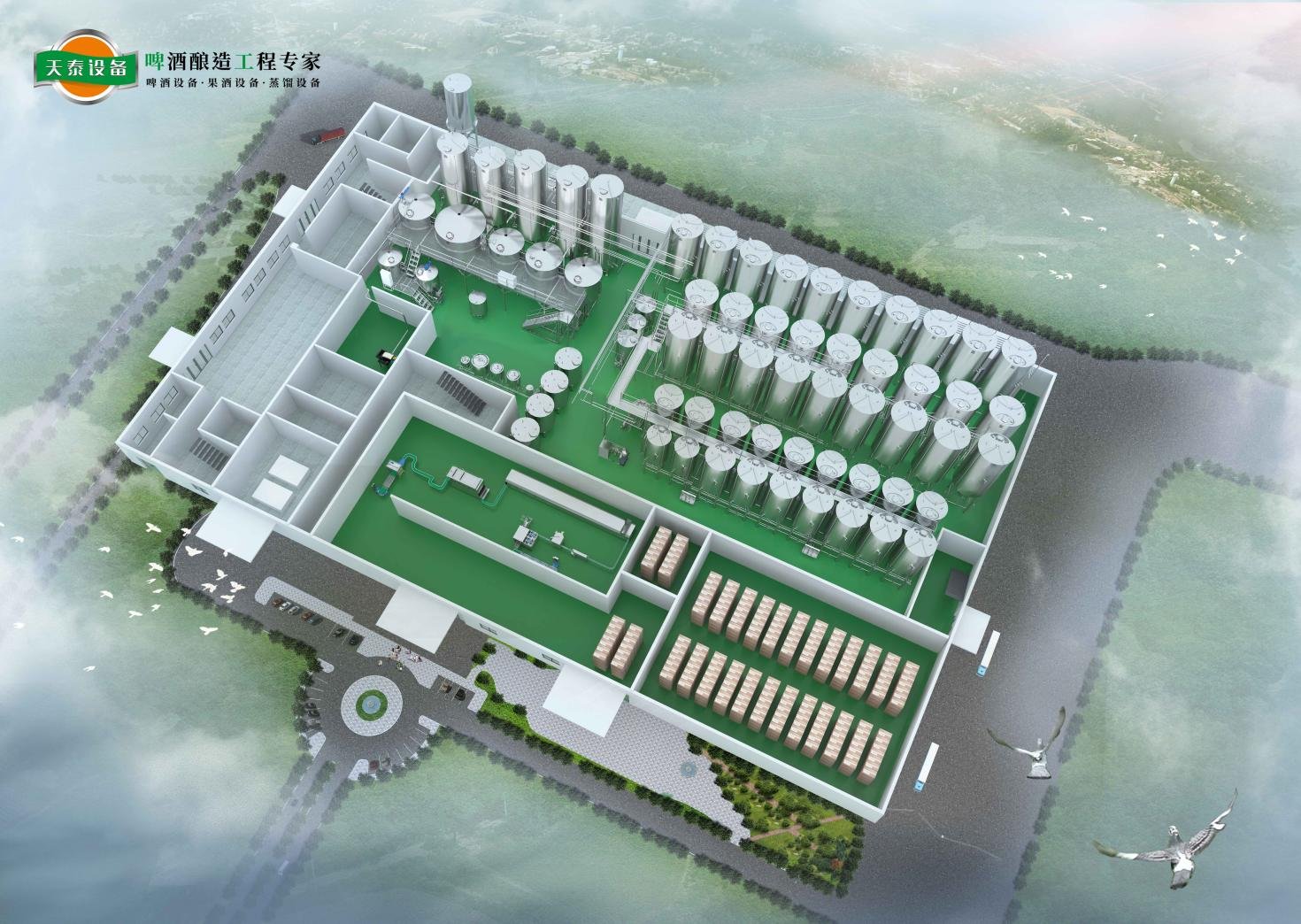

We are pleased to announce the successful completion of a major beer production project located in Guangyuan City, Sichuan Province. This project facility is designed with an annual production capacity of approximately 10 million liters of beer.
The successful delivery of this project marks another milestone in our expertise and capability in handling large-scale commercial brewing ventures. It further strengthens our portfolio and demonstrate our commitment to excellence in the industry.
In the following section, we would like to present an overview of the project’s key components and the construction process. In addition, a detailed video documenting the entire project journey is available. Should you be interested in learning more, please do not hesitate to contact us.
Equipment Introduction

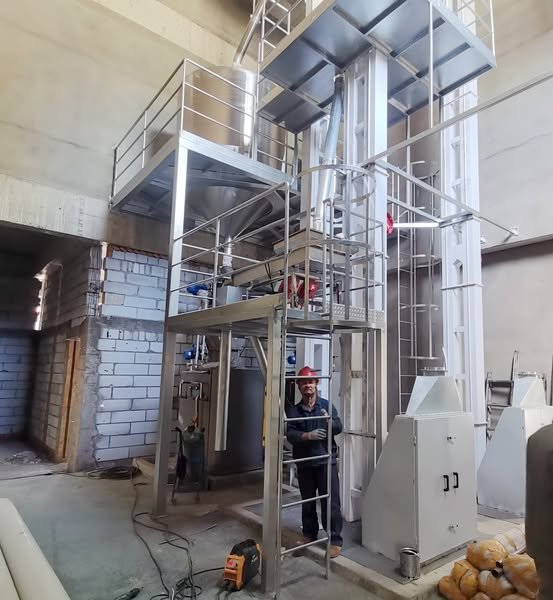

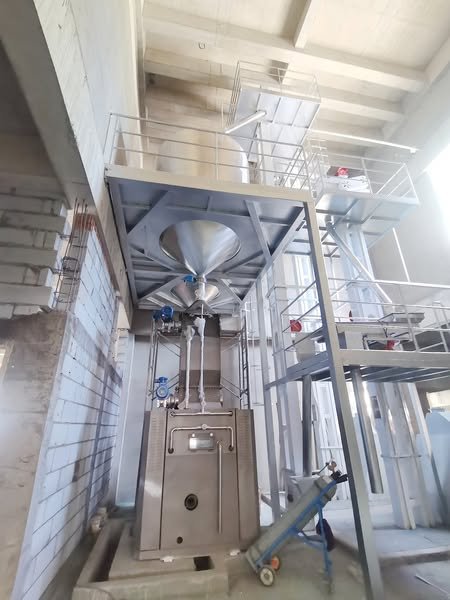

I. Wet Milling System
The process begins with a wet milling system. Malt is first passed through cleaning stages to remove stones and ferrous impurities, effectively eliminating any contaminants that could disrupt equipment operation of final product quality. The cleaned malt is then mixed with water at 50℃ and steeped for 15-20 minutes. This conditioning step raises the malt’s moisture content to approximately 30%, optimizing it for the subsequent milling process in the twin-roller mill. The milling occurs simultaneously with the addition of mashing liquor, creating a mash. This wet milling method is particularly suited for large-volume, continuous brewing operations, ensuring efficiency and consistent grist quality.
| Category | Equipment Name | Quantity | Key Specifications / Notes |
| Malt Handling | Bucket Elevator | 2 Units | For vertical transport of malt |
| Vibrating Destoner | 1 Unit | Removes stones and other heavy impurities | |
| Permanent Magnetic Tube | 1 Unit | Eliminates ferrous metals | |
| Milling & Dust Control | Wet Malt Mill | 1 Unit | Conditions and mills malt simultaneously |
| Pulse Dust Collector | 1 Set | Ensures a clean and safe working environment | |
| Support Structure | Operation Platform | 1 Set | Provides safe and ergonomic access for operation |

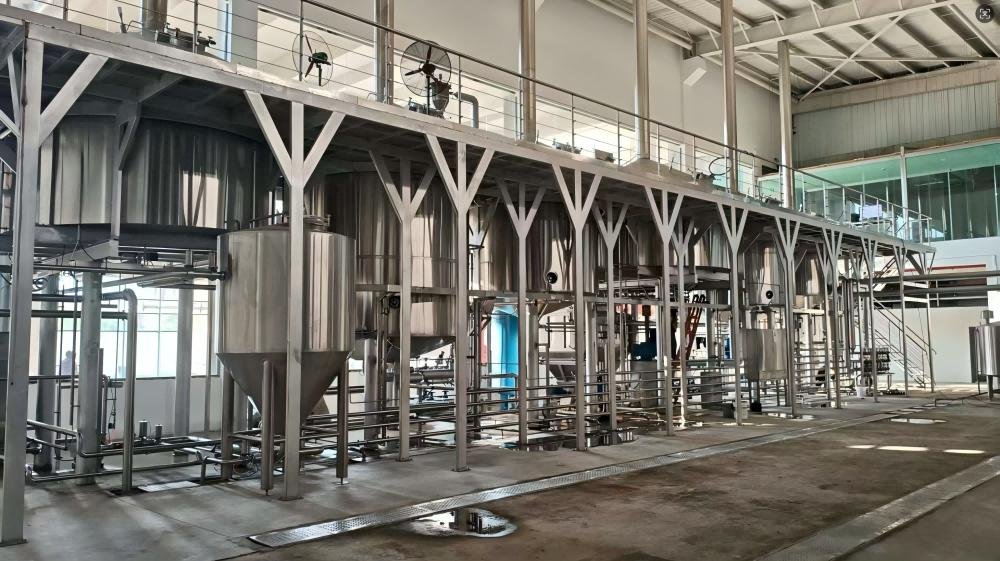

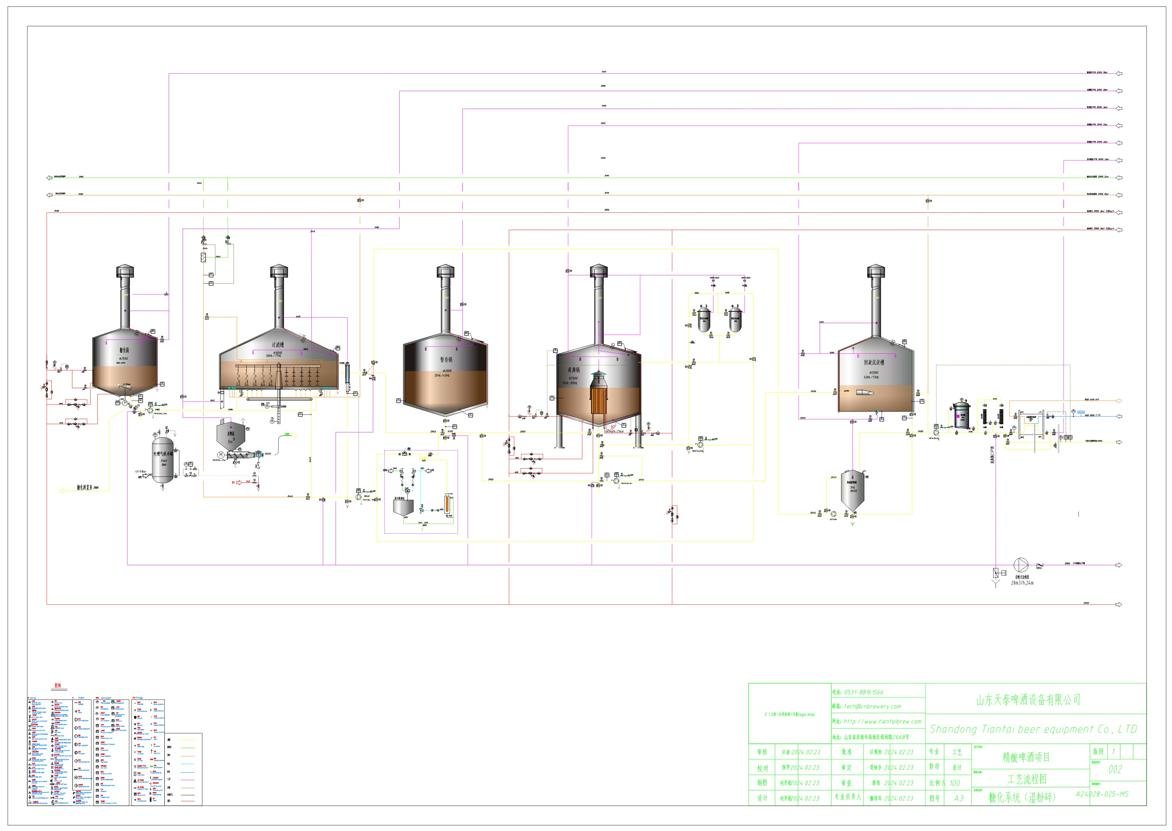

II. Brewhouse System
The brewhouse is one of the most critical components in beer production. Its design must strictly adhere to the mashing process to ensure optimal wort quality, which directly impacts fermentation, filtration performance and the final taste profile of the beer.
Key Equipment Configuration:
| Equipment / Parameter | Standard Function / Design Value | Project-Specific Specification | |
| Mash Tun | Mashing | 10 t | |
| Cook Tun | Adjunct addition&mashing | 7 t | |
| Lauter Tun | For wort filtration | 10 t | 1 Unit |
| Buffer Tank | Wort collecting and storing | 10 t | |
| Boil Kettle | For wort boiling and hop addition | 10 t | 1 Unit |
| Whirlpool Tank | For hot trub separation | 10 t | 1 Unit |
| Plate Heat Exchanger | For cooling wort to fermentation temperature | Standard in Brewhouse Configuration | |
| Venturi Aeration System | For oxygenating the cooled wort | Standard in Brewhouse Configuration | |
| Yeast Dosing System | For inoculating wort with yeast | Standard in Brewhouse Configuration | |
| Per Batch Capacity | - | 10 kL | |
| Max Annual Capacity | - | 20,000 kL |

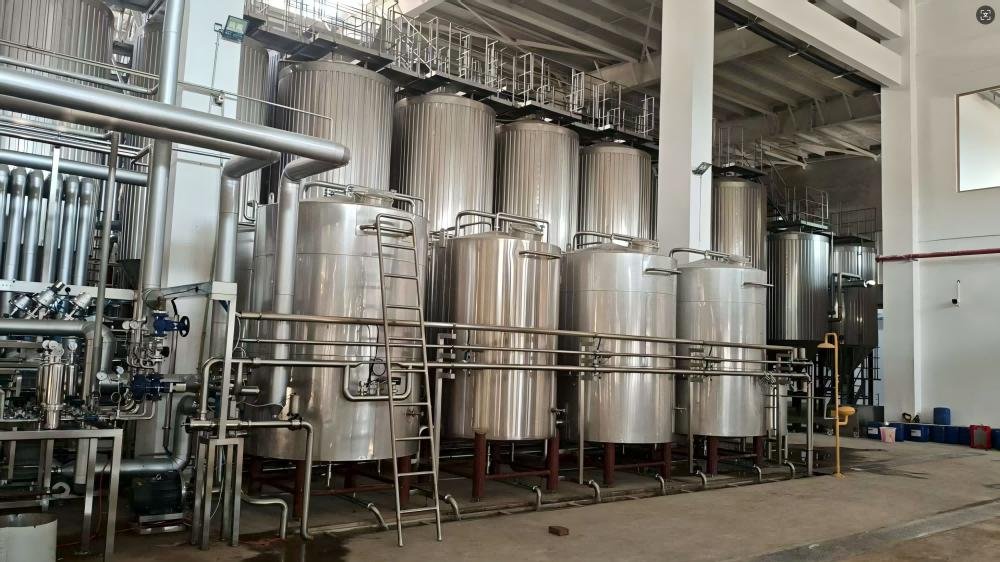

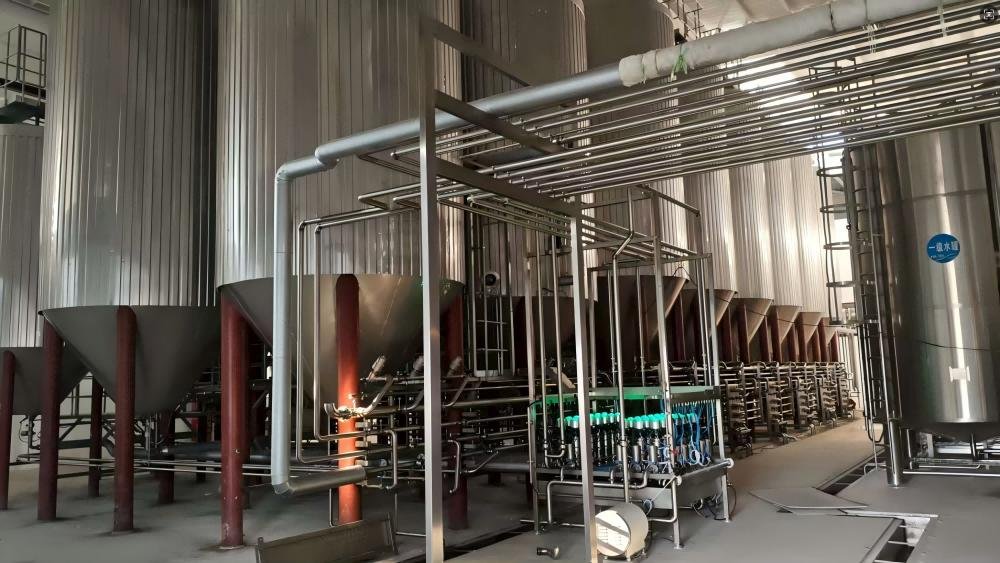

Fermentation is a critical process in beer production, involving complex biochemical reactions with yeast. This process typically utilizes indoor or outdoor cylindrical conical fermentation tanks. These tanks are equipped with an automatic cooling system for precise temperature control throughout the fermentation cycle.
Independent fully integrated CIP system equipped, ensuring comprehensive, dead-angle-free cleaning and sterilization to maintain the highest standards of hygiene and safety. The configuration of fermentation tanks-including their specifications and quantities--is customized based on factors such as the fermentation cycle for different beer styles, production volume ratios, and brewing batch schedules.
| Section | Description | Value / Quantity |
| Capacity Design | Total Storage Volume | 600 kL |
| Average Fermentation Cycle | 15 days | |
| Design Monthly Capacity | ~ 1,200 kL | |
| Design Annual Capacity | ~ 13,200 kL | |
| Fermentation Tanks | 10 kL Capacity | 10 Units |
| 20 kL Capacity | 10 Units | |
| 30 kL Capacity | 10 Units | |
| Auxiliary Systems | Included Components | Pumps, Valves, Piping, Sensors, Operation Platforms |
Other Main Components:

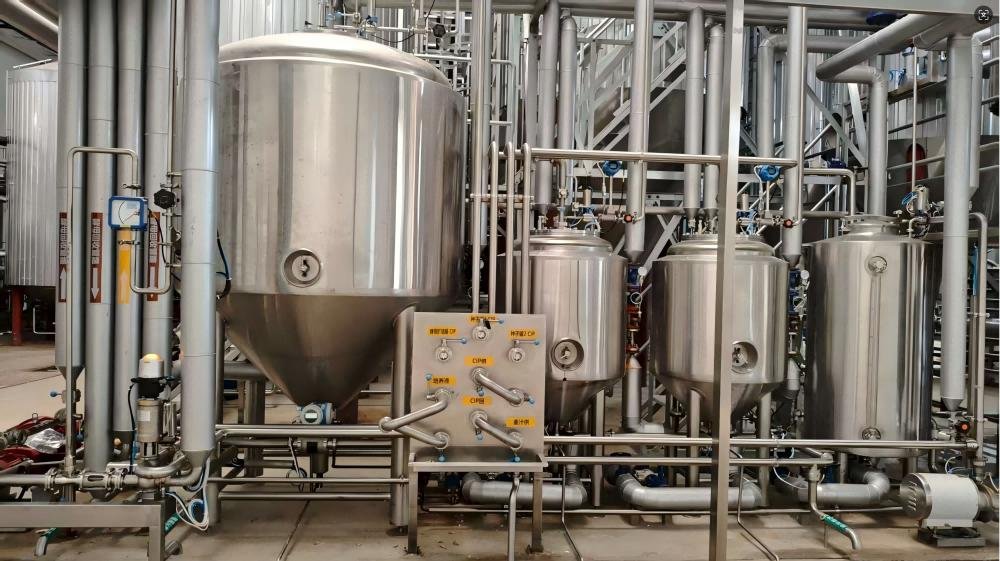

| Yeast Recovery and Pitching System |
| Yeast Storage Tank |
| Yeast Dosing Pump |
| Yeast Propogation System |
| Carlsberg Flask |
| Seed Tank |
| Second Stage Tank |
| Third Stage Tank |
| Hot Caustic Tank |
| Centrifugal Filtration System |
| Pre-Buffer Tank |
| Disc Centrifuge |
| Post-Buffer Tank |
| Diatomaceous Earth Filtration System |
| Silica Gel Dosing Tank |
| Pre-Buffer Tank |
| DE Mixing & Dosing Tank |
| Candle-Type DE Filter |
| Post-Buffer Tank |
| Head & Tail Collection Tank |
| Waste DE Collection Tank |
| Bright Beer Tank System |
| 10 KL Bright Beer Tank |
| 20 KL Bright Beer Tank |
| 30 KL Bright Beer Tank |
| Flash Pasteurizing System |
| Flash Pasteurizing Unit |
| Post-Buffer Tank |
| Hot Water Supply System |
| Hot Liquor Tank |
| Plate Heat Exchanger |
| Hot Water Supply Pump |
| Cold Water Supply System |
| Cold Liquor Tank |
| Plate Heat Exchanger |
| Cold Water Supply Pump |
| Brewing Water Supply System |
| Brewing Water Tank |
| Brewing Water Supply Pump |
| Glycol Chilling System |
| Water-Cooled Chiller |
| Glycol Water Tank |
| Glycol Water Supply Pump |
| Glycol Water Supply Pump |
| CIP System For Brewhouse |
| Hot Caustic Tank |
| Hot Water Tank |
| CIP Supply Pump |
| CIP Return Pump |
| CIP Return Pump |
| Plate Heat Exchanger |
| CIP System For Fermentation |
| Hot Caustic Tank |
| Acid Tank |
| Sanitizer Tank |
| Hot Water Tank |
| CIP Supply Pump |
| CIP Supply Pump |
| CIP Return Pump |
| Plate Heat Exchanger |
| Dosing Unit of Acid/Alkali |
| Caustic Dosing Pump |
| Acid Dosing Pump |
| Water Treatment System |
| Raw Water Tank |
| Centrifugal Water Pump |
| RO Water Treatment Unit |
| Concentrate Water Tank |
| Centrifugal Water Pump |
| Steam Supply System |
| Steam Boiler |
| Soft Water Tank |
| Water Softening Unit |
| Energy Storage Tank |
| Main Steam Distribution Cylinder |
| Steam Main Pipe |
| Condensate Recovery Unit |
| Compressed Air Supply System |
| Screw Air Compressor |
| Oil-Free Air Compressor |
| Refrigerated Dryer |
| Compressed Air Buffer Tank |
| CO₂ Supply System |
| Liquid CO₂ Storage Tank |
| CO₂ Vaporizer |
| CO₂ Buffer Tank |
| CO₂ Recovery System |
| CO₂ Recovery Unit |
| Foam Trap |
| Gas Bag |
| Washing Tower |
| CO₂ Compressor |
| After-Cooler |
| Deodorizer (Activated Carbon) |
| Dryer |
| Filters |
| CO₂ Condenser & Liquefier |
| Liquid CO₂ Storage Tank |
| Chiller |
| CO₂ Purification Unit |
| Deaerated Wate System |
| Deaerated Water Unit |
| High Concentrate Dilution System |
| Dilution Machine |
| Packaging System |
| Bottle Filling Line |
| Can Filling Line |
| Tinplate Can Filling Line |
| Keg Filling Machine |
| CO₂ Recovery System |
| Wastewater Treatment Unit |
| Rotary Bar Screen |
| Collection Tank |
| Sewage Pump |
| Hydro-Sieve |
| Equalization Tank |
| Dosing Pump |
| Lift Pump |
| UASB Reactor |
| Three-Phase Separator |
| Water Seal Tank |
| CASS Reactor |
| Blower |
| Sludge Thickener |

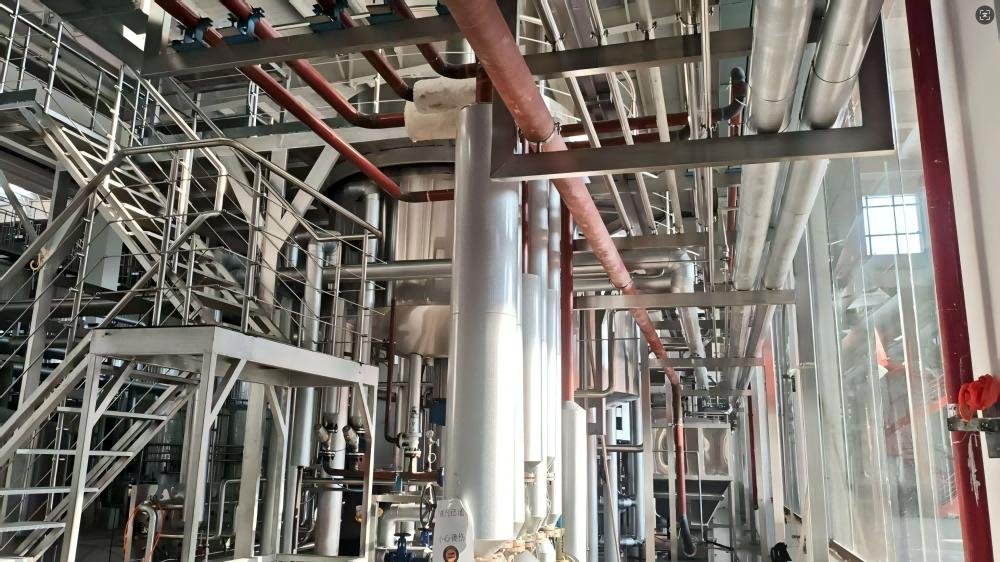

| Installation & Delivery |
| Transportation |
| On-site Fabrication |
| On-site Installation & Commissioning |
We provide comprehensive, turnkey solutions that cover the entire project lifecycle. Our services include:
·Facility Planning&Design
·Assistance with Approval Procedures
·Customized Process Engineering
·Equipment Design&Manufacturing
·Complete Plant Delivery&Commissioning
·Staff Training&Brewing Guidance
·Recipe Development&Optimization
In addition to large-scale industrial facilities, we have equipped countless craft microbreweries and brew pubs with high-quality, small-scale brewing systems.
Beyond equipment supply, we are committed to fostering community growth through our dedicated craft beer enthusiast platform, offering free technical services and support to professionals across the industry.
