The 500L Wine Fermentation Tank from Tiantai Company is designed to meet the diverse needs of modern wineries. Whether you are producing red wine, white wine, or fruit wine, this tank provides precise temperature control, excellent hygiene, and reliable fermentation performance.

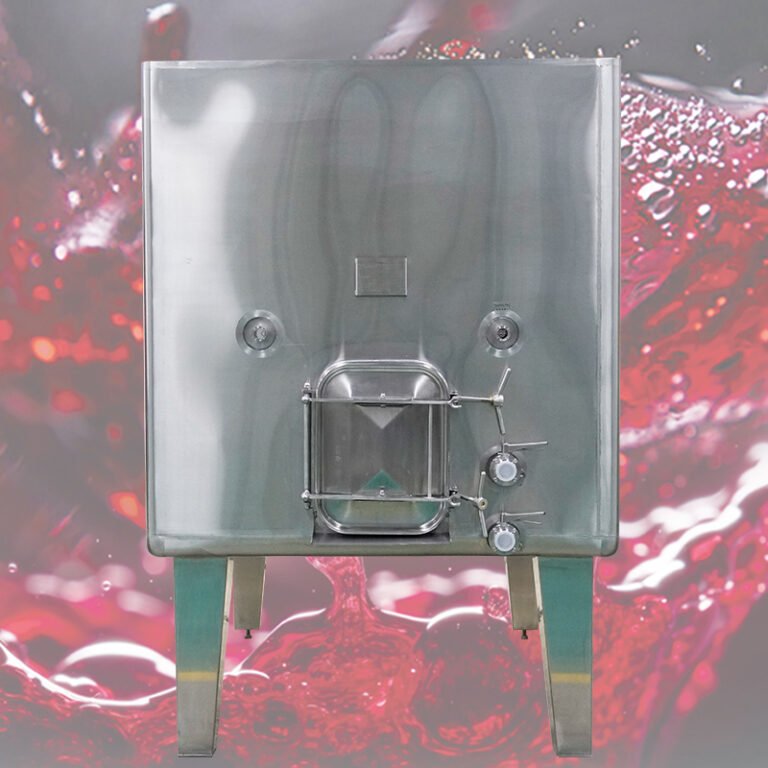

Perfect for Red Wine Fermentation

For red wine, fermentation is usually carried out with skins to extract color and tannins.
Tiantai’s red wine fermenters are available in square or open-top designs, allowing easy cap management, mixing, and cleaning.
The tank body is made of SUS304 stainless steel with optional cooling jackets to maintain the desired temperature during fermentation.

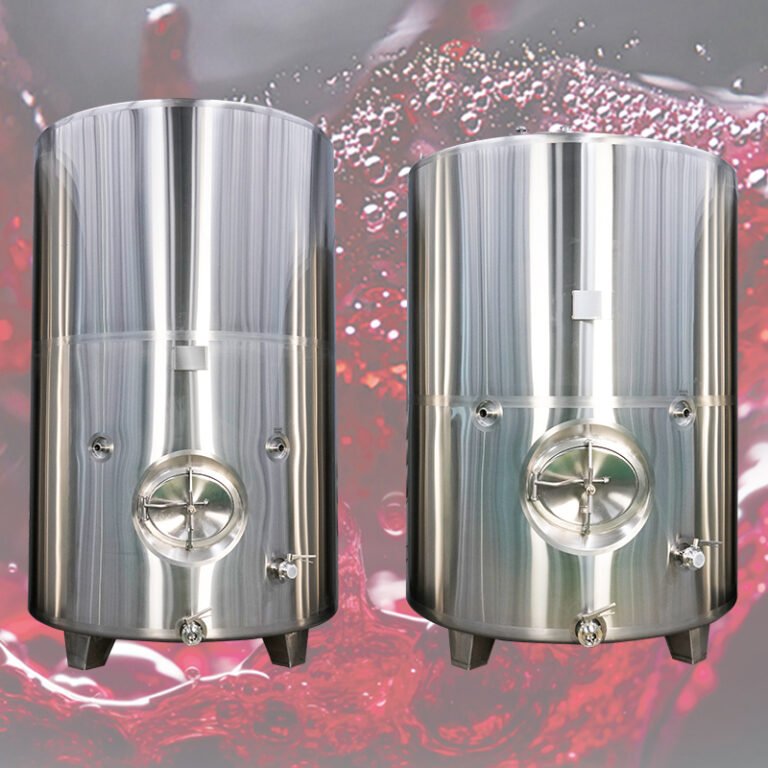

Ideal for White and Fruit Wines

For white wine or fruit wine fermentation, the tank is usually closed and fully jacketed, ensuring better temperature stability and aroma preservation.
Equipped with a dimple cooling jacket and optional insulation layer, it keeps the fermentation environment steady, reducing oxidation and maintaining flavor balance.
This design is also widely used for mango, strawberry, guava, and other fruit wines.

Key Features:

Material: Food-grade SUS304 stainless steel, internal finish Ra≤0.4μm for easy cleaning and hygiene.
Cooling Jacket: Dimple-type with precise glycol flow control for efficient heat exchange.
Insulation: Optional PU or rock wool layer for better temperature stability.
Structure Options:
Conical, sloped, or flat bottom
Top and side manway for easy access
CIP spray ball and pressure relief valve
Adjustable legs for stable installation

Technical Parameters

Feature	Specification
Capacity	500L
Material & Finish	SUS304 stainless steel, interior 2B sanitary finish (optional 8K mirror), polished 0.2–0.4 μm
Cooling System	Dimple jacket (bottom & side) with 35% glycol at −5°C, working pressure <2 bar
Tank Design	Conical top, sloped bottom (530mm / 420mm), top & side manholes
Sanitary Fittings	CIP spray balls, racking arm, sampling valve, CO2 blow-off, discharge arm, thermowell
Pressure & Leakage Test	Jacket: 5 bar/1h & 3.5 bar/48h; Tank: 4 bar/1h & 2.5 bar/48h
Legs & Support	4 SUS304 legs with braces, heavy-duty adjustable foot pads
Valves & Accessories	Tri-clamp / DIN connections, level tube, complete sanitary valves

Why Choose Tiantai Wine Tank?

√ Over 20 years of stainless steel fabrication experience
√ Proven quality from brewhouse to winery systems
√ Tailored solutions for wineries of all sizes
√ Global technical support and after-sales service

Bring precision, stability, and beauty to your wine making process with Tiantai’s professional wine fermentation tanks.
Contact Tiantai today for a quote or more details!
