Compact Can Filling and Seaming System for Craft Beverage Producers

This 200–300 cans per hour automatic canning line is designed for small-scale beverage producers seeking professional can packaging with minimal space and cost. It's suitable for carbonated products like craft beer, soda, sparkling water, and kombucha, and suitable different size aluminum cans.

Compact, efficient, and easy to operate, this system integrates washing, filling, and seaming in one body—ideal for breweries, start-up drink brands, and pilot-scale production.

Key Features

✔ Compact design fits small spaces
✔ Low energy & CO₂ consumption
✔ Consistent seaming quality with pneumatic control
✔ Made from food-grade stainless steel for durability and hygiene
✔ Easy integration into existing production or mobile canning setups

Integrated Functions

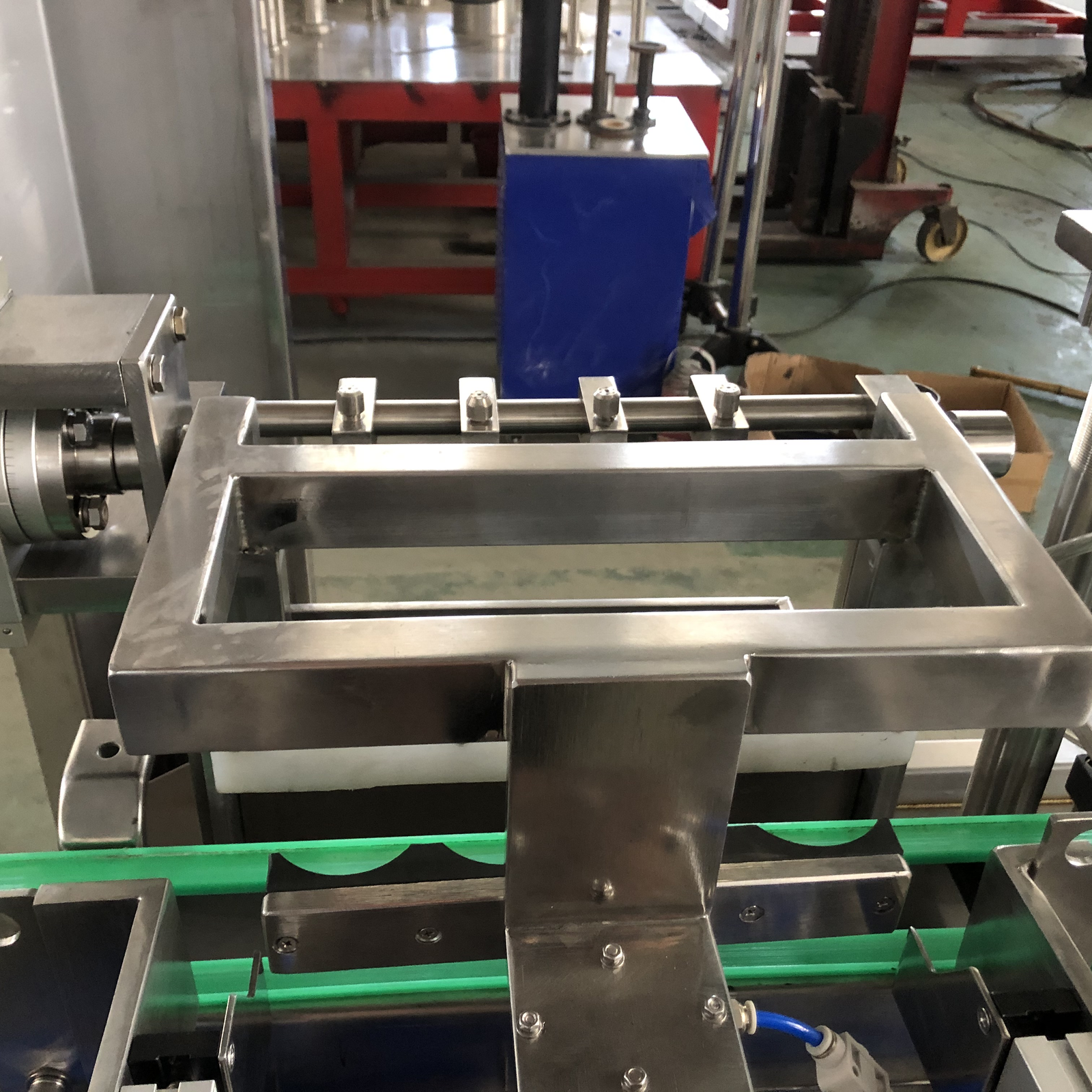

1. Can Rinsing Station

Equipped with 4 rinsing heads to clean empty cans before filling. Ensures hygienic packaging and better shelf life.

2. Filling Section

4 filling heads with precise level control. Suitable for lightly carbonated beverages. Maintains low oxygen pickup with optional CO₂ flushing.


3. Seaming Unit

1 can seaming head with high accuracy. Ensures smooth and tight seams for standard 202 lids.

Technical Specifications

Parameter	Details
Capacity	200-300 cans per hour (CPH)
Washing heads	4
Filling heads	4
Seaming heads	1
Can Size	330ml / 500ml (customizable)
CO2 Consumption	~0.8g/L
Air Consumption	0.5 m³/h
Filling Temperature	0°C to 4°C
Water Consumption	0.5m³/h
Dimensions	2000 x 1000 x 2400 mm

Optional Upgrades

✔ CO₂ pre-fill and post-fill flushing unit
✔ Automatic lid dispenser
✔ Date printing system (inkjet)
✔ Can dryer and labeling station
✔ Conveyor and accumulation table


Application

✔ Craft Beer
✔ Hard Seltzer
✔ Sparkling Water
✔ Carbonated Juices
✔ Kombucha

Ready to upgrade from manual canning?
Tiantai’s 200–500CPH line gives you a clean, compact, and cost-effective packaging solution.
Contact us today for a detailed quotation and layout proposal customized to your needs.
