800L Brewery Equipment

Nano Brewery Equipment

Brief introduction Of 800L Brewery Equipment

Nanobrewery system is suitable for small brewery business who supply fresh/craft beer within their own venue such as small bars, 20-100 sets restaurants etc. Usually the nanobreweries include more flavors of beer and sell beer with kegs or taps or directly from the fermentation tanks. To turnover the fermentation tank quickly, serving tanks are also needed.

Quick overview of 800L Brewery Equipment

Output/Brew	800L
Brew/day	1-2
Output/Week	1000L-8000L/week based on different configuration
Electric Supply	3phase/380(220, 415,440…)v/50 (60)Hz
Heating Source	Electric (Optional Direct fire/steam)
Area Request	>30M2
Brewmaster	1
Mashing method	Infusion,multi-step infusion

Main configuration of 800L Brewery Equipment

Main brewing system	Components	Main specification

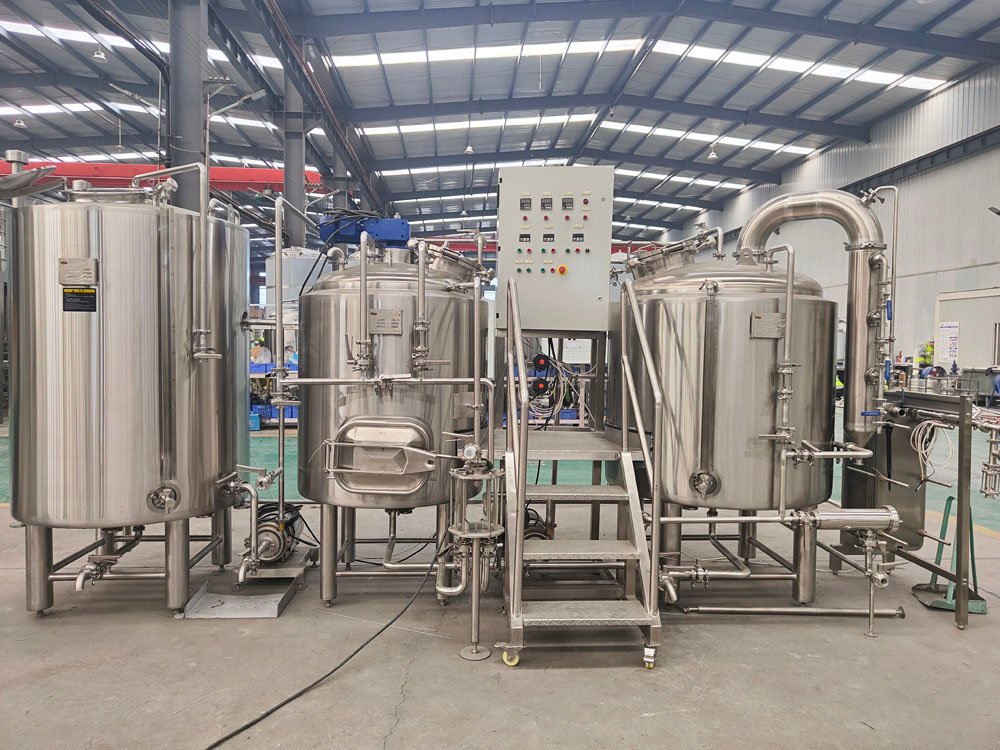

Brewhouse unit	Mash/lauter tun	800L 25% head space, False bottom, Spent grain outlet CIP, sight glass.
	Kettle/whirlpool tun	800L 30% head space, Electric heating with insulation: 54KW Steam condenser, Wort outlet and trub outlet Tangential inlet.
	Wort pump	3T/hr, Sanitary
	Hot liquor pump	3T/hr, Sanitary
	Plate heat exchanger	8m2 Two stages Connected with wort aeration device Disassemble
	Work platform	Disassemble, Adjustable
	OPTIONAL	Hopback Pneumatic valve Wort flow meter Sterile air compressor

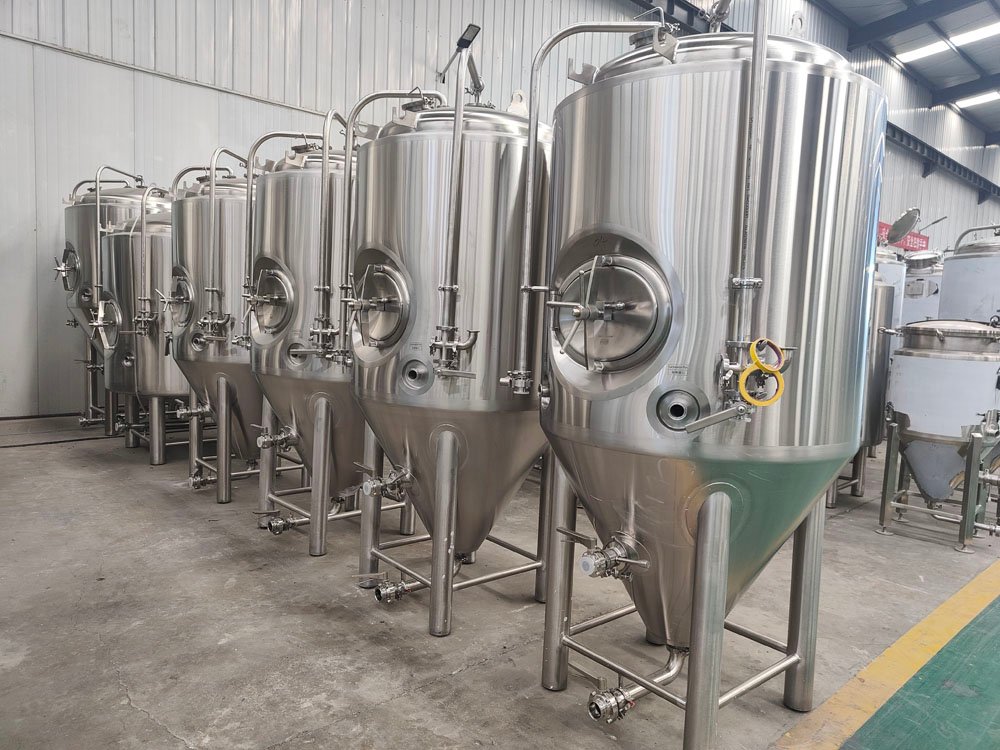

Fermentation unit	Fermentation tank	800L/1600L 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Top/side manway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges
Maturation/Storage (OPTIONL)	Bright beer tank	800L/1600L 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Top/side manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks
Glycol cooling system	Glycol cooling tank	Thermowell Top manway CIP arm and spray ball 360 degree of coverage Thermowell
	Cold liquor tank (OPTIONAL)	Top manway CIP arm and spray ball 360 degree of coverage Visual level sight glass Cooling jackets
	Chiller	Second generation Freon R410A, R404A
	Glycol water pump and piping
Controlling unit	Brewhouse/cellar control panel	Temperature monitoring& controlling Pump on/off control VFD control
Cleaning unit	Portable CIP Pump	3T/hr, Sanitary

Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs
Customized requirement acceptable

Related cases

So far, we have supplied high-quality brewery equipment to over 2,600 breweries across 106 countries and regions — and are growing by at least 200 clients every year.
Each project reflects our dedication and expertise, as well as the careful consideration and trust of our customers.
Below are a few selected cases. To explore more inspiring real-world examples, please visit our Cases page via the navigation menu.

1000L Beer Brewing System by Tiantai--Kweza Craft Brewery in Rwanda

1000L Brewery Equipment in Australia – Frankston Brewhouse

1000L Brewery Equipment in Australia – Noodledoof Brewing Co.

Why TIANTAI?

As a leading brewery equipment manufacturer from China, TIANTAI offers complete turnkey solutions—from brewhouse systems and fermentation tanks to filling lines and automation controls. We support every project with custom design, installation, and training services.

Equipped with advanced manufacturing and precision testing facilities, our production meets ISO 9001, CE, and EAC standards, and holds over 20 patents—ensuring reliable, high-quality output.

Trusted by more than 2,600 breweries across 106 countries, TIANTAI delivers professional, cost-effective brewing systems that help brewers everywhere craft their perfect beer.
TIANTAI — Brew Smart, Brew with Trust.
