Key Features of 60,000 hL/Year Brewery Equipment
- High Production Capacity ā Brewery Equipment Designed for an annual output of 60,000 hL, supporting multiple brewing cycles per day to meet commercial brewery demands.
- Complete Brewing Solution ā Integrates malt milling, brewhouse, fermentation, bright beer tanks, glycol cooling, CIP system, and control system for a fully functional brewery.
- Flexible Layout ā Modular design allows easy installation and future expansion, adaptable to different brewery floor plans.
- High-Quality Materials ā All wort-contact parts are made of SUS304 or SUS316 stainless steel, ensuring hygiene, durability, and compliance with international standards.
- Efficient Process Control ā PLC-based control system with temperature, pressure, and flow monitoring for precise, automated, and consistent brewing.
- Energy Efficient ā Optimized heat recovery and glycol cooling systems reduce energy consumption while maintaining consistent beer quality.
- User-Friendly Operation & Maintenance ā Ergonomic design with easy access to all components, simple operation, and straightforward cleaning with CIP system.
Brewery Equipment Configuration
Malt Milling System
The malt milling system in brewery equipment system prepares malt for the brewing process by crushing the grains to the optimal particle size while preserving the husk structure. This helps improve mash efficiency and wort filtration during the lautering process. The system is designed for stable and efficient operation to support continuous brewery production.
Key Components
- Roller Malt Mill
- Flexible Auger
- Grist Silo

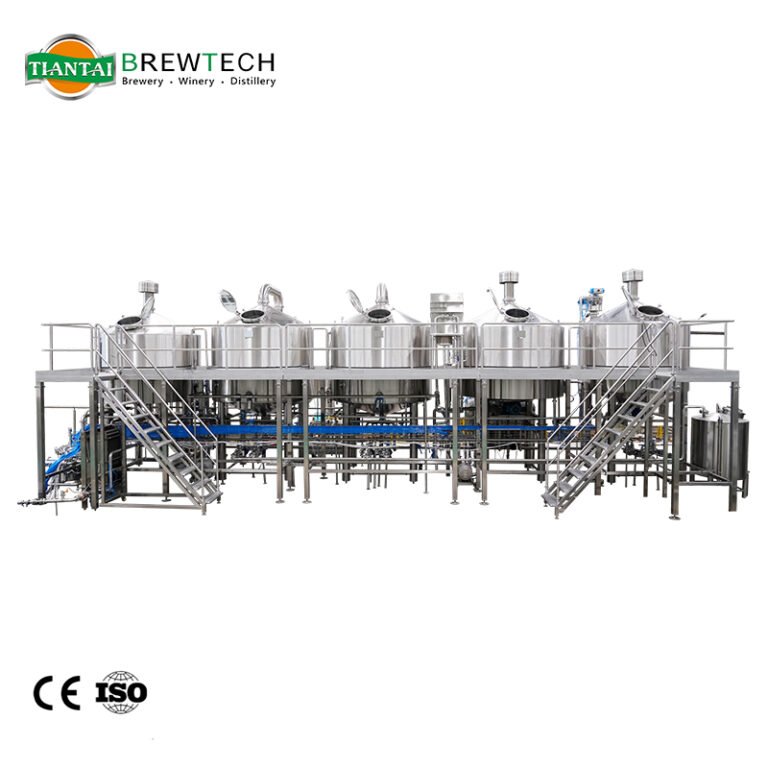

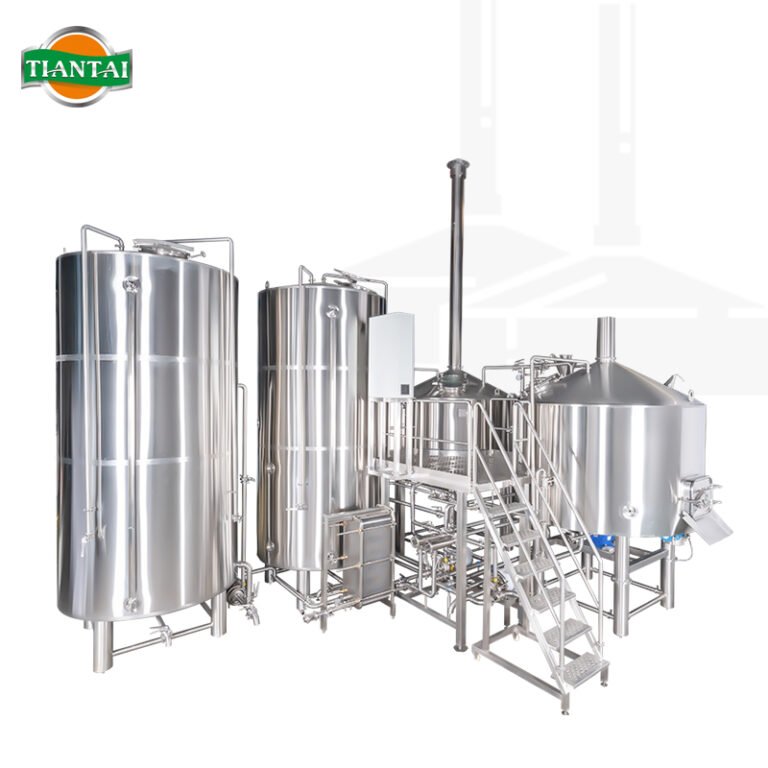

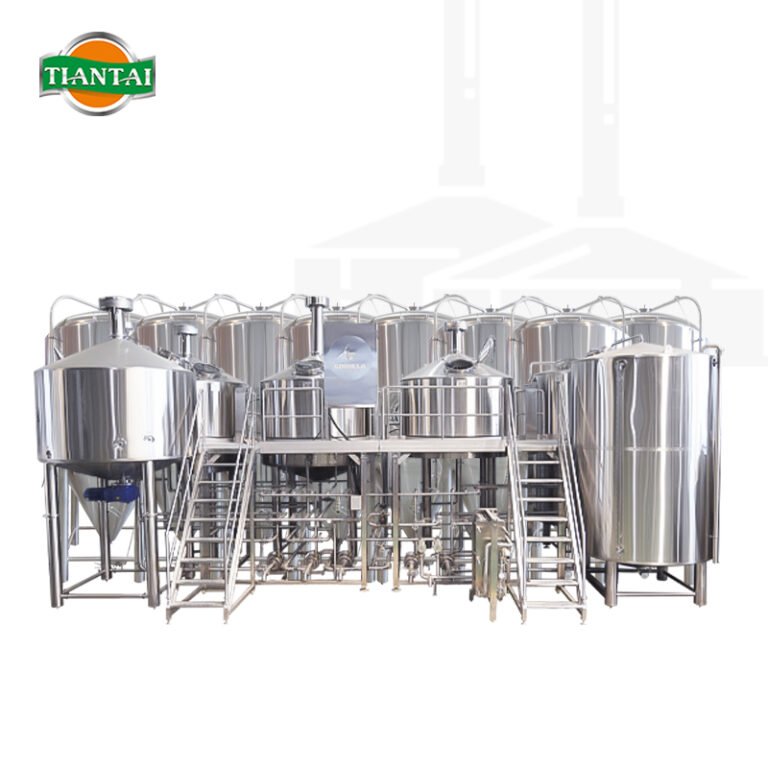

Brewhouse System
The brewhouse is the core of the brewery, responsible for mashing, lautering, boiling, and whirlpooling. Designed for high efficiency and consistent wort quality, the brewhouse supports multiple brewing cycles per day to meet the annual production capacity.
Key Components
- Mash Tun
- Lauter Tun
- Kettle Tun
- Whirlpool Tun
- Hot Liquor Tank
- Wort Pump and Heat Exchanger
- Brewhouse Platform and Piping

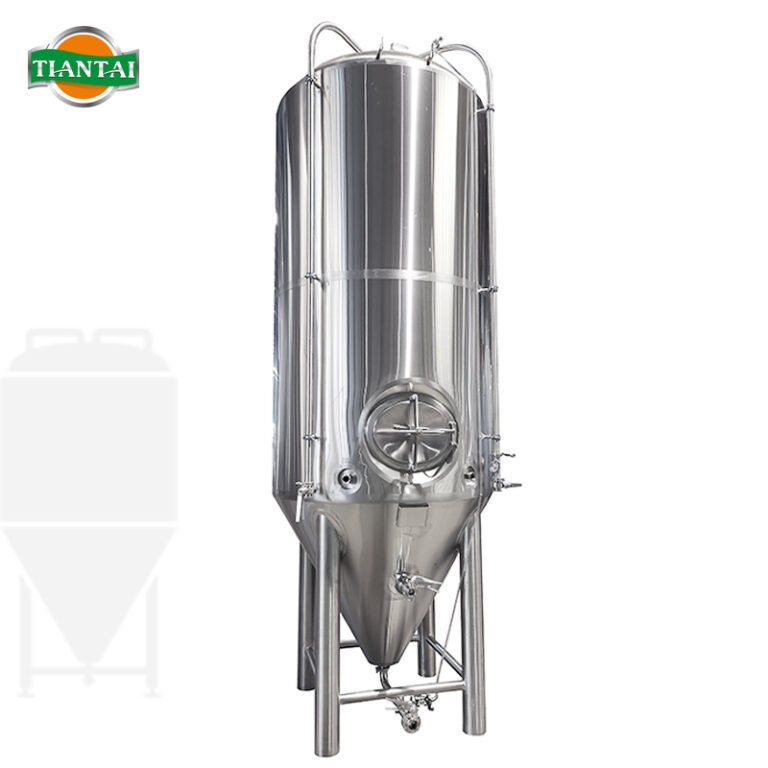

Fermentation System
The fermentation system is designed for controlled fermentation and maturation of beer. Equipped with efficient cooling jackets and precise pressure control, the system ensures stable fermentation conditions and consistent beer quality.
Key Components
- Conical Fermentation Tanks
- Brite Tanks
- Dry Hopping Port (Optional)
- Sample Valve and Pressure Gauge
- Carbonation Stone (Optional)
- Temperature and Pressure Control System
Glycol Cooling System
The glycol cooling system provides the required cooling capacity for fermentation tanks and wort cooling. It maintains stable fermentation temperatures and ensures efficient heat transfer throughout the brewing process.
Key Components
- Glycol Chiller
- Glycol Water Tank
- Circulation Pump
- Insulated Glycol Piping
- Temperature Control Valves
CIP Cleaning System
The CIP (Clean-In-Place) system allows efficient cleaning and sanitation of brewery tanks and pipelines without disassembly. It helps maintain high hygiene standards and improves operational efficiency.
Key Components
- Alkali Tank
- Acid Tank
- Sanitary Pump
- CIP Control Valves
- CIP Piping System
Control System
The control system manages and monitors the operation of the brewery equipment. Depending on the breweryās requirements, the system can be configured with semi-automatic or fully automatic PLC control to ensure reliable and efficient brewing operations.
Key Components
- PLC Control Cabinet
- Touch Screen Interface
- Temperature and Pressure Sensors
- Flow Meters
- Automatic Control Valves
Bottling System
The bottling system provides efficient and hygienic beer packaging. It ensures accurate filling levels and minimizes oxygen pickup to preserve beer freshness and quality.
Key Components
- Bottle Rinsing Machine
- Bottle Filling Machine
- Crown Capper
- Bottle Conveyor
- Labeling Machine (Optional)
- Bottle Pasteurizer (Optional)
Optional Configurations
To meet different production requirements, the brewery system can be equipped with additional equipment:
- Hop Gun / Hop Dosing System
- Yeast Propagation System
- Automatic Malt Handling System
- Beer Filtration System
- Pasteurization System
- Canning Line
- Kegging Line
Why Tiantai?
Professional Brewery Equipment Manufacturer
Tiantai has years of experience in designing and manufacturing brewery equipment for craft and commercial breweries worldwide.
Complete Turnkey Brewery Solutions
We provide full brewery solutions including brewhouse, fermentation tanks, cooling systems, packaging lines, and auxiliary equipment.
High-Quality Manufacturing
All equipment is produced using high-quality stainless steel with strict quality control to ensure durability, safety, and reliable performance.
Customized Brewery Design
Our engineering team provides customized equipment configuration and brewery layout design based on your production goals and site conditions.
Reliable Global Support
We support customers worldwide with installation guidance, technical training, and after-sales service to ensure smooth brewery operation.
Cost-Effective Solutions
With in-house manufacturing and long-term supply chain partners, we provide high-quality brewery equipment at competitive prices.
If you are planning a 60,000 hL brewery project, feel free to contact our team for professional consultation and customized brewery solutions.
