Main configuration of 500L brewery equipment

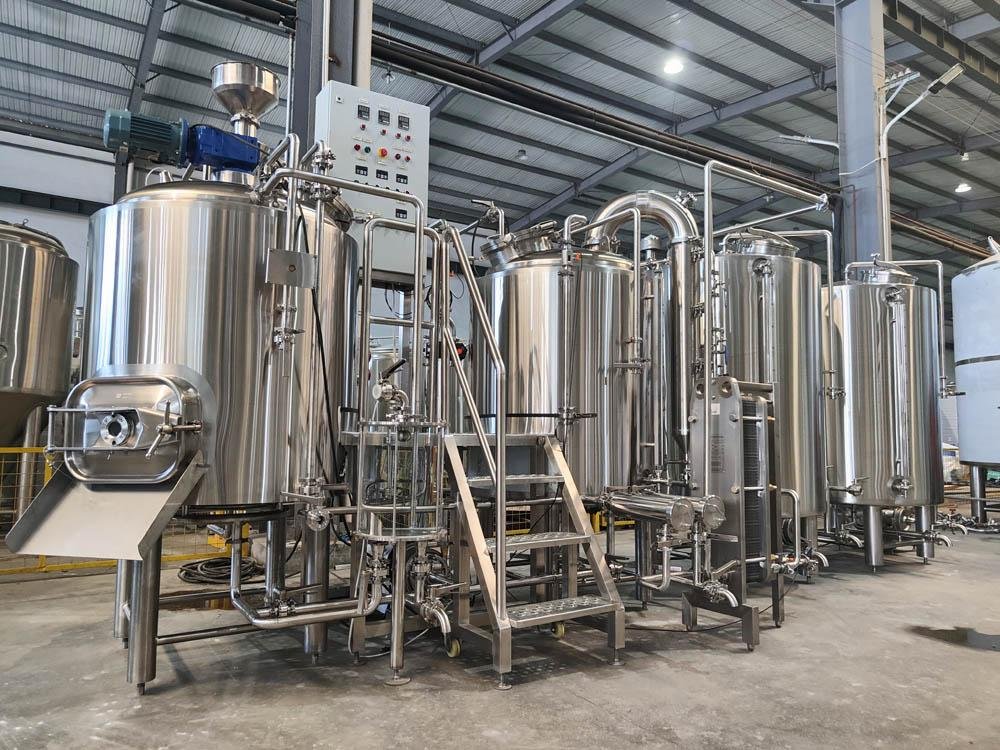

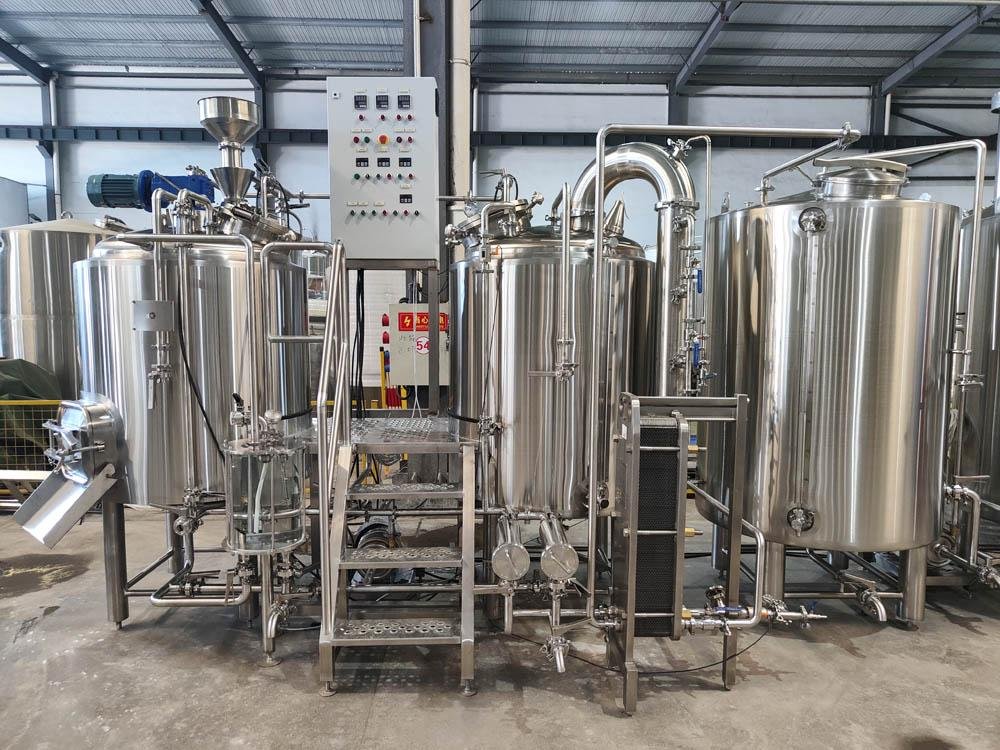

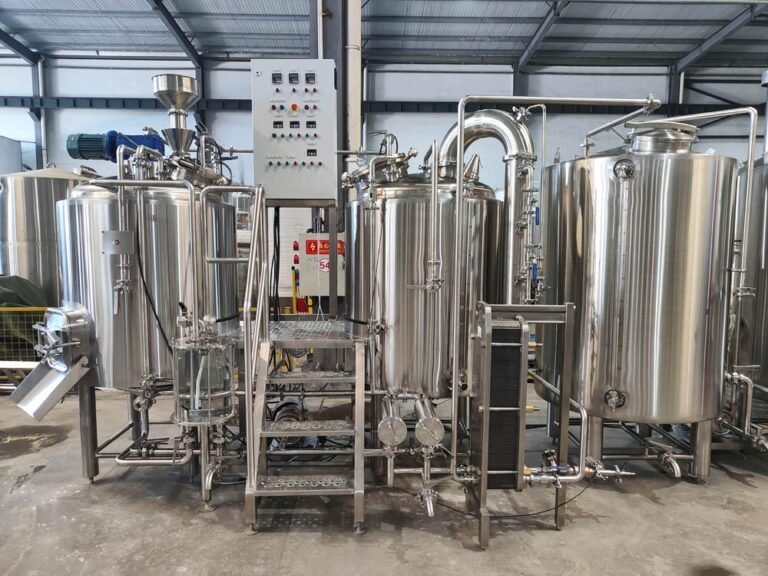

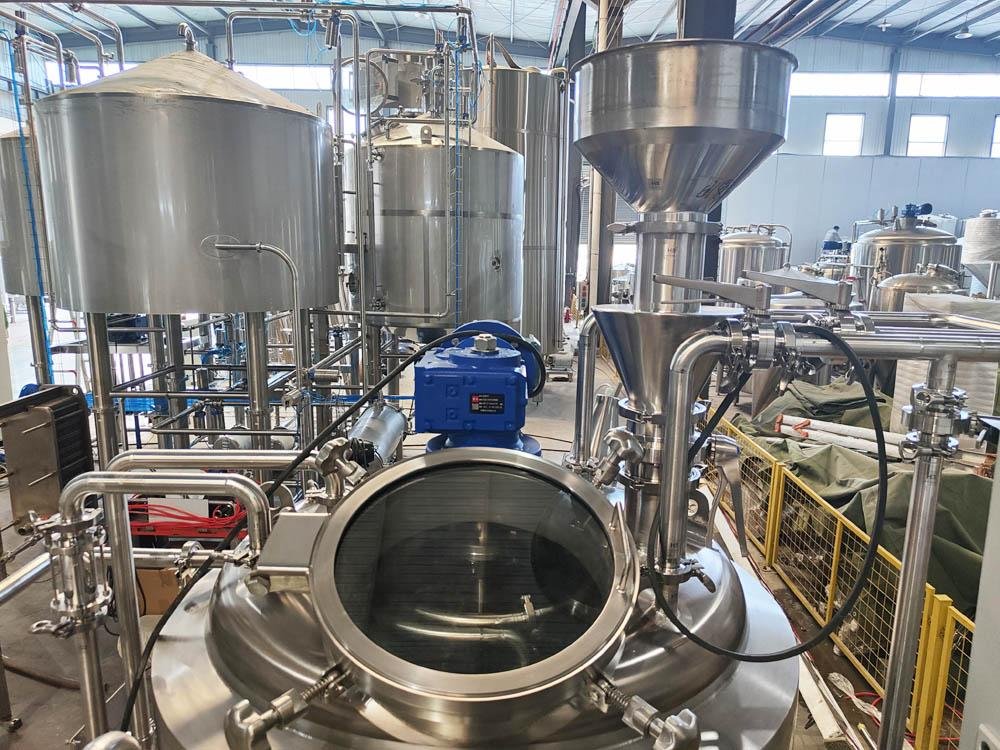

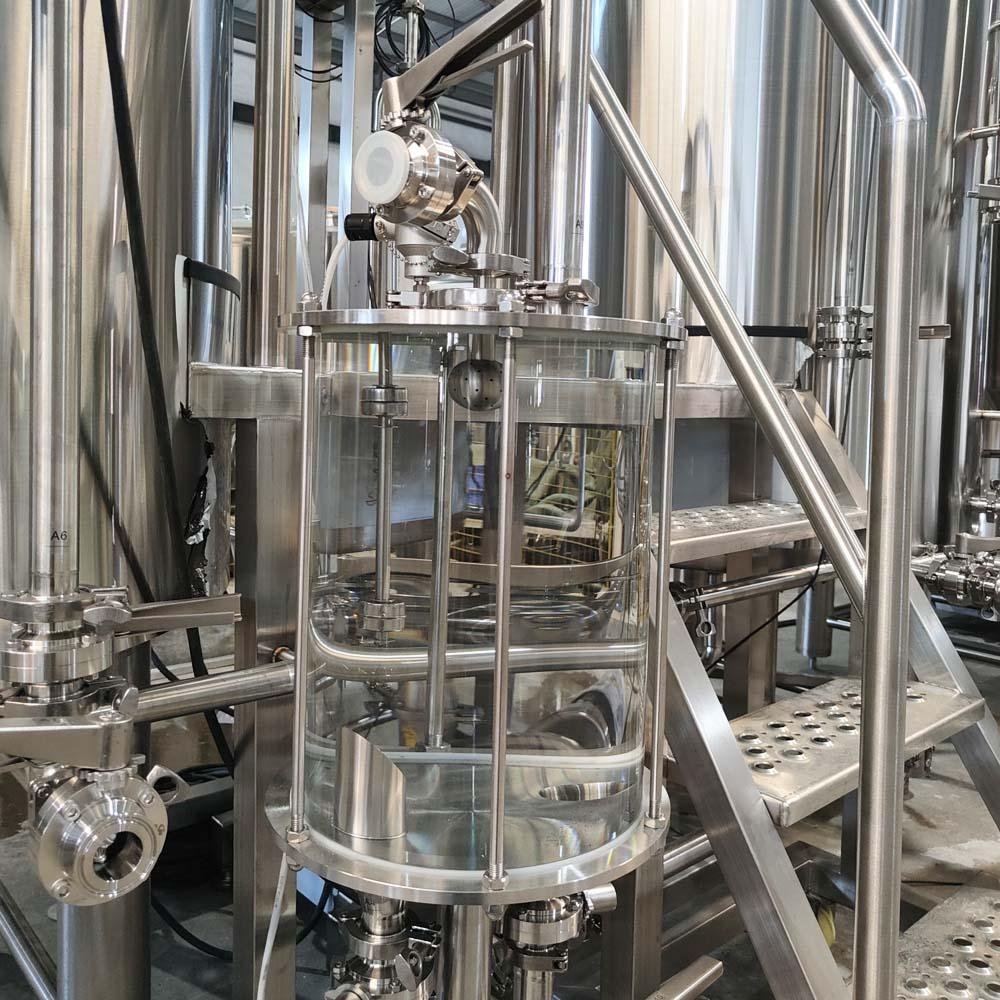

| Main brewing system | Components | Main specification |
| Brewhouse unit | 500L Mash/lauterĀ tun | 500L 25% head space Steam heatingĀ with insulation False bottom Spent grain outlet CIP, sight glass |
| 500L Kettle/whirlpoolĀ tun | 500L 40% head space Steam heatingĀ with insulation Steam condenser Wort outlet and trub outlet Tangential inlet |
|

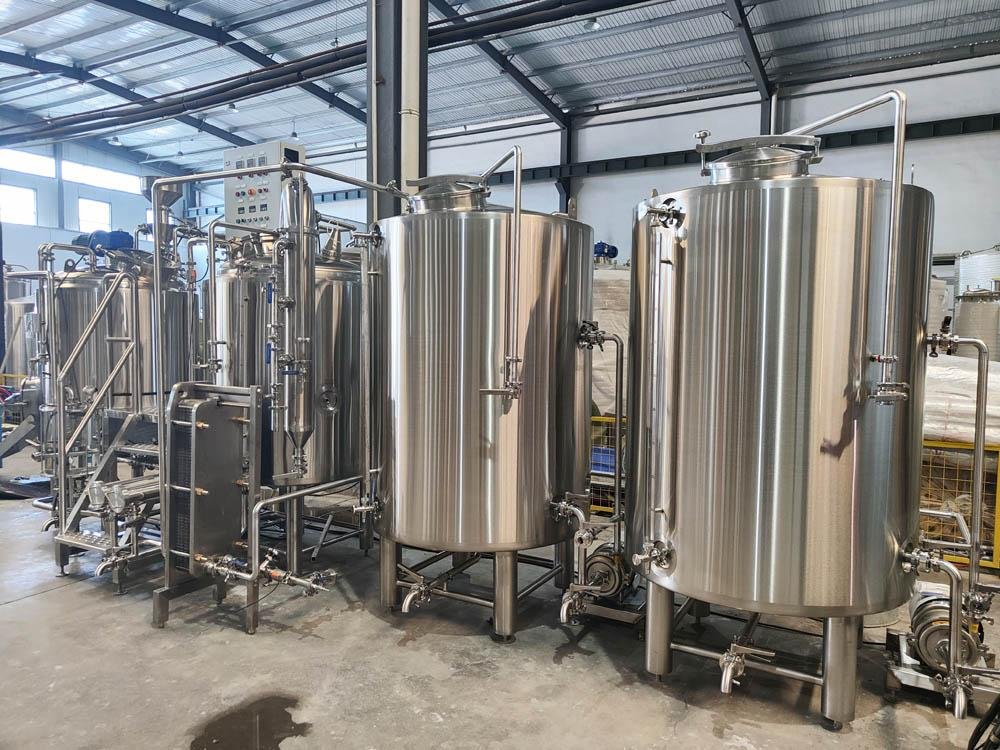

| 1000L Hot Liquor tank | 1000L 20% head space, Steam heatingĀ with insulation Circulation port Recycle port WaterĀ outlet and trub outlet |
|
| 1000L ColdĀ Liquor tank | 1000L 20% head space, Glycol cooling with insulation Circulation port WaterĀ outlet and trub outlet |
|

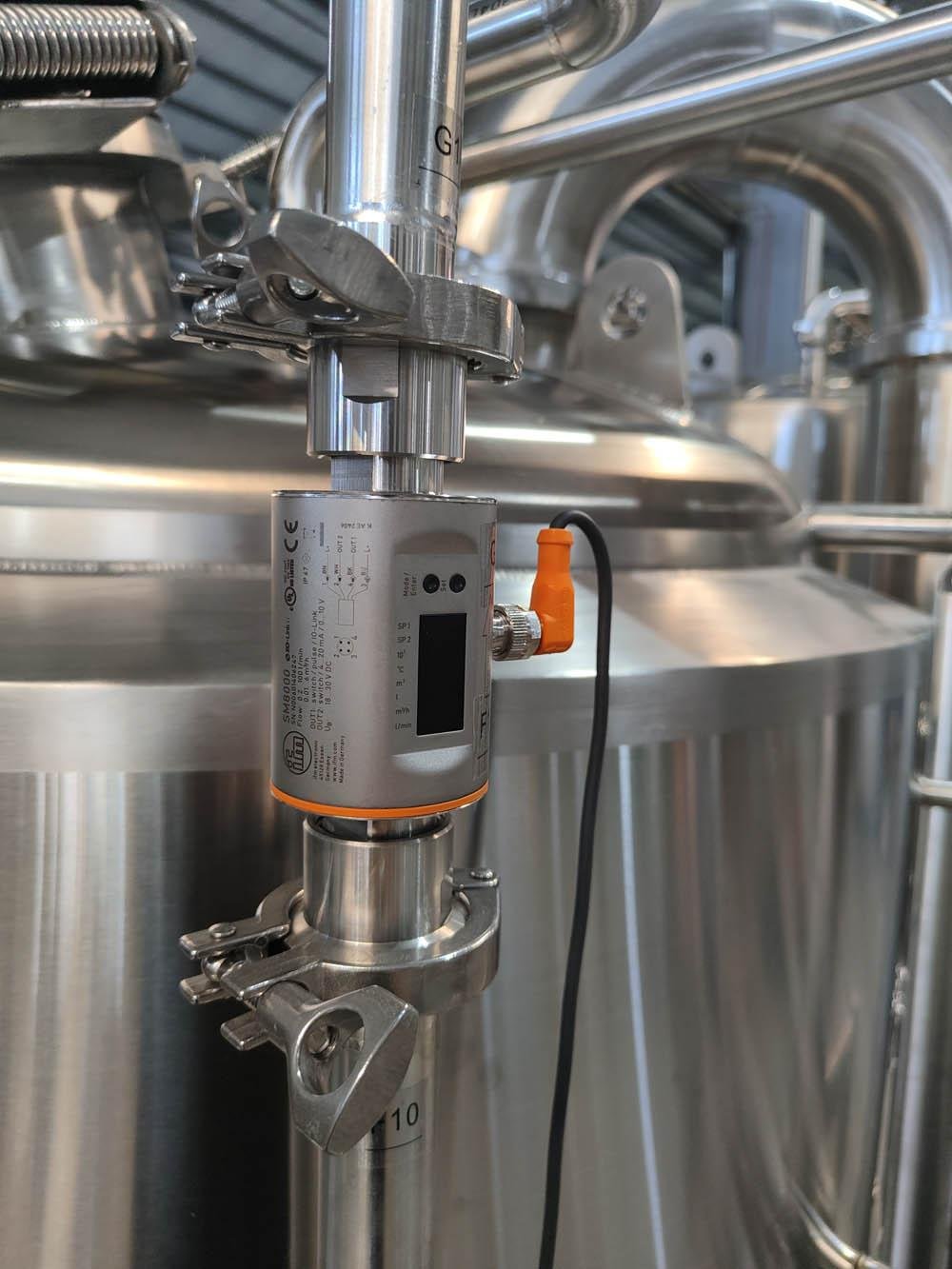

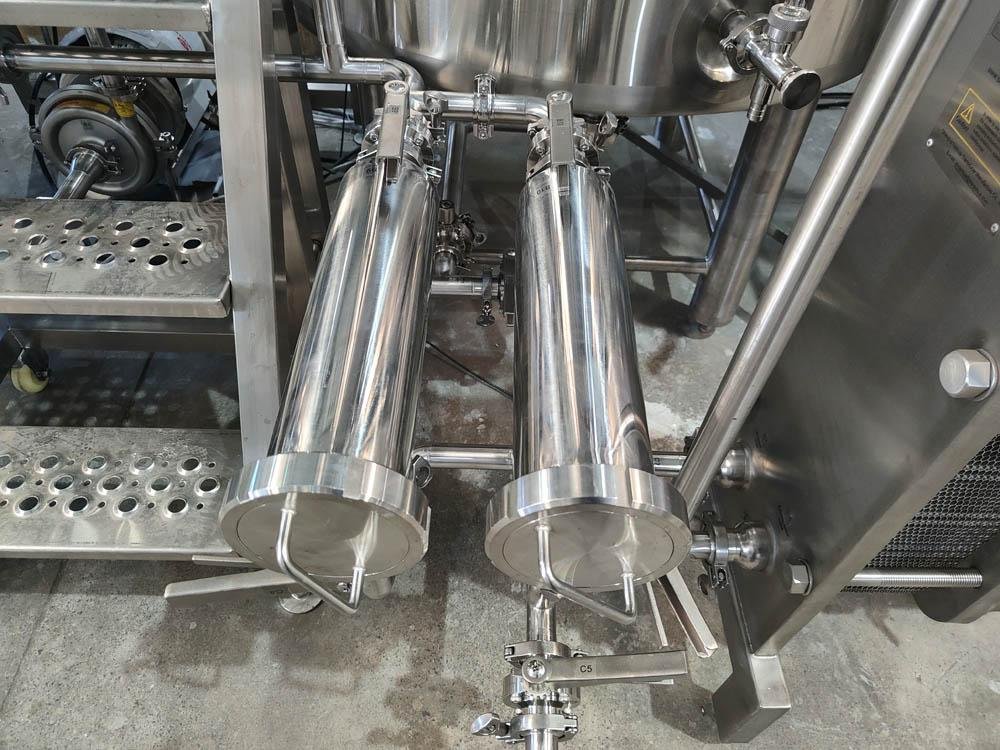

| Wort pump | 3T/hr, Sanitary | |
| Hot waterĀ pump | 3T/hr, Sanitary | |
| Cold water pump | 3T/hr, Sanitary | |
| Plate heat exchanger | 6m2 Single stage Connected with wort aeration device Disassemble |
|
| Work platform | Disassemble, Adjustable |
|

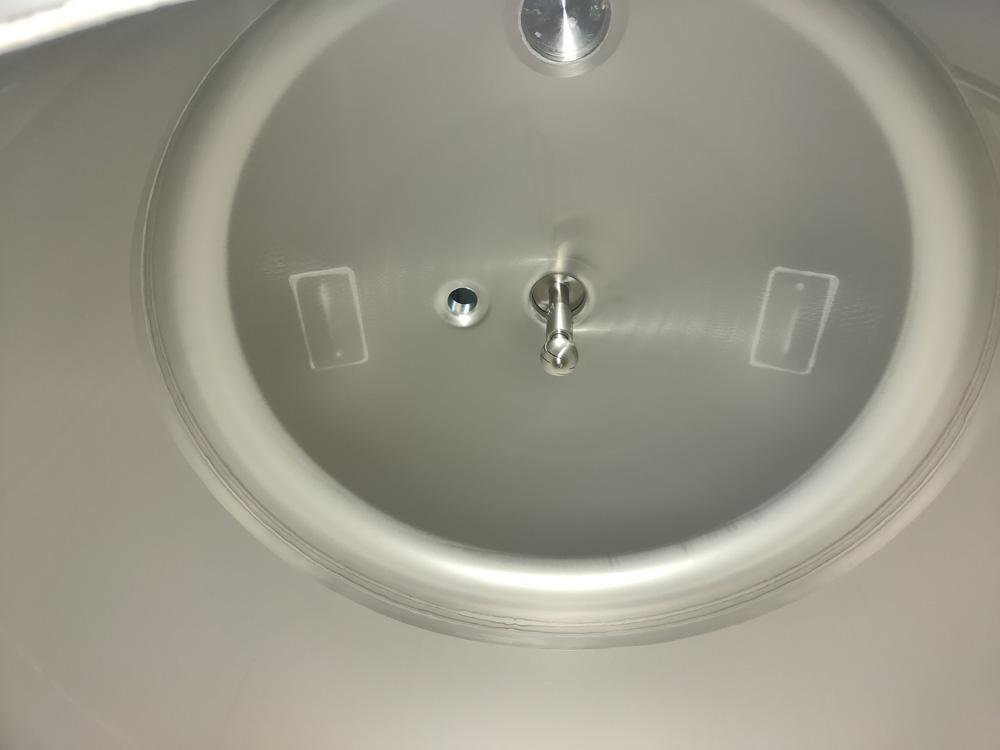

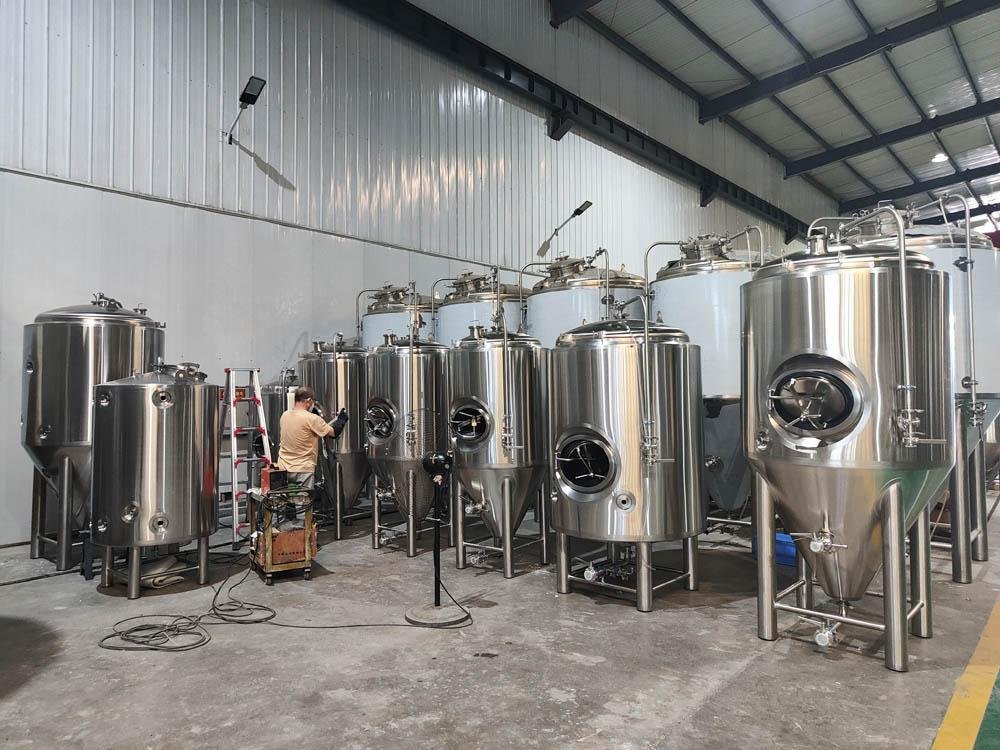

| Fermentation unit | Fermentation tank | 3x500L+2x1000L 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Topmanway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges |
| Maturation/Storage | Bright beer tank | 1x500L+1x1000L 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Top manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks |
| Glycol cooling system | 500L Glycol cooling tank | Thermowell Top manway CIP arm and spray ball 360 degree of coverage Thermowell |
| 2x3HP Chiller | Second generation Freon R410A |
|
| Glycol water pump and piping | Ā PPR Main Pipe and PEX Branch Pipe | |
| Controlling unit | Brewhouse and cellarĀ control panel | Temperature monitoring& controlling Pump on/off control VFD control |
| Cleaning unit | Portable CIP Pump | 3T/hr, Sanitary |
Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs
Customized requirement acceptable
