200L Brewery Equipment

Nano Brewery Equipment

Brief introduction Of 200L Brewery Equipment
Nanobrewery system is suitable for small brewery business who supply fresh/craft beer within their own venue such as small bars, 100-300 sets restaurants etc. Usually the nanobreweries include more flavors of beer and sell beer with kegs or taps or directly from the fermentation tanks. To turnover the fermentation tank quickly, serving tanks are also needed.

Quick overview of 200L Brewery Equipment

Output/Brew	200L
Brew/day	1-2
Output/Week	200L-2000L/week based on different configuration
Electric Supply	3phase/380(220, 415,440…)v/50 (60)Hz 1phase/380(220, 415,440…)v/50 (60)Hz
Heating Source	Electric (Optional Direct fire/steam)
Area Request	>20M2
Brewmaster	1
Mashing method	Infusion,multi-step infusion

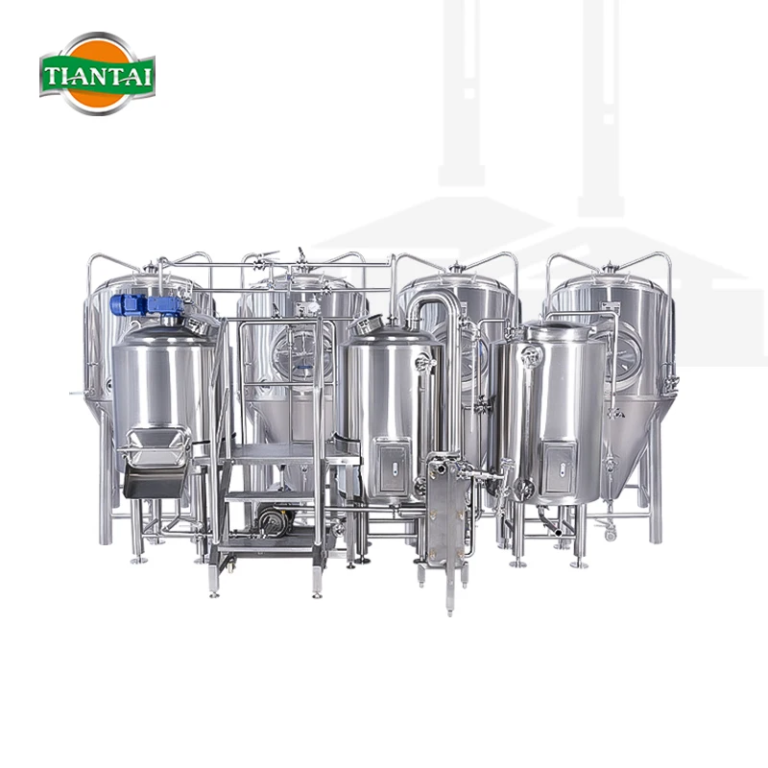

Main configuration of 200L Brewery Equipment

Main brewing system	Components	Main specification
Brewhouse unit	Mash/lauter tun	200L 25% head space, False bottom, Spent grain outlet, CIP, sight glass
	Kettle/Whirlpool tun	200L 30% head space, Electric heating with insulation: 18KW Steam condenser, Wort outlet and trub outlet Tangential inlet
	Wort pump	3T/hr, Sanitary
	Hot liquor pump	3T/hr, Sanitary
	Plate heat exchanger	4m2 Two stages Connected with wort aeration device Disassemble
	Work platform	Disassemble, Adjustable
	OPTIONAL	Wort grant Hopback Hopper Pneumatic valve Wort flow meter Sink Sterile air compressor

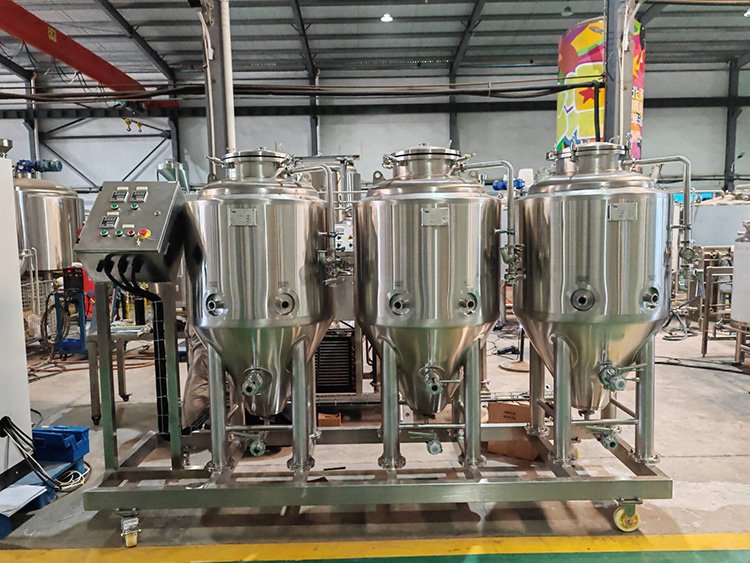

Fermentation unit	Fermentation tank	200L/ 400L 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Top manway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges
Maturation/Storage (OPTIONL)	Bright beer tank	200L/ 400L 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Top manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks
Glycol cooling system	Glycol cooling tank	Thermowell Top manway CIP arm and spray ball 360 degree of coverage Thermowell
	Chiller	Second generation Freon R410A, R404A
	Glycol water pump and piping
Controlling unit	Brewhouse/cellar control panel	Temperature monitoring& controlling Pump on/off control VFD control
Cleaning unit	Portable CIP Pump	3T/hr, Sanitary

Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
Customized requirement acceptable

Related cases

So far, we have supplied high-quality brewery equipment to over 2,600 breweries across 106 countries and regions — and are growing by at least 200 clients every year.
Each project reflects our dedication and expertise, as well as the careful consideration and trust of our customers.
Below are a few selected cases. To explore more inspiring real-world examples, please visit our Cases page via the navigation menu.

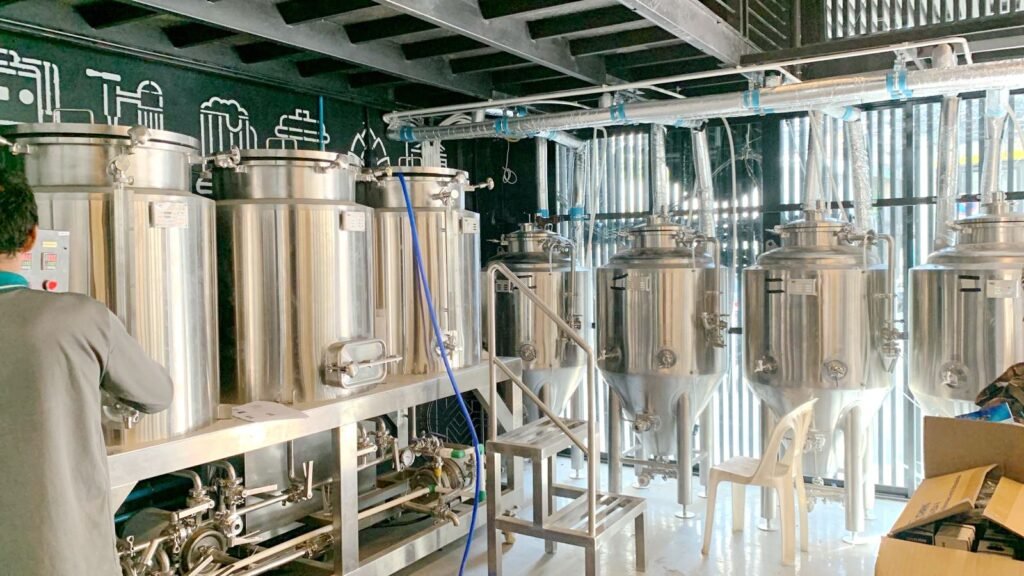

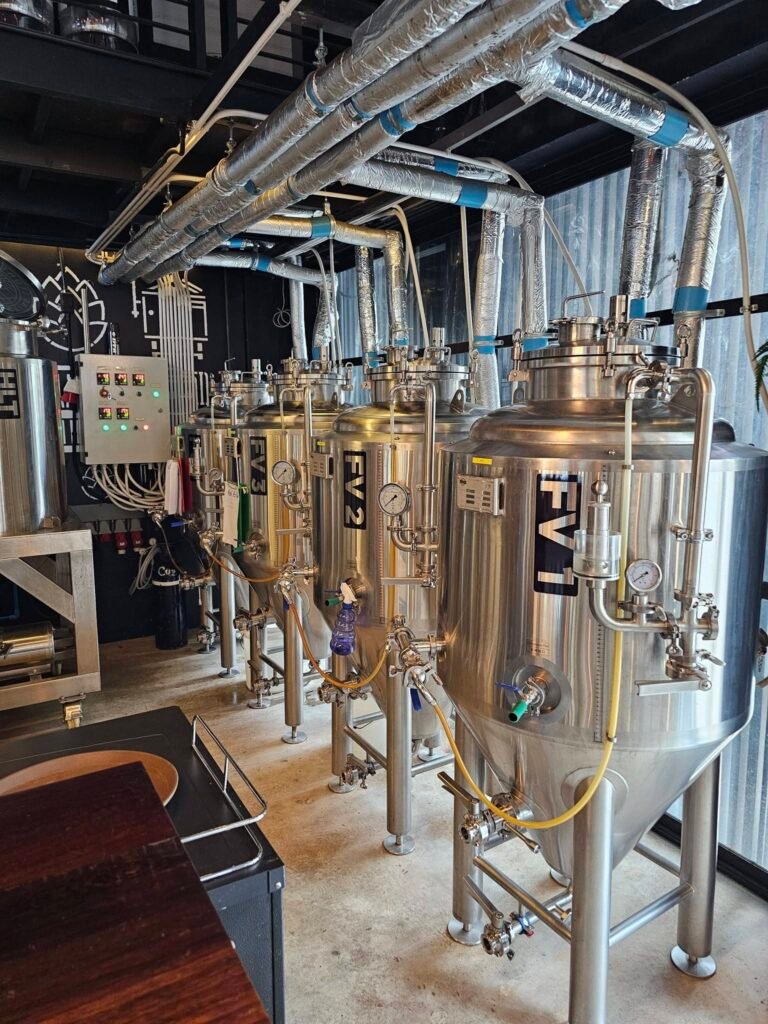

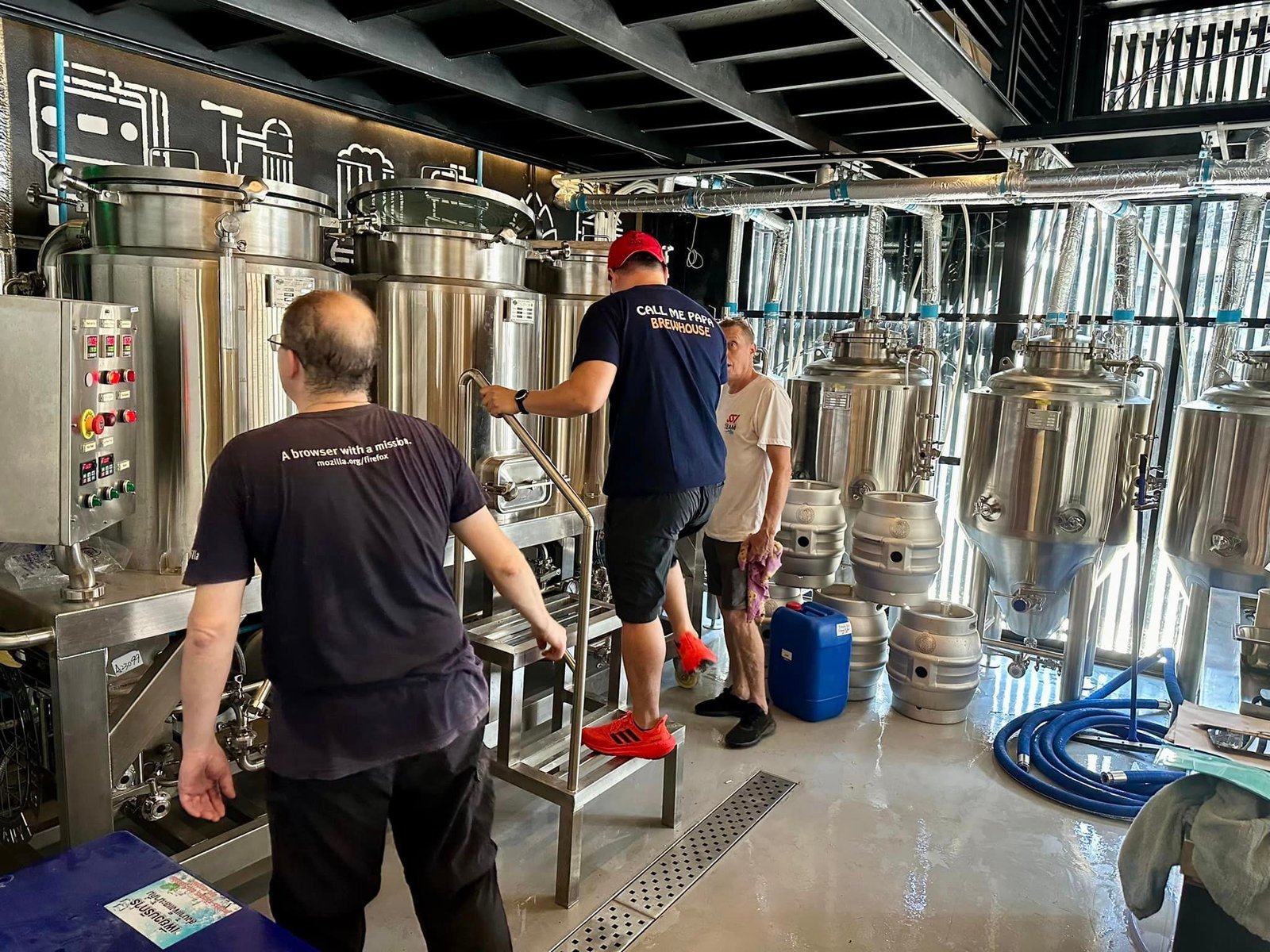

200L Beer Brewing System Ready for Installation In Brisbane, Austrlia

200L Craft Brewery Equipment in Yokohama, Japan-Urashima Brewery

300L Brewery Project for ANTELOPE BREWERY in Japan

Why TIANTAI?

As a leading brewery equipment manufacturer from China, TIANTAI offers complete turnkey solutions—from brewhouse systems and fermentation tanks to filling lines and automation controls. We support every project with custom design, installation, and training services.

Equipped with advanced manufacturing and precision testing facilities, our production meets ISO 9001, CE, and EAC standards, and holds over 20 patents—ensuring reliable, high-quality output.

Trusted by more than 2,600 breweries across 106 countries, TIANTAI delivers professional, cost-effective brewing systems that help brewers everywhere craft their perfect beer.
TIANTAI — Brew Smart, Brew with Trust.
