200L Brewery Equipment – Professional Recipe Development & Scale-Up

Pilot Beer Brewing Equipment

The 200L Brewery Equipment is designed for craft brewers, pilot breweries, and R&D teams who require a professional, pilot-scale brewing system for recipe development, process testing, and small-batch production.

Item	Specification
Brewhouse Volume	200L per batch
Application	Pilot brewing, recipe development, small-batch production
Brewhouse Configuration	2-vessel, 3-vessel or 4-vessel system (optional)
Heating Method	Electric or steam heating
Control System	Semi-automatic or PLC control (optional)
Power Supply	Customized according to local standards
Suitable Users	Craft breweries, brewpubs, R&D labs, startup breweries

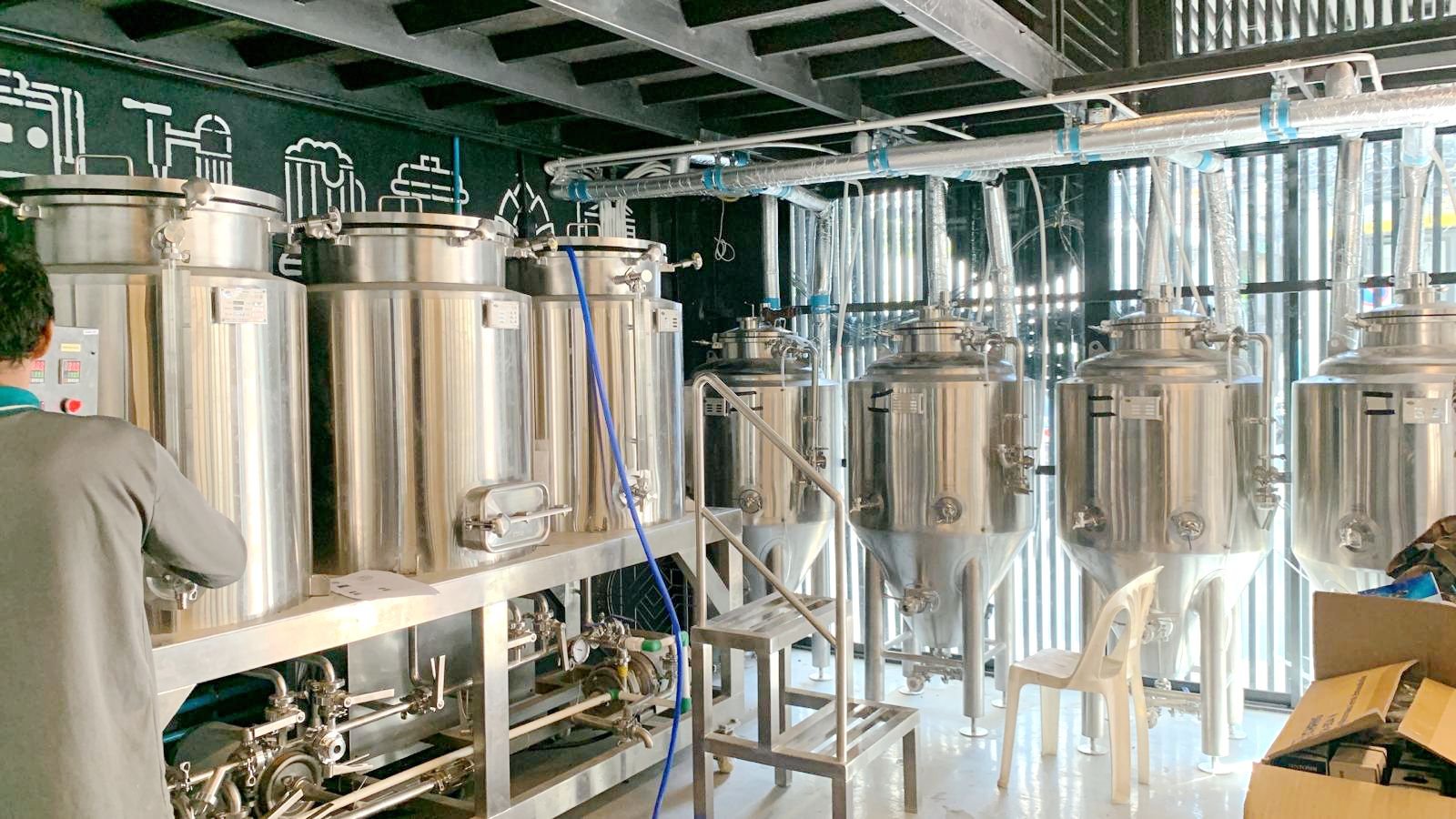

This 200L brewery equipment features a two-vessel brewhouse with dedicated HLT, combined with a complete fermentation and glycol cooling system.
It is designed for recipe testing, pilot brewing, process validation, and small-batch production, while closely replicating commercial brewing operations.

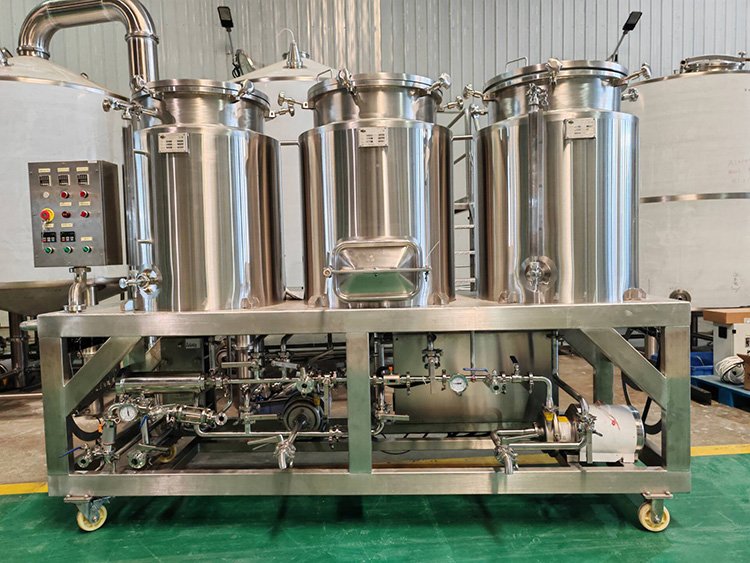

200L Brewery Equipment-Brewhouse

This is a 200L 2-vessel brewhouse, which is the classic combination of mash/lauter tun+kettle/whirlpool tun+hot water tank.

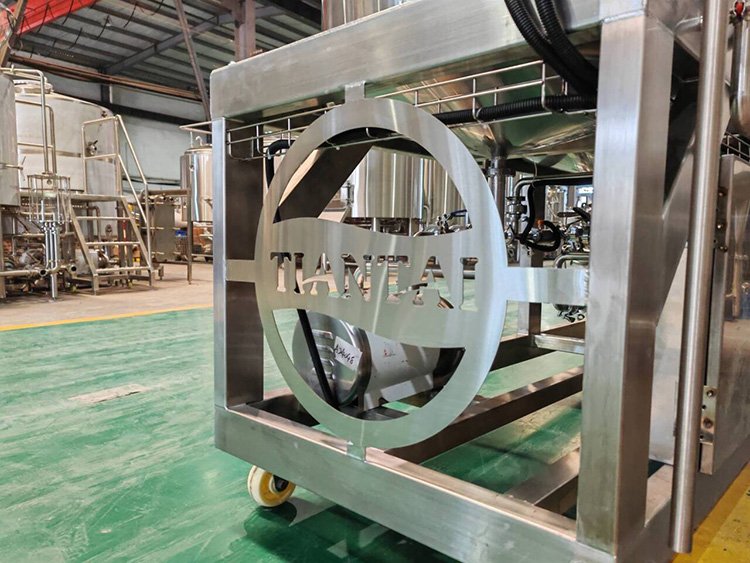

The whole system is designed and installed on a portable trolley with four wheels for the convenience of moving, you can feel free to brew beer and put it anywhere you want after the brewing process.
Top-opened glass manholes are easy for observing and operating.
The white box on the very left is the control panel, which can be customized into this painting or completely stainless steel one for your preference.

200L Brewery Equipment-Fermenter

Here are the fermenters put on the other trolley, the number of fermenters can be customized for your requirements, it could be one or two or three, four, usually depend on the types of beer you want to brew.
Although this is a pilot brewery system, all the components and parts, valves and fittings are included in this system just like the normal sizes of brewery equipment.

200L Brewery Equipment – System Configuration Overview

Section	Item	Description	Quantity
Brewhouse	Mash / Lauter Tun	200L mash and lauter vessel for mashing and wort separation	1 set
	Kettle / Whirlpool Tun	200L kettle with integrated whirlpool for wort boiling and clarification	1 set
	Hot Liquor Tank (HLT)	200L hot liquor tank for brewing water heating and storage	1 set
	Portable Cart	Mobile platform for flexible operation	1 set
	Sanitary Centrifugal Pump	Food-grade pump for wort and liquid transfer	1 set
	Sanitary Piping	Complete sanitary stainless steel piping system	1 set
	Valves & Fittings	Stainless steel valves and fittings for brewhouse operation	1 set
	Plate Heat Exchanger	2 m² heat exchanger, 304 stainless steel	1 set
	Y-Type Pipe Filter	Inline filter for wort clarification and equipment protection	1 set
	Wort Aeration Station	Oxygen or air injection for healthy yeast fermentation	1 set
	Brewhouse Control Cabinet	Centralized control cabinet for brewhouse operation	1 set
Fermentation Unit	Fermentation Tank / Unitank	200L stainless steel fermenter / unitank	3 sets
	Portable Cart	Mobile cart for flexible operation	1 set
	Control Cabinet	Independent control cabinet for fermentation system	1 set
Glycol Cooling Unit	Glycol Water Chiller	Glycol cooling system for wortfermentation temperature control	1 set
	Glycol Water Transfer	Glycol circulation and piping system	1 set

Related cases

So far, we have supplied high-quality brewery equipment to over 2,600 breweries across 106 countries and regions — and are growing by at least 200 clients every year.
Each project reflects our dedication and expertise, as well as the careful consideration and trust of our customers.
Below are a few selected cases. To explore more inspiring real-world examples, please visit our Cases page via the navigation menu.

200L Beer Brewing System Ready for Installation In Brisbane, Austrlia

300L Brewery Project for Ushiku Brewing in Japan

300L Brewery Project for ANTELOPE BREWERY in Japan
