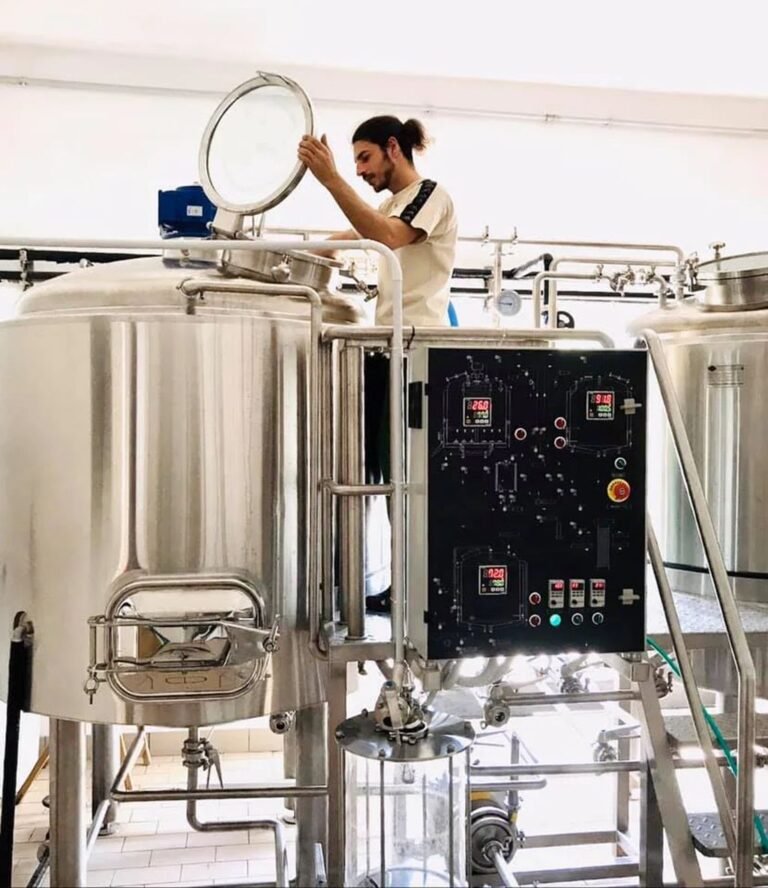

1200L Two Vessel Brewery Equipment Brief Introduction
The 1200L two-vessel brewery equipment is widely used in growing microbreweries and brewpubs. The brewhouse consists of a Mash/Lauter Tun and a Kettle/Whirlpool Tun. Mashing and lautering are completed in one vessel, while wort boiling and whirlpool clarification are carried out in the second vessel, ensuring a smooth and efficient brewing process with optimized space utilization.
This brewery equipment configuration is suitable for breweries planning one brew per day as standard operation. With proper scheduling, a second brew can be achieved with an interval of approximately 12–14 hours, making this brewery equipment a flexible solution for moderate production expansion.
1200L Brewery Equipment Specifications
Depending on fermentation time and beer styles, the 1200L brewery equipment is commonly matched with six 2400L fermentation tanks or twelve 1200L fermentation tanks. Mixed fermentation tank configurations are also available to support diversified production planning.
In addition to the brewhouse, the complete brewery equipment package includes a control system (manual or automatic), malt milling system, CIP system, cooling system, steam heating system, and compressed air system etc., providing a reliable turnkey brewery solution.
| Part 1: Malt Milling Unit | |||
| 1.1 Malt Miller [300-500kg/hr] | 1set | ||
| 1.2 Flexible Auger | 1set | ||
| 1.3 Milling Controlling Cabinet | 1set | ||
| Part 2: 12HL Brewhouse | |||
| 2.1 12HL Mash/Lauter Tun | 1set | ||
| 2.2 12HL Kettle/Whirlpool Tun | 1set | ||
| 2.3 25HL Hot Water Tank | 1set | ||
| 2.4 Non-slip Work Platform | 1set | ||
| 2.5 Sanitary Centrifugal Pump [LYSF] | 2sets | ||
| 2.6 Sanitary Piping | 1set | ||
| 2.7 Valves and Fittings | 1set | ||
| 2.8 Manual Water Mixing Station | 1set | ||
| 2.9 Manual Wort Cooling Station | 1set | ||
| 2.10 Pipeline Instrument Sensor | 0unit | ||
| 2.11 25L Glass Wort Grant | 1set | ||
| 2.12 12M2 Heat Exchanger [304SS NANHUA] | 1set | ||
| 2.13 Pipe Filter | 1set | ||

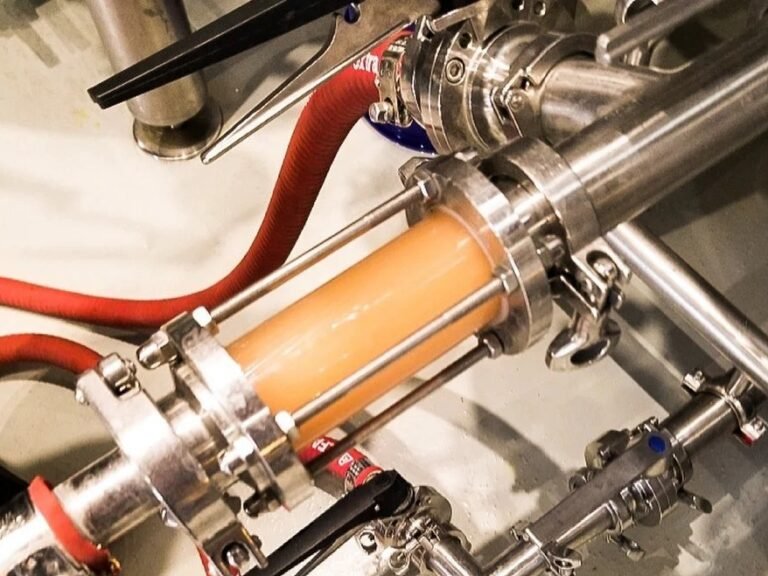

| 2.14 Wort Aeration Station | 1set | ||
| 2.15 20L Yeast Feeder | 1set | ||
| Part 3: Fermentation Unit | |||
| 3.1 2500L Fermentation Tank/Unitank | 4sets | ||
| 3.2 2500L Bright Beer Tank | 1set | ||
| Part 4: Glycol Cooling Unit | |||
| 4.1 2500L Glycol Water Tank | 1set | ||
| 4.2 5HP Glycol Water Chiller | 2sets | ||
| 4.3 Glycol Water Pipeline | 1unit | ||
| Part 5: Electric Control Unit | |||
| 5.1 Brewhouse Control Cabinet | 1set | ||
| 5.2 Fermentation Control Cabinet | 1set | ||
| Part 6: 100L Portable CIP Cart [Two Tanks] | |||
| 6.1 100L Single Wall Caustic Tank | 1set | ||
| 6.2 100L Single Wall Acid Tank | 1set | ||
| 6.3 Sanitary Centrifugal Pump | 1set | ||
| 6.4 Sanitary Piping | 1set | ||
| 6.5 Valves and Fittings | 1set | ||
| 6.6 Portable Trolley | 1set | ||
| 6.7 CIP Controlling Cabinet | 1set | ||
| Part 7: Spare Parts & Tools | |||
| 7.1 Spare Parts for the brewhouse | 1set | ||
| 7.2 Spare Parts for Fermentation | 1set | ||
| 7.3 Spare Parts for control | 1set | ||
| 7.4 Spare Parts for CIP | 1set | ||
| 7.5 Standard Installation Tools | 1set | ||
| Part 8: Keg Filling Unit | |||
| 8.1 1-Station Keg Filler | 1set | ||
| 8.2 2-Station 2-Tank Auto Keg Rinser | 1set | ||
| Part 9: Bottle Filling Unit | |||
| 9.1 8-Station Semiauto Bottling Machine | 1set | ||
| Part 10: Filtration Unit | |||
| 10.1 500kg/hr Candle DE Filter | 1set | ||
| 10.2 One Stage Membrane Filter | 0set | ||
| Part 11: Steam Supply Unit | |||
| 11.1 100kg/hr Steam Boiler | 1set | ||
| 11.2 Steam Inlet Piping and Valves | 1unit | ||
| 11.3 Steam Trap Piping and Valves | 1unit | ||
| 11.4 Steam Safety Piping and Valves | 1unit | ||
| 11.5 Steam Main Supply Line | 1unit | ||
| 11.6 Steam Distributing Cylinder | 1set | ||
| 11.7 Steam Branch Supply Line | 1unit | ||
| 11.8 Condensed Water Recycle Piping and Valves | 1unit | ||
| Part 12: Air Supply Unit | |||
| 12.1 420L Oil-free Air Compressor | 1set | ||
| 12.2 Air Filter | 3pcs | ||
| 12.3 Compressed Air Distribution Pipe | 1unit | ||
| Part 13: Water Supply Unit | |||
| 13.1 1000L Raw Water Tank [304SS] | 1set | ||
| 13.2 1000L/Hr RO Water system | 1set | ||
| 13.3 2000L Brew Water Tank [304SS] | 1set | ||
| 13.4 Water Pipe Line | 1unit | ||
*The specifications are adjustable as per the brewery project.
