This 100L brewery equipment features a two-vessel brewhouse with dedicated HLT, combined with a complete fermentation and glycol cooling system.
It is designed for recipe testing, pilot brewing, process validation, and small-batch production, while closely replicating commercial brewing operations.

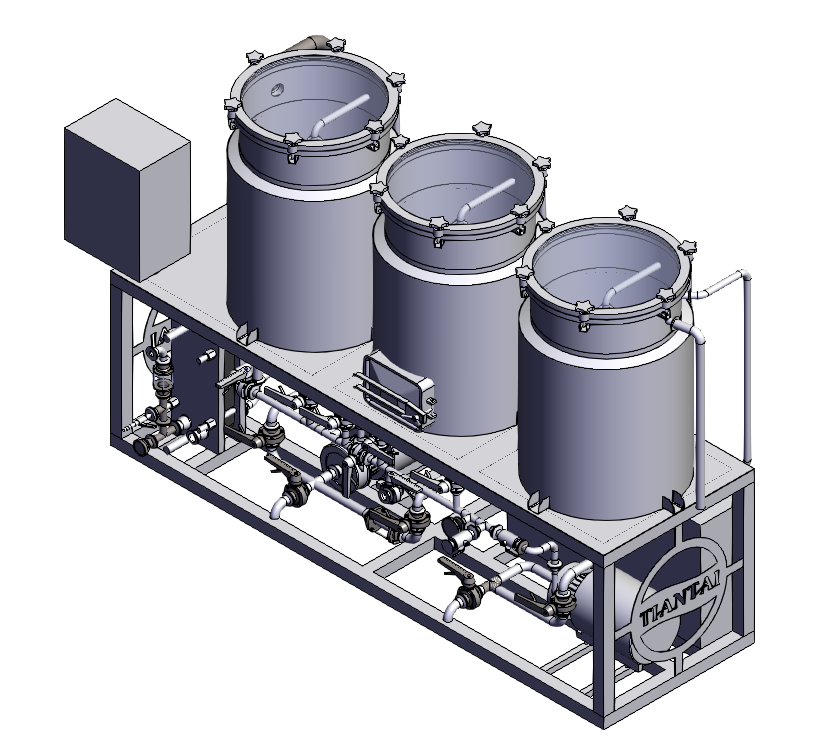

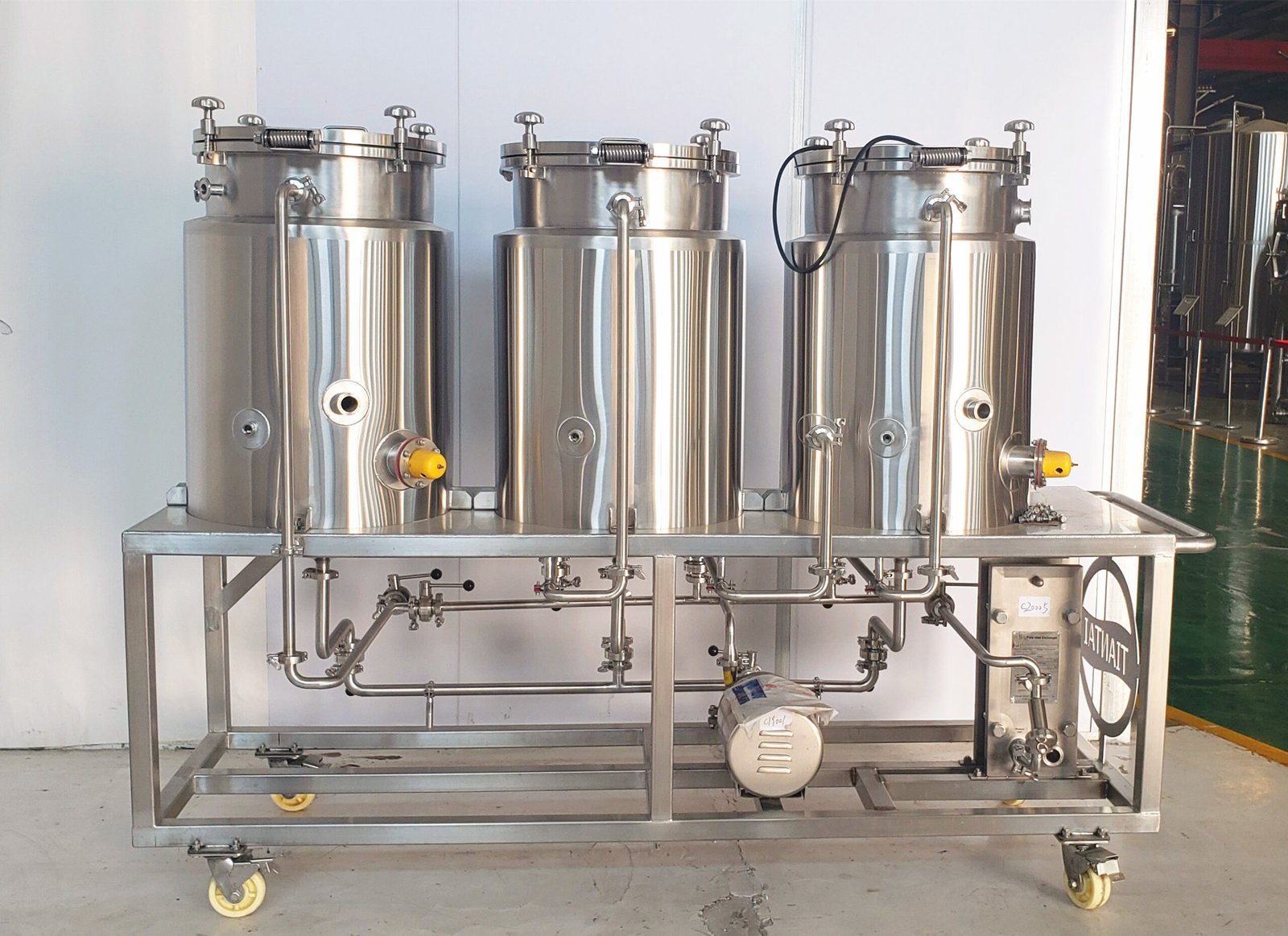

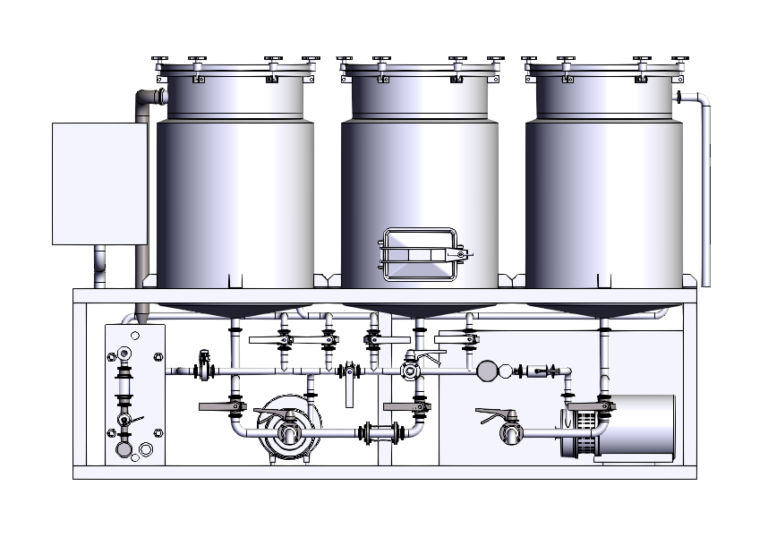

100L Brewery Equipment-Brewhouse
This is a 100L 2-vessel brewhouse, which is the classic combination of mash/lauter tun+kettle/whirlpool tun+hot water tank.
The whole system is designed and installed on a portable trolley with four wheels for the convenience of moving, you can feel free to brew beer and put it anywhere you want after the brewing process.
Top-opened glass manholes are easy for observing and operating.:-)
The white box on the very left is the control panel, which can be customized into this painting or completely stainless steel one for your preference.

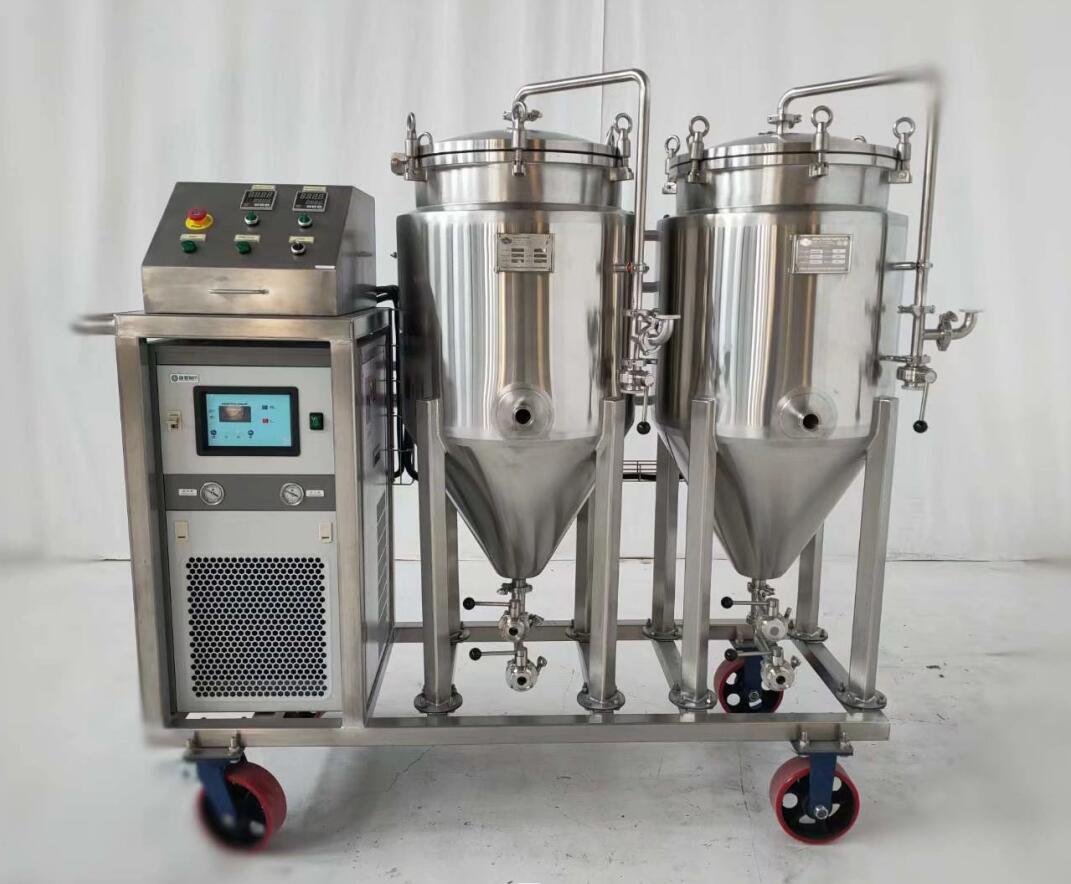

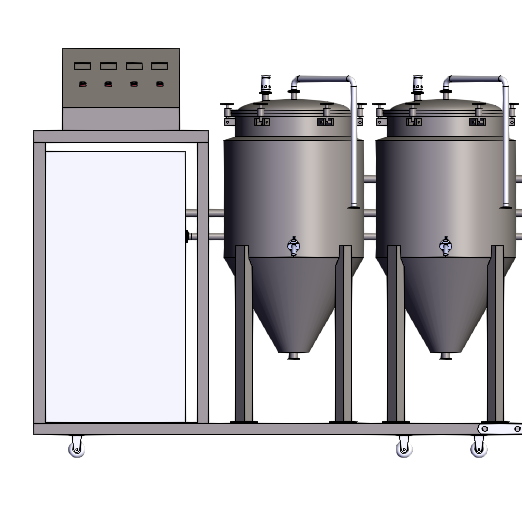

100L Brewery Equipment-Fermenter
Here are the fermenters put on the other trolley, the number of fermenters can be customized for your requirements, it could be one or two or three, four, usually depend on the types of beer you want to brew.
The left white box is a set of 1HP glycol chiller for providing glycol water.
Although this is a nano brewery system, all the components and parts, valves and fittings are included in this system just like the normal sizes of brewery equipment.
100L Brewery Equipment – System Configuration Overview
| Section | Item | Description | Quantity |
|---|---|---|---|
| Brewhouse | Mash / Lauter Tun | 100L mash and lauter vessel for mashing and wort separation | 1 set |
| Kettle / Whirlpool Tun | 100L kettle with integrated whirlpool for wort boiling and clarification | 1 set | |
| Hot Liquor Tank (HLT) | 100L hot liquor tank for brewing water heating and storage | 1 set | |
| Portable Cart | Mobile platform for flexible operation | 1 set | |
| Sanitary Centrifugal Pump | Food-grade pump for wort and liquid transfer | 1 set | |
| Sanitary Piping | Complete sanitary stainless steel piping system | 1 set | |
| Valves & Fittings | Stainless steel valves and fittings for brewhouse operation | 1 set | |
| Plate Heat Exchanger | 2 m² heat exchanger, 304 stainless steel | 1 set | |
| Y-Type Pipe Filter | Inline filter for wort clarification and equipment protection | 1 set | |
| Wort Aeration Station | Oxygen or air injection for healthy yeast fermentation | 1 set | |
| Brewhouse Control Cabinet | Centralized control cabinet for brewhouse operation | 1 set | |
| Fermentation Unit | Fermentation Tank / Unitank | 100L stainless steel fermenter / unitank | 2 sets |
| Glycol Water Chiller | Glycol cooling system for fermentation temperature control | 1 set | |
| Glycol Water Transfer | Glycol circulation and piping system | 1 set | |
| Portable Cart | Mobile cart for flexible operation | 1 set | |
| Control Cabinet | Independent control cabinet for fermentation system | 1 set |
