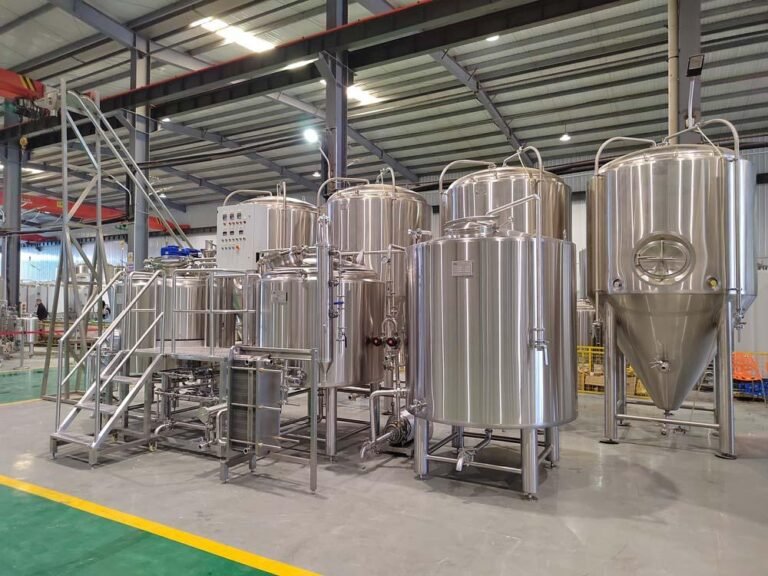

Main configuration of 1000L Brewery Equipment
| Main brewing system | Components | Main specification |
| Brewhouse unit | Mash/lauterĀ tun | 1000L 25% head space, Steam heating with insulation False bottom, Rake&motor, Spent grain outlet CIP, sight glass. Tangential inlet. |
| Kettle/Whirlpool tun | 1000L 30% head space, Steam heating with insulation Steam condenser, Wort outlet and trub outlet, Tangential inlet. |
|
| Hot Liquor Tank | 1000L 15% head space, Steam heating with insulation CIP. Level gauge Hot water recycling port |
|
| Wort pump | 3T/hr, Sanitary | |
| Hot liquor pump | 3T/hr, Sanitary | |
| Plate heat exchanger | 8m2 Two stages Connected with wort aeration device Disassemble |
|
| Ā Work platform | Disassemble, Adjustable |
|
| OPTIONAL | Wort grant Hopback Hopper Pneumatic valve Wort flow meter Sink Sterile air compressor |
|
| Fermentation unit | Fermentation tank | 1000L/2000L 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Side manway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges |
| Maturation/Storage (OPTIONL) | Ā Bright beer tank | 1000L/2000L 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Side manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks |
| Glycol cooling system | Glycol cooling tank | Thermowell Top manway CIP arm and spray ball 360 degree of coverage Thermowell |
| Cold liquor tank (OPTIONAL) | Top manway CIP arm and spray ball 360 degree of coverage Visual level sight glass Cooling jackets |
|
| Chiller | Second generation Freon R410A, R404A |
|
| Glycol water pump and piping | ||
| Controlling unit | Brewhouse control panel | Temperature monitoring& controlling Pump on/off control VFD control |
| Cellar control panel | Temperature monitoring& controlling More controllers reversing for expansion available |
|
| Cleaning unit | Alkali tank | 100LĀ Electric heating |
| Sterile tank | 100L | |
| Pump and piping |
Optional items: Beer filter, Keg filling system, Bottle filling system
Steam boiler, Water filter, Kegs, Malt transfer (grain auger)
Customized requirement acceptable
