We are pleased to present this 500L distillery project for our valued client, Old Station 31 Spirits in the USA. If you are looking for similar equipment or capacities for your own business, feel free to reach out for more details. Cheers!

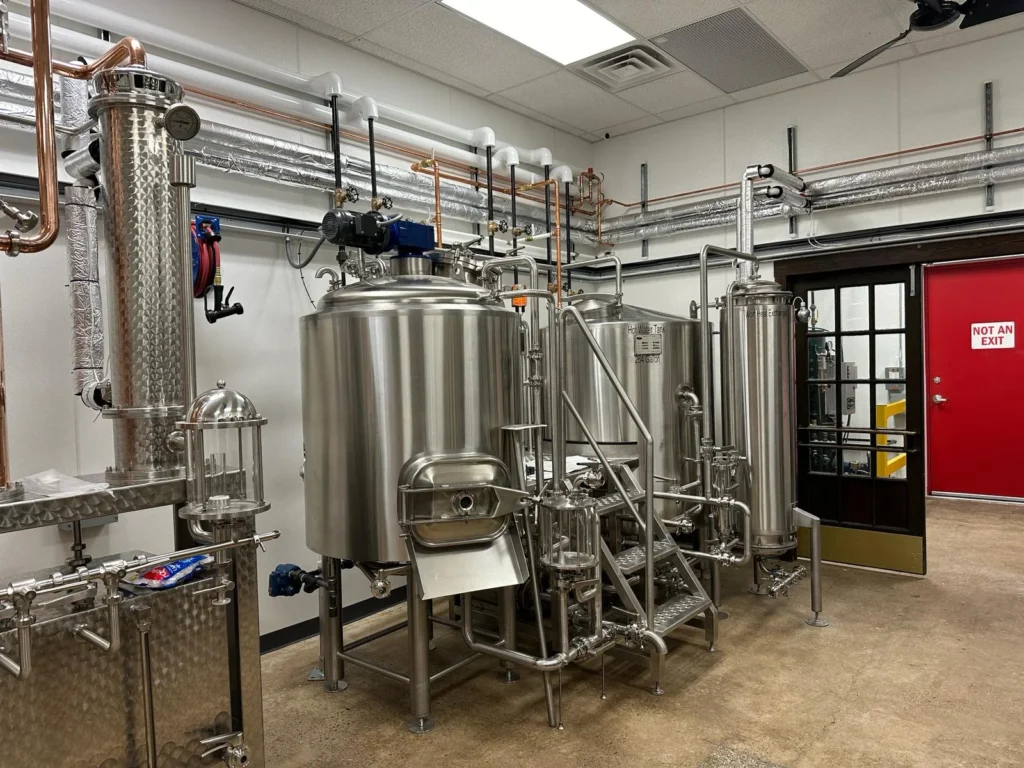

This is a 500l brewhouse(also called cooker in US) to do pre-mashing for distillation, which is combined by a 500L Mash/Lauter Tun and a 1000L Hot Liquor Tank. 500L distillery equipment
As they also do with-grain distilling sometimes, so the tubes heat exchanger is equipped in case of blocking when the wort is cooling instead of regular plate heat exchanger in beer brewing systems.500L distillery equipment

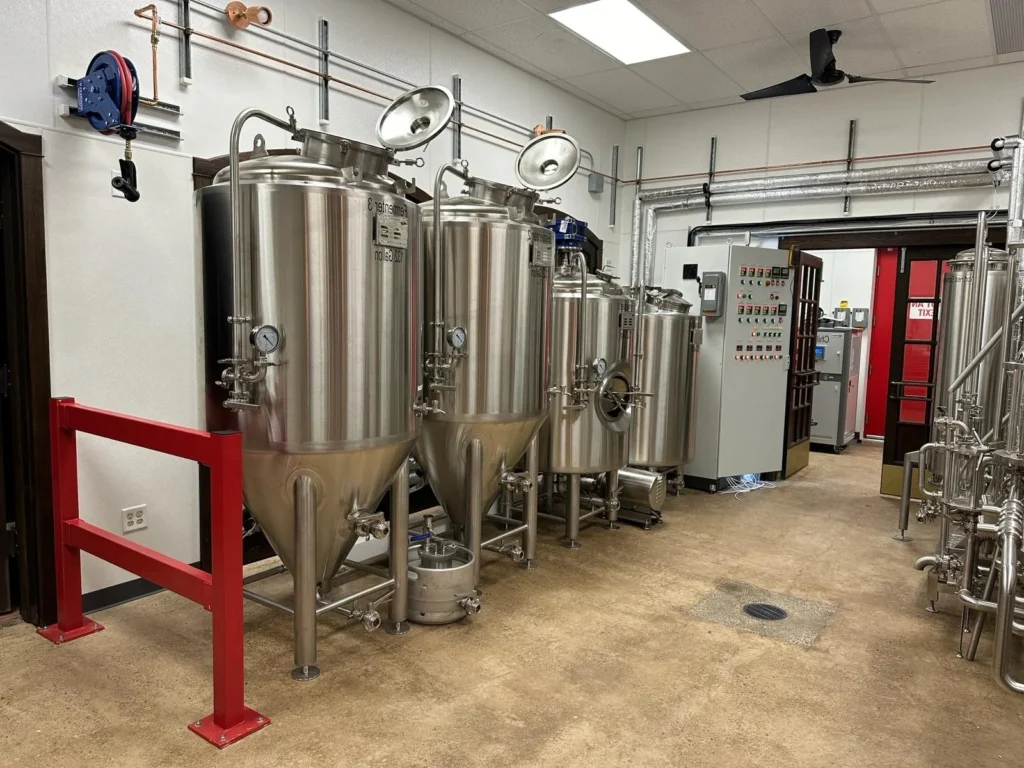

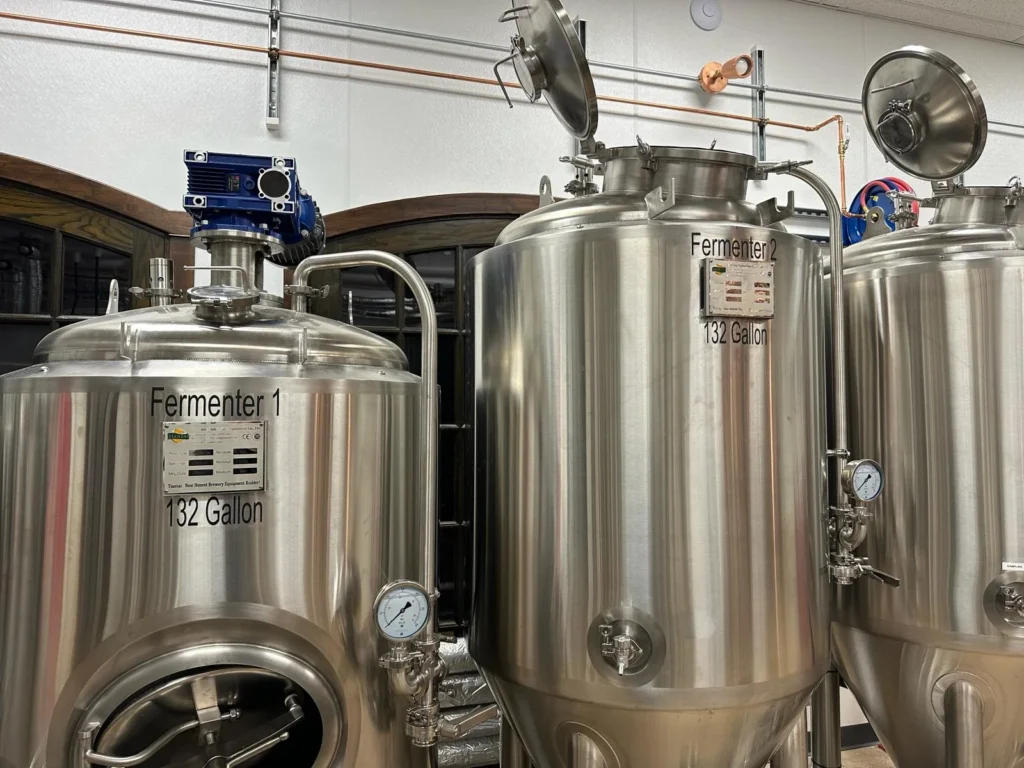

500L Fermenters-— the two tanks on right side are standard conical ones for fermenting clear mashing liquid.
And the one on left side is flat bottom one with agitator for mixing when there are substances remained in the liquid. 500L distillery equipment
Pipeline works all done by our customer themselves, we provide all necessary assistance including paper works, photos, videos, etc. to help. 500L distillery equipment
500L distiller with combined 4+8+8 columns for making both high&low alcohol spirits like gin, vodka, rum, whiskey, etc. 500L distillery equipment
Based on requests, the condenser and main pipeline are also made of red copper(standard are stainless steel), which makes the machine looks very nice totally.

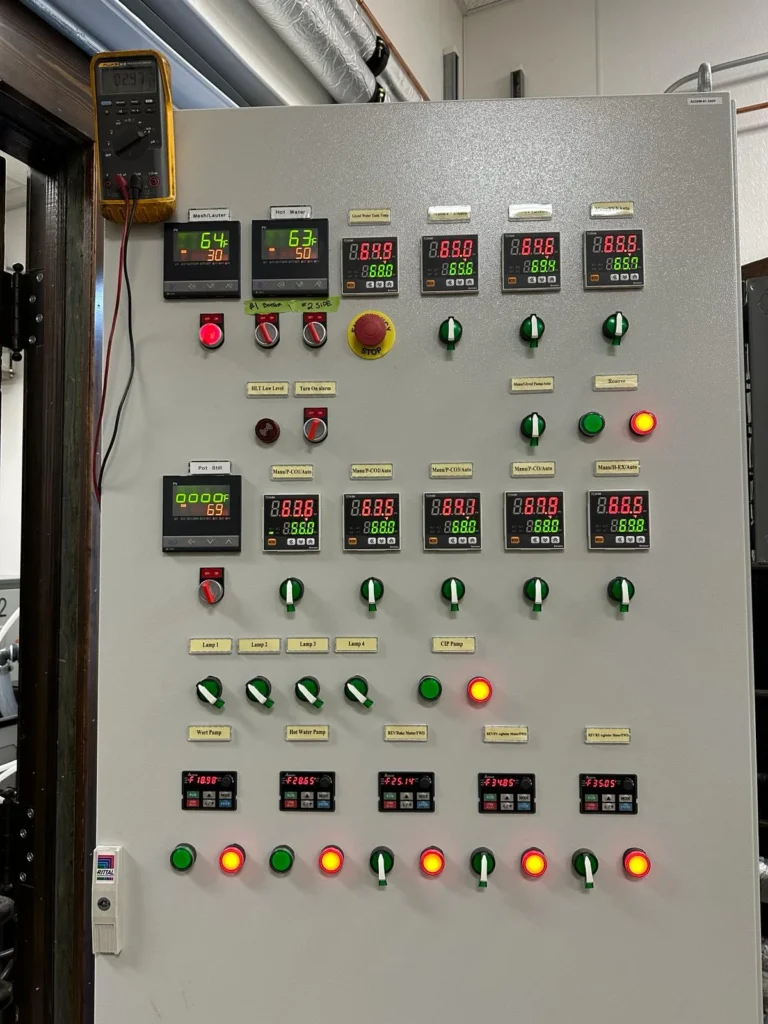

The control panel, which we designed and manufactured in-house, is best suited for this 5BBL distillery equipment. It not only offers flexible and user-friendly operation but also meets UL certification requirements for the U.S. market. 500L distillery equipment
We typically recommend two chillers for two key reasons:
1. Energy efficiency: During periods of high cooling demand—such as when wort cooling and fermentation occur simultaneously—both chillers operate together for optimal efficiency. When demand is lower, such as cooling only one or two fermenters, one chiller alone is sufficient. 500L distillery equipment
2. Backup capability: If one chiller malfunctions, the other can continue operating to prevent production delays, especially during critical stages like immediate wort cooling.
Pre- &
Happy customers 500L distillery equipment
After-Sales Services:500L distillery equipment
We offer turnkey solutions for brewing projects of all sizes—covering everything from design, manufacturing, and delivery to installation and ongoing maintenance.
Additional configurations and further details can be tailored to meet your specific requirements and requests. Feel free to reach out—we would be honored to help bring your brewery vision to life in any way we can!
