30BBL Brewery Equipment Successful Installation in Canada–Snake Lake Brewing Co

This 30bbl brewery equipment

is based on a standard configuration, which includes the following key components:

Below is a detailed overview of the standard configuration for a 30bbl  brewery equipment. Each component has been carefully selected and engineered to work seamlessly together, ensuring efficiency, consistency, and ease of operation for commercial craft beer production.

Part 1: Malt Milling Unit 30bbl brewery equipment
This unit prepares the grain for mashing. It includes a high-capacity Malt Miller capable of processing 1000–1200 kg per hour, ensuring a consistent grist. The Flexible Auger conveys malt smoothly to a grist silo, while the 2500L Grist Silo provides temporary storage to maintain workflow continuity. Operation is centralized through the Milling Control Cabinet for precision and ease.

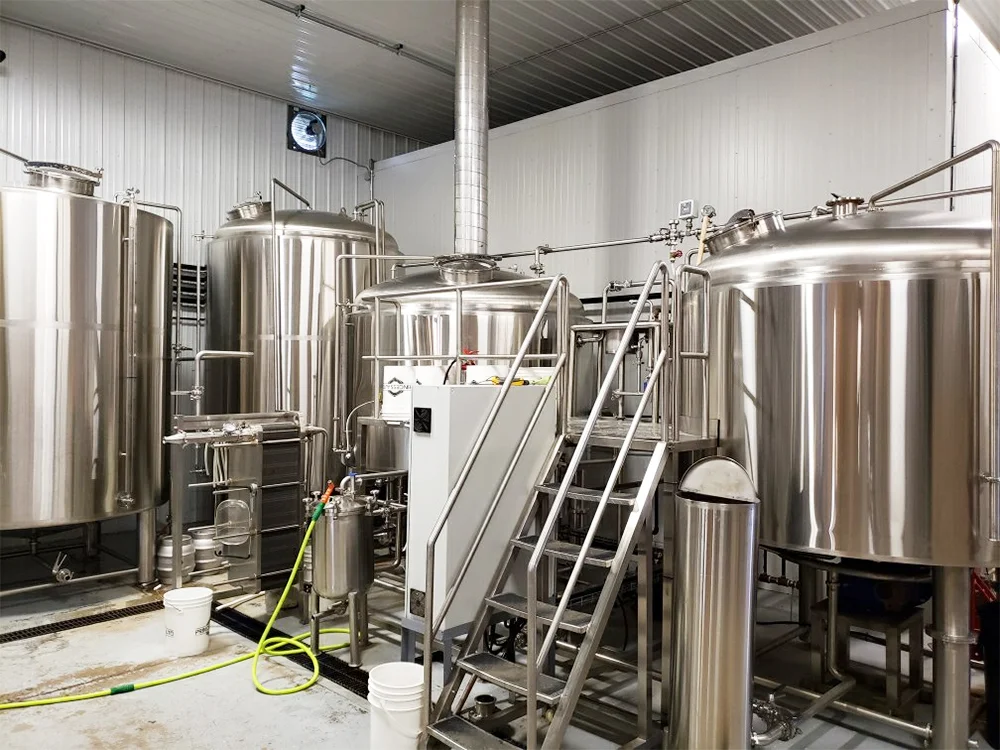

Part 2: 30BBL Brewhouse 30bbl Brewery Equipment
The heart of the brewery, this three-vessel brewhouse is designed for optimal extraction and boiling. It consists of a 30BBLMash Tun for starch conversion, a 30BBL Lauter Tun for wort separation, a combined 30BBL Kettle/Whirlpool Tun for boiling and trub removal, and a 60BBL Hot Water Tank to support brewing water heating and cleaning needs and recover some heated water from plate heat exchanger throughout the brewing process.

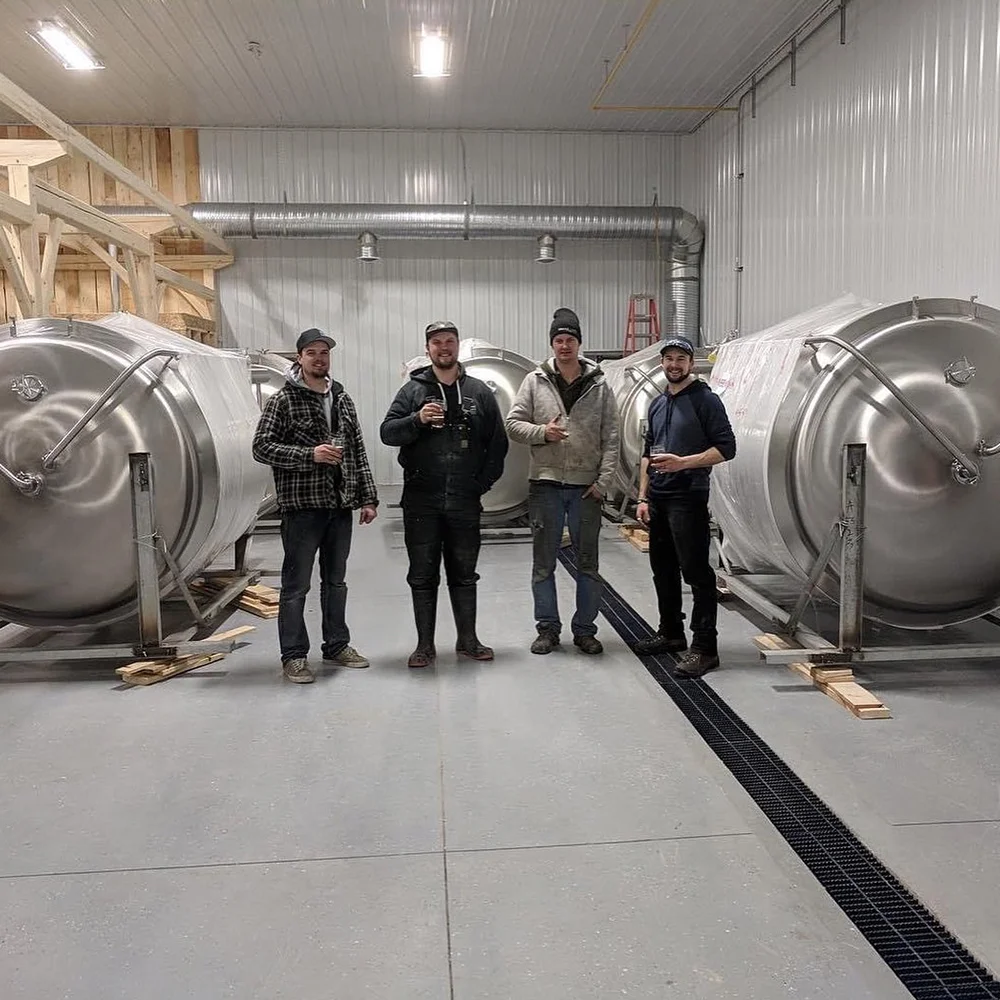

Part 3: Fermentation Unit 30bbl Brewery Equipment
This unit is responsible for beer fermentation and beer conditioning. It includes eight 30BBL Fermentation Tanks (also usable as Unitanks for combined fermentation and conditioning) and one 30BBL Bright Beer Tank for carbonation and final storage before packaging. All tanks are insulated and equipped for automatic temperature control.

Part 4: Glycol Cooling Unit 30bbl Brewery Equipment
Temperature management is critical in brewing. This system features a 30BBL Glycol Water Tank and two 15HP Glycol Chillers to circulate coolant, maintaining precise temperatures in fermentation and bright beer tanks. The 60BBL Cold Liquor Tank stores chilled brewing water for use in hot wort cooling stage within 30 minutes.

Part 5: Electric Control Unit 30bbl Brewery Equipment
Semi automated operation is enabled by dedicated control cabinets: one for the Brewhouse and another for Fermentation. These panels allow for programmable recipes, real-time monitoring, and precise control over temperatures, timings, and processes.

Part 6: 300L Fixed CIP Unit [Two Tanks] 30bbl Brewery Equipment
Hygiene is maintained by this built-in Clean-in-Place system. With two 300L tanks for cleaning and rinsing solutions, it allows for efficient, automated cleaning of tanks and pipelines without disassembly, saving time and ensuring sanitary conditions.

This complete setup provides everything needed to produce high-quality beer consistently and at scale, with flexibility for customization based on specific brewing styles or production goals.

For a standard 30bbl brewery equipment, the entire manufacturing and delivery period typically spans approximately 90 days, covering engineering, fabrication, quality inspections, and logistics. This timeline ensures each component is built to precision and arrives ready for efficient installation. Should you have a specific project in mind, our team would be delighted to prepare a detailed, customized proposal and a phase-by-phase timeline at your request. We can also adjust plans based on your brew system configuration, site readiness, and special requirements—everything to help you launch smoothly and on schedule. Feel free to reach out anytime to begin planning your brewery journey with us.

Upon receiving our brewery equipment, the customer finds every tank meticulously cleaned and sanitized, primed for immediate use. The gleaming vessels stand ready in the brewhouse, awaiting their inaugural brew. This moment marks the exciting transition from installation to operation, where plans become reality. The entire system, from the brewhouse to the fermentation tanks, has been thoroughly prepared to ensure a smooth and successful first run. It’s a milestone filled with anticipation—the beginning of crafting unique flavors and sharing them with the community. Cheers to new beginnings and the exceptional beers that will soon flow from these tanks!

Your satisfaction is always our greatest motivation.

TIANTAI company works for all brewery with high quality brewery equipment. We supply 2-150bbl complete brewery system including malt milling equipment, brewhouse equipment, fermenters, brite beer tanks, beer bottling machine,beer canning machine, beer kegging machine, hopping machine, yeast propagation equipment. We also supply all auxiliary brewery systems like steam heating pipe and valves, water treatment, filter, air compressor etc. Everything in brewery are all in our list.

We are also happy to customize configurations to meet your specific needs and help bring your brewery vision to life. It would be our pleasure to support you in every way possible.
