We are pleased to introduce our newly developed 100L Four-Vessel Experimental Brewing System, engineered for precision, scalability, and seamless automation in pilot-scale brewing and R&D applications. This integrated setup is designed to replicate commercial brewing processes with laboratory-level control, making it ideal for recipe development, process optimization, and small-batch production.
Core Components:
100L Mash Tun: Equipped with efficient heating and temperature control for precise starch conversion.
100L Lauter Tun: Designed with a fine false bottom for clear wort separation and optimized extract recovery.
100L Boil Kettle: Features robust heating elements and boil-over prevention for consistent wort boiling and hop utilization.
100L Whirlpool Tank: Ensures effective hot break separation and trub removal through optimized tangential inlet design.

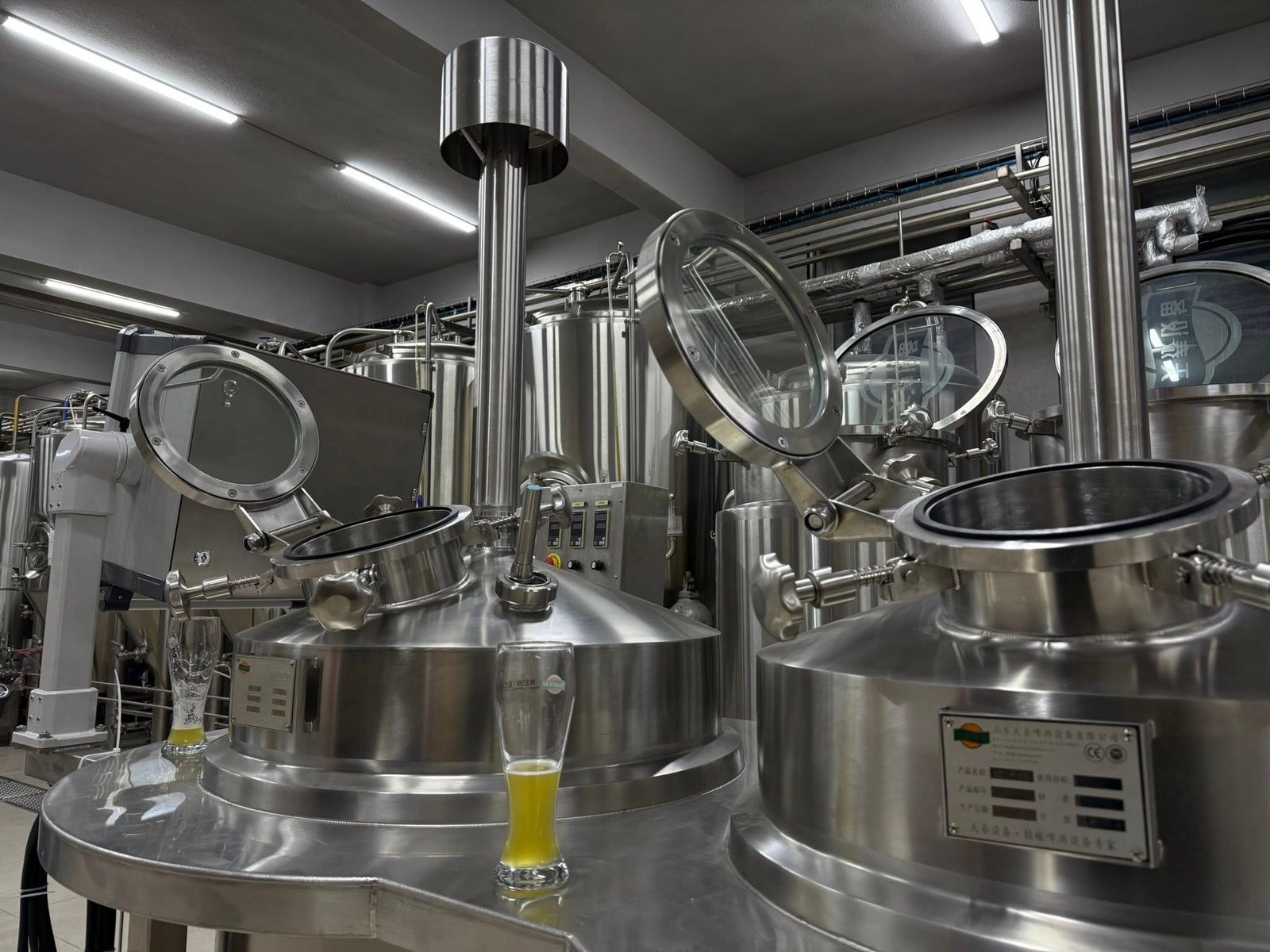

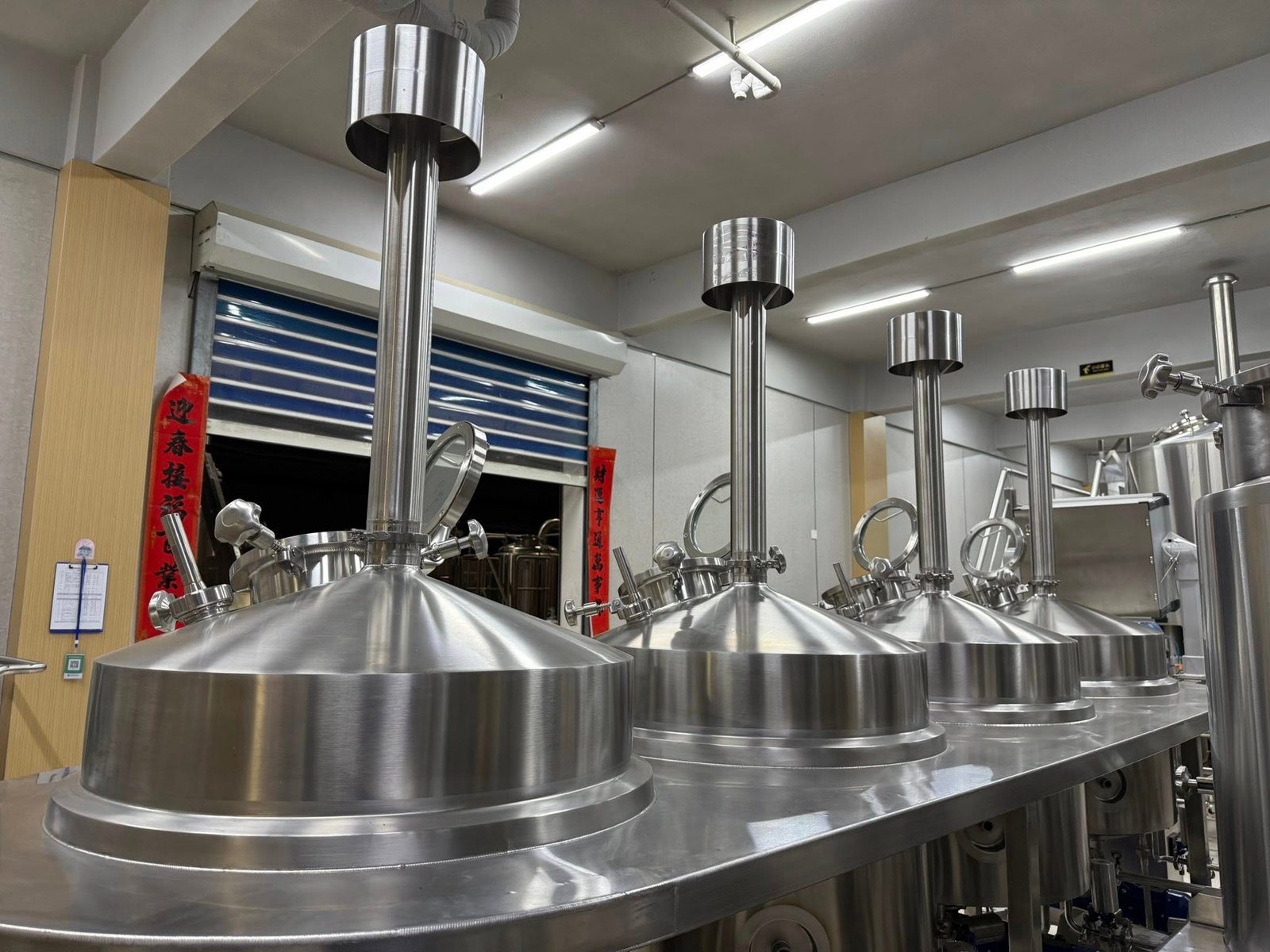

Professional-Grade 100L Four-Vessel Experimental Brewing System
Key Features:
Fully Automated PLC Control: The system is operated via an intuitive touchscreen PLC interface, allowing programmable multi-step temperature profiles, process timers, and seamless stage transitions. Automation ensures repeatability and reduces manual intervention.

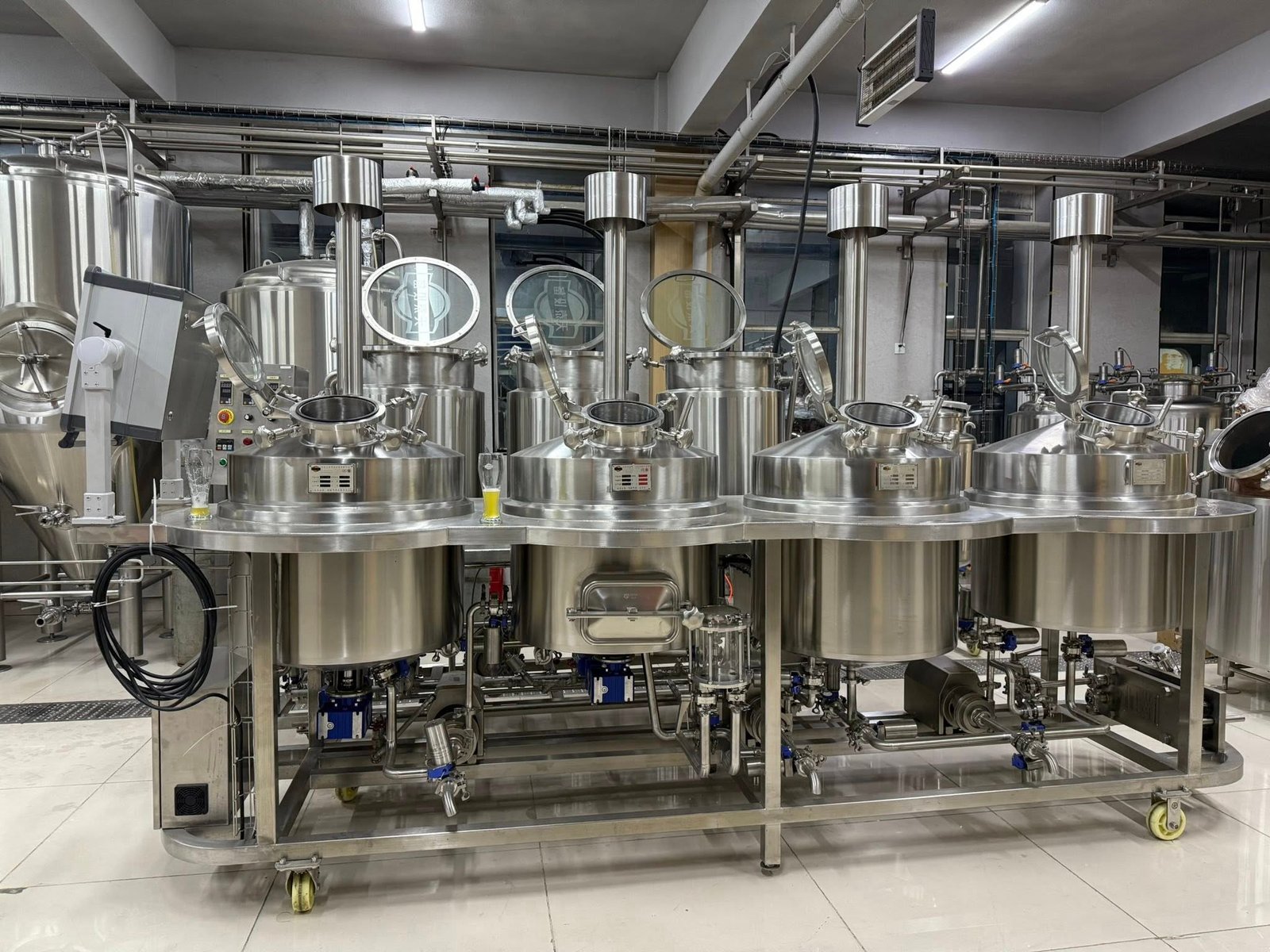

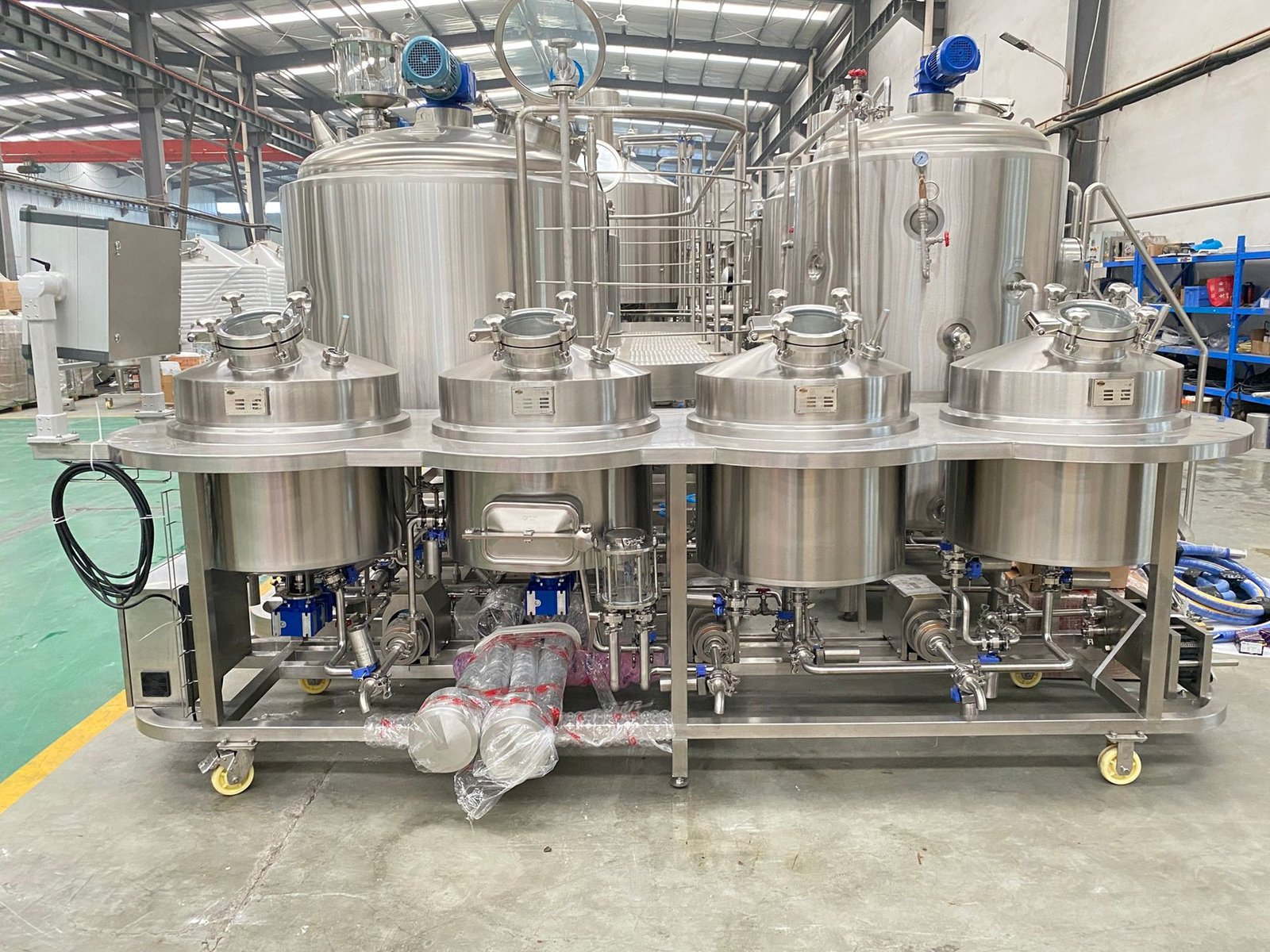

Mobility & Compact Layout: All vessels are mounted on a modular mobile frame with lockable casters, enabling flexible positioning, easy cleaning, and space-efficient storage.
Integrated Support Systems:
Plate Heat Exchanger: For rapid wort cooling with precise temperature management.
Chiller Unit: Provides consistent cooling capacity for fermentation temperature control.
100L Fermenter: Complementing the brewhouse, this fermenter includes temperature control fittings for stable fermentation conditioning.
Technical Advantages:
Scalability: Direct scale-up correlation from 100L experimental batches to commercial systems.
Sanitary Design: All product-contact surfaces use food-grade stainless steel (SS304/316) with polished finishes and CIP capability.
Energy Efficiency: High-efficiency heating elements and insulated vessels minimize heat loss.
User-Oriented Interface: The PLC enables recipe storage, real-time monitoring, and fault diagnostics for enhanced operational safety.
Applications:
Craft breweries piloting new recipes
Brewing schools and research institutes
Beverage companies developing fermented products
Quality control and process validation studies
This 100L system bridges the gap between laboratory experimentation and production-scale brewing, offering brewers unparalleled control, consistency, and adaptability.
For detailed specifications, operational manuals, or custom configuration requests, please contact our technical team.
