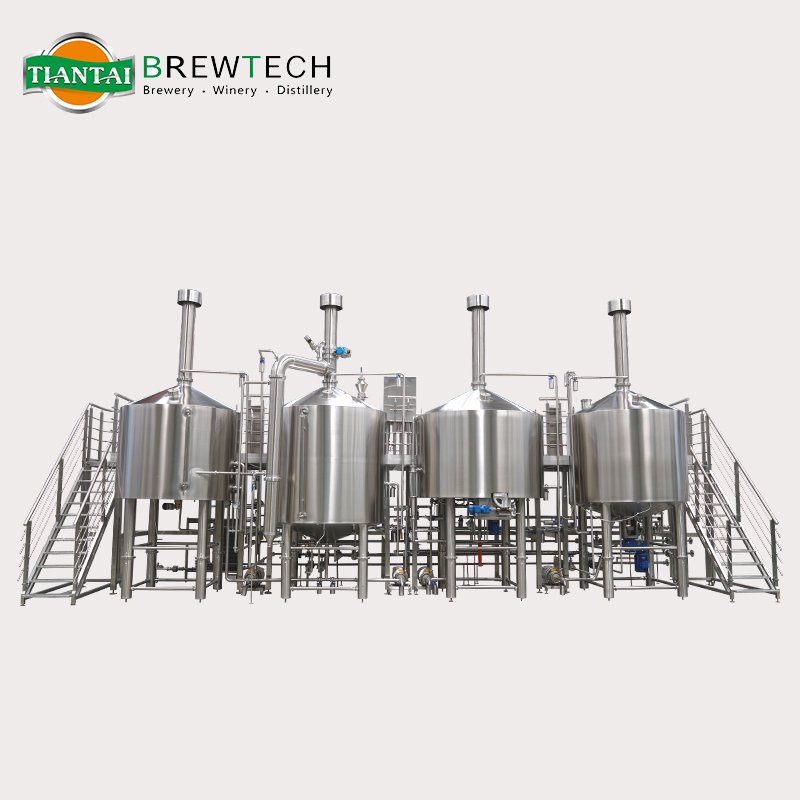

3000L Brewing System

3 4 4 4 5 2 6 2

3000L Brewing System Configuration Details:

Milling System	Mill machine	Stainless steel
	Grist case	Stainless steel
	Flexible conveyor	Outer PPR or Stainless steel

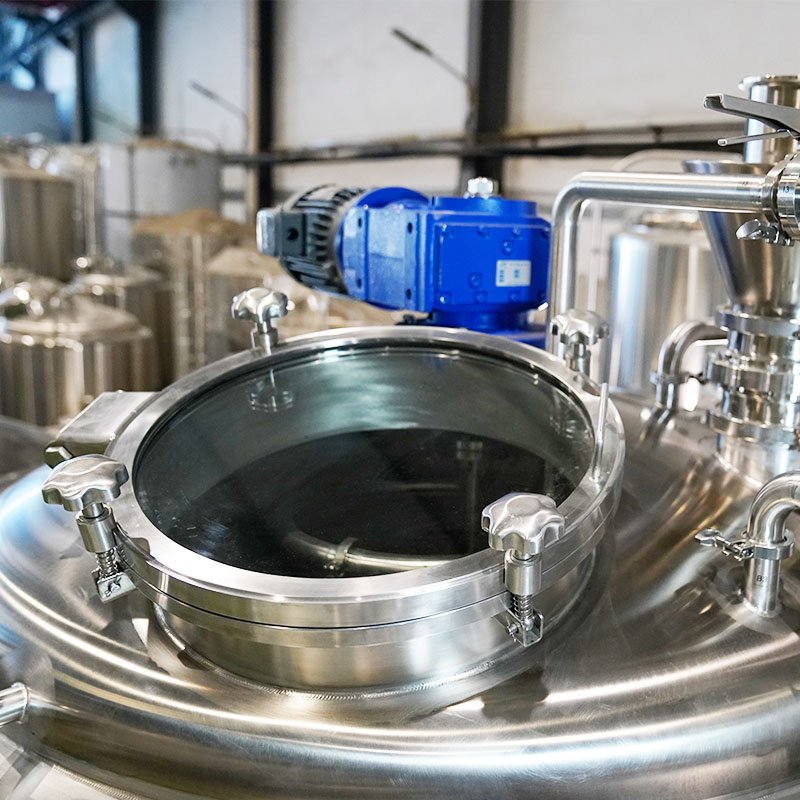

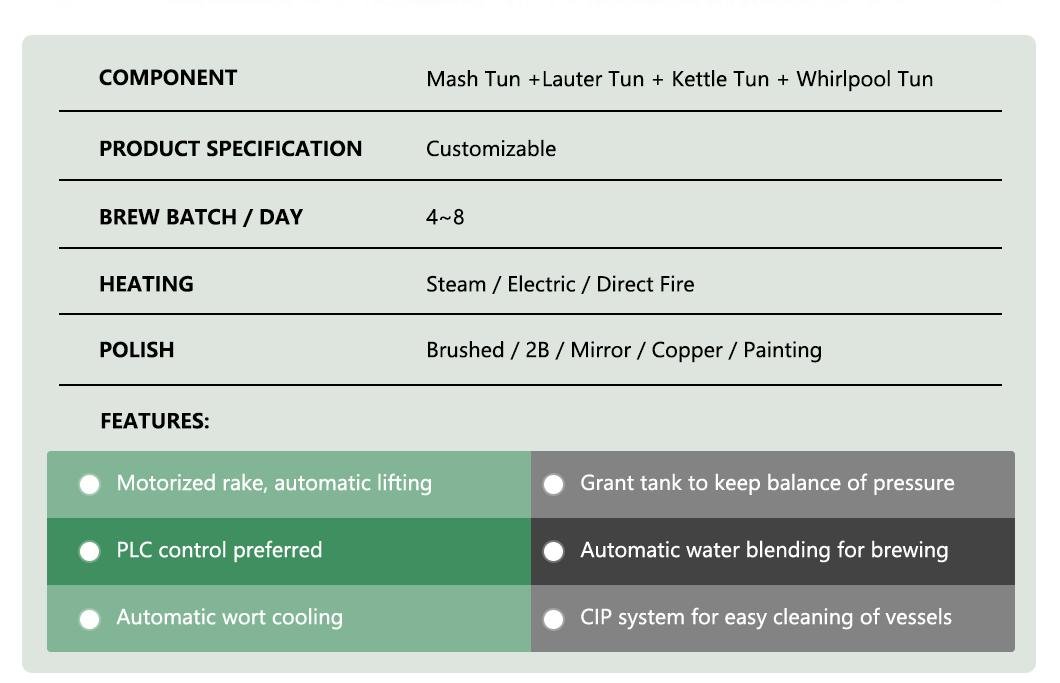

Brewhouse System	Mash tun	-Inner:3mm; outer:2mm-Motor agitation-Steam jackets/Electric elements/Fire direct heating

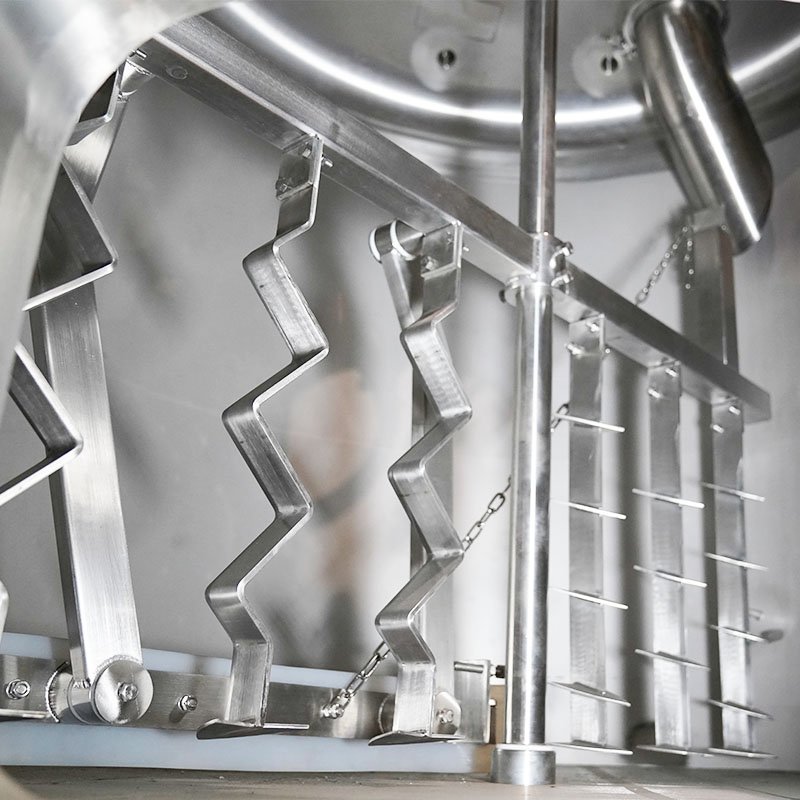

	Lauter tun	-Inner:3mm; outer:2mm-Rack knife system -False bottom filter -Wort Grant
	Brew Kettle	-Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating
	Whirlpool Tank	-Inner:3mm; outer:2mm-Side tangent whirlpool inlet
	Hot water tank	-Inner:3mm; outer:2mm-Steam jackets/Electric elements/Fire direct heating

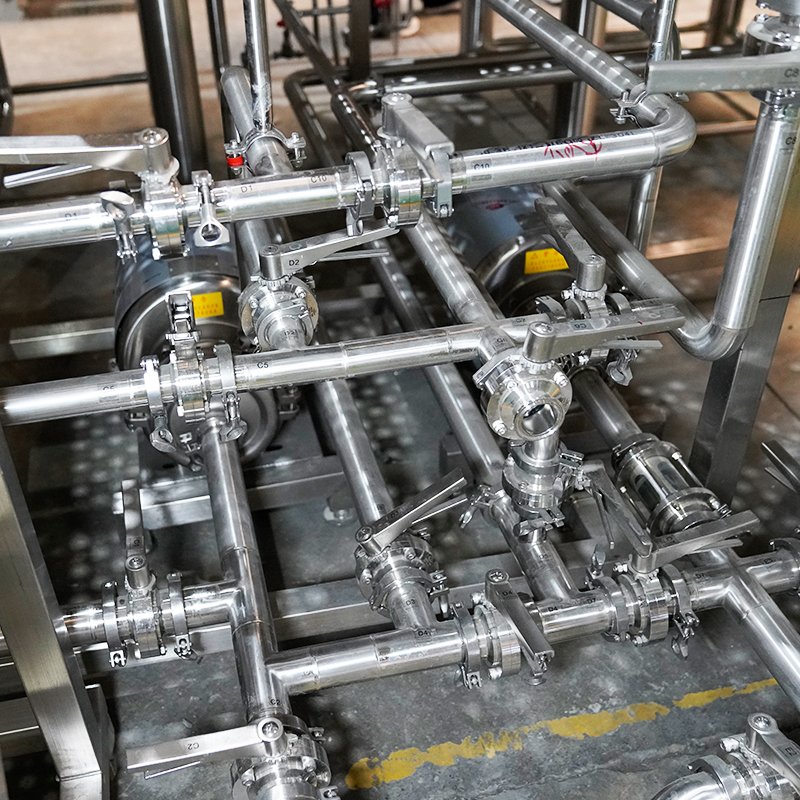

	Accessories	-Mash pump; Heat-exchange plate; Hop back system; Brewhouse Pipes;

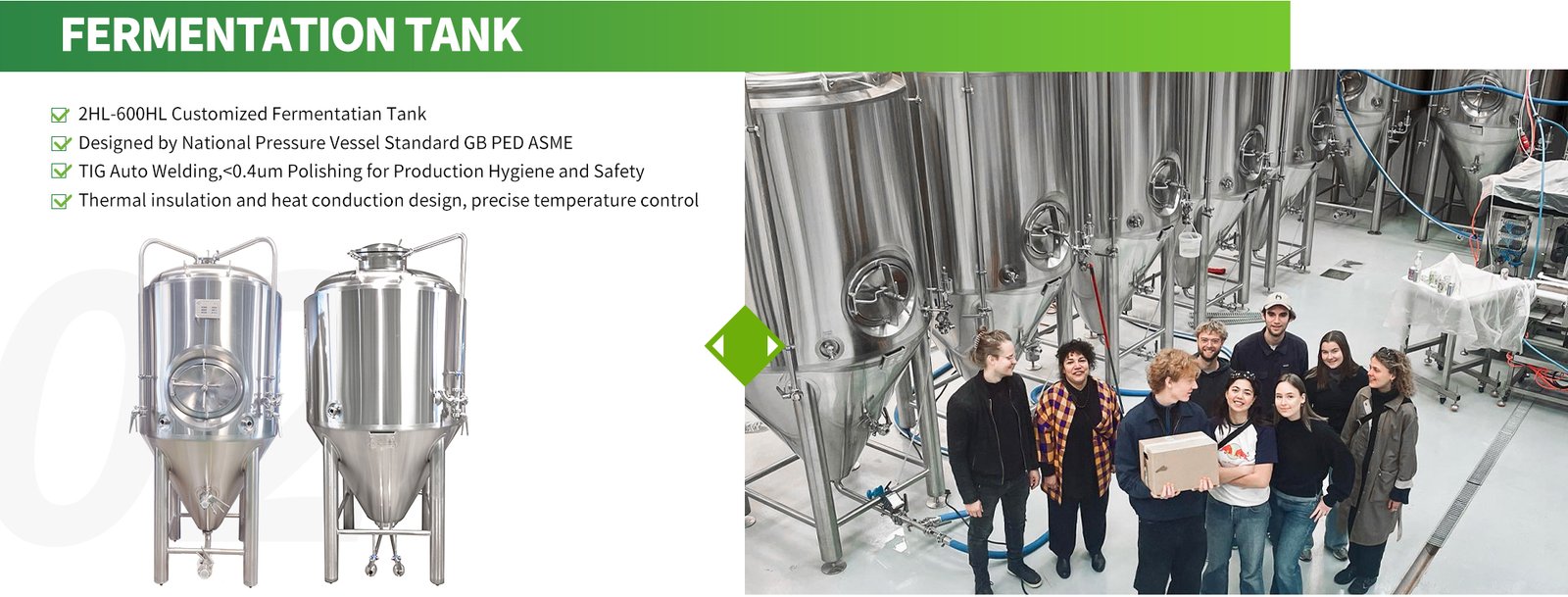

Fermentation System	Fermentation tank	-Pressure:3 Bar-Inner:3mm; outer:2mm; with insulation -Cooling jackets
Cooling System	Glycol water tank	-Inner:3mm; outer:2mm
	Cold water tank	-Inner:3mm; outer:2mm
	Accessories	Chiller; Glycol water pump; Pipes & Valves
CIP System	Acid tank, Caustic tank, Trolley	-Pump; Pipes & Valves-Accessories of the CIP System
Control System	-Automatic/Semi-auto
Filtering System	Candle type diatomite filter/Membrane filter/Bag filter
	Bright beer tank	Double-layer with insulation

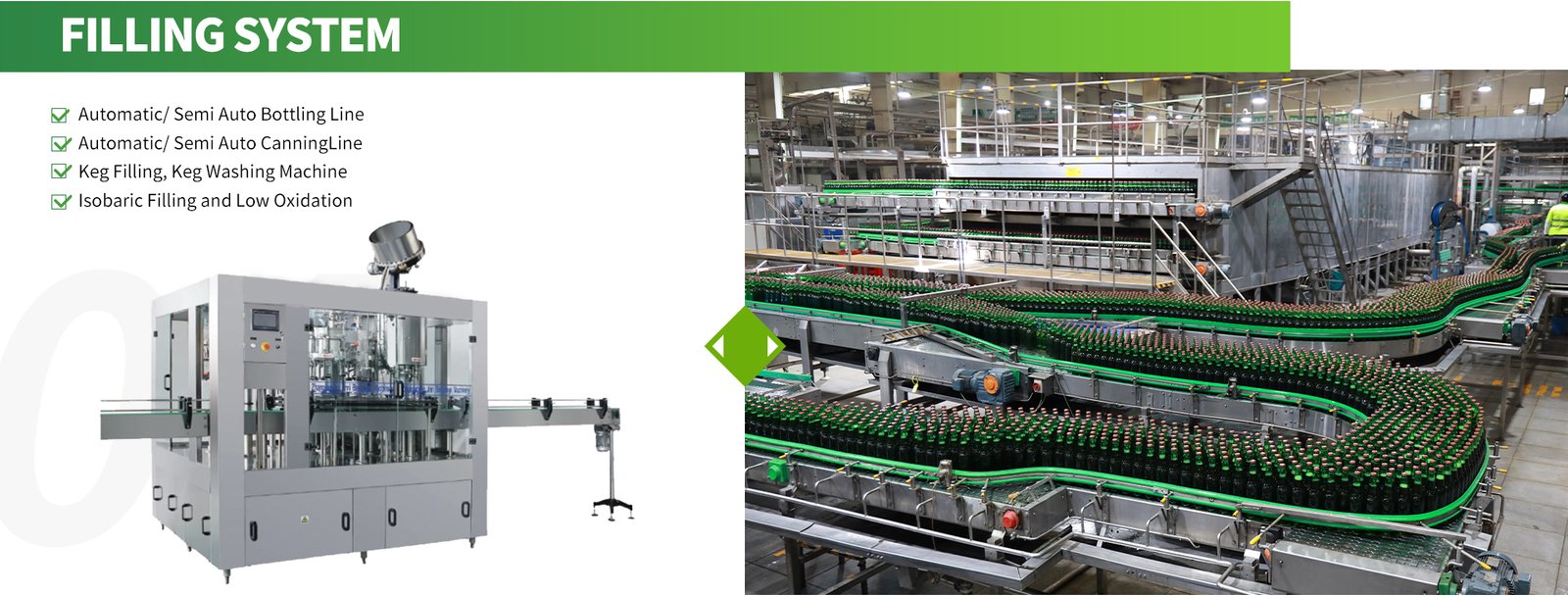

Filling System	Glass bottle line	Capacity:800-1200 BPH-Washing heads:8; Filling heads:8; Capping heads:3 -Optional: Capacity:1500-2000 BPH -Washing heads:16; Filling heads:16; Capping heads:6
	Canning line	Capacity:1000-1500 CPH-Filling heads:12; Capping heads:1
	Keg system	Keg filling machine; Keg washing machine; Keg washing and filling unity machine

7 2 8 2 9 1 10 1 11 1 12 1

FAQ:
Q1: How long would I receive the cargoes after ordering?
A1: There are mainly three phases before the equipment arrived to your
door:
1) Drawings Prepared: once the order is produced, our engineers will designed the technical drawings for you asap., and then our
factory will manufacture the equipment for you exactly based on the drawings, this would be need about 7-14 days.
2) Manufacturing: the production, testing and final finishing of the complete system would be need about 60-70 days.

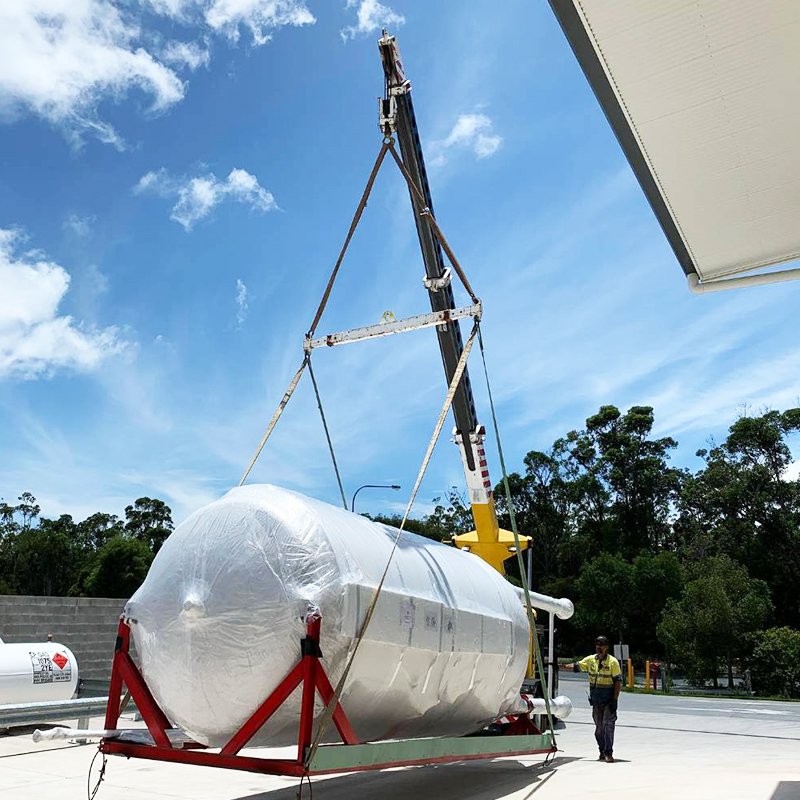

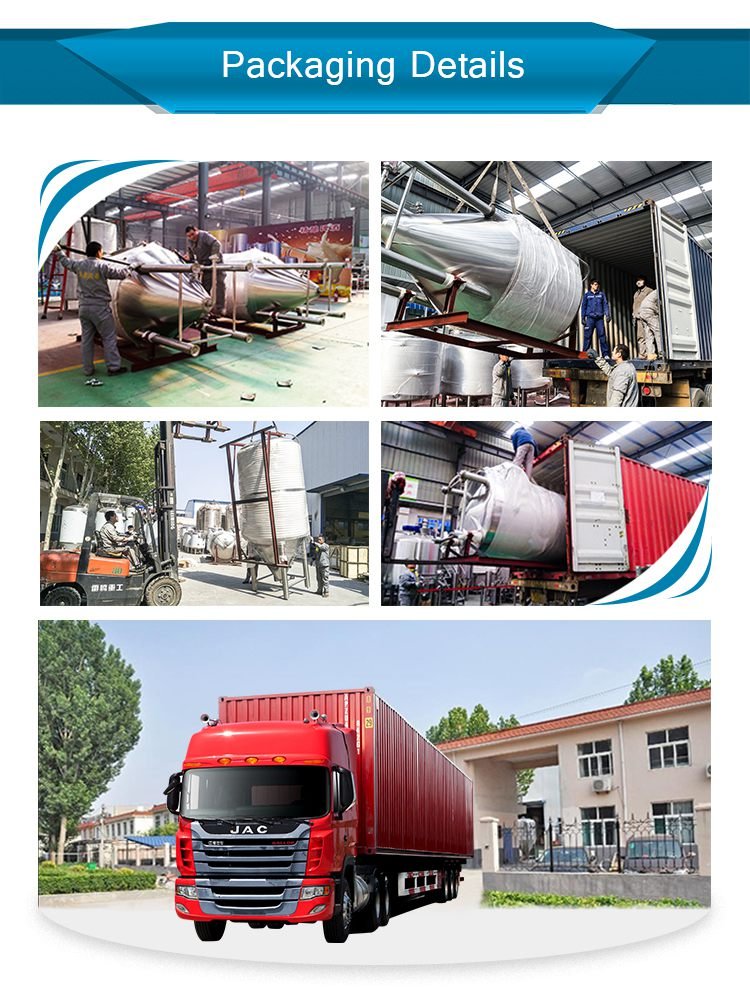

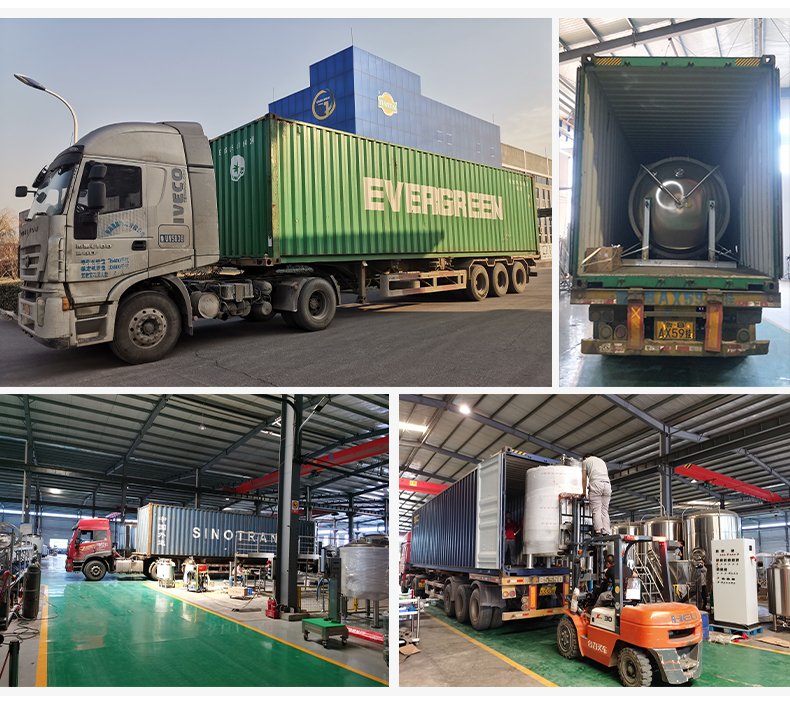

3) Vessel Booking and Shipment Arranging: 7 days around.
Q2: Do you offer installation or training services?
A2: Yes engineers are available to be send to your location to help with installation or training if needed.

Q3: How do I get the replacement accessories in the future? Are they available to be found in local store?
A3: Yes most of accessories we used are most likely to be found on international stores, if not, under the circumstances that they
are not in urgent uses, we’d love to resend them to you whenever there are needs.
Life long after sales services are provided.
