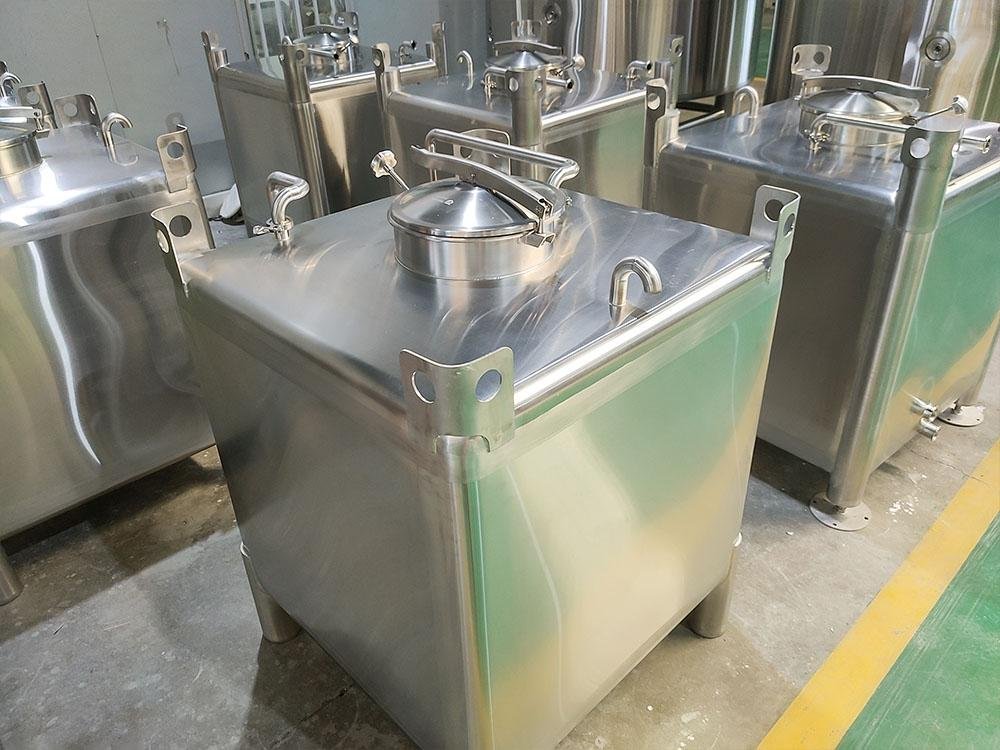

Square wine tanks are increasingly becoming a popular choice for wineries seeking efficient and cost-effective storage solutions. Designed primarily for finished wine or wine during resting and aging stages, these tanks typically operate under atmospheric or very low-pressure conditions.
Unlike traditional cylindrical tanks, square wine tanks feature flat panels and a compact footprint. When manufactured from high-quality stainless steel, they offer a range of practical and economic advantages, especially for wineries focused on maximizing space and operational efficiency.
1. Superior Space Efficiency
One of the most significant benefits of square wine tanks is their ability to optimize available space. Their flat-sided design allows tanks to be placed closely together without leaving unused gaps, making them ideal for cellars and warehouses where floor space is limited. Compared to round tanks, this configuration enables a higher storage capacity per square meter.
2. Stable and Scalable Stacking
Square tanks are well-suited for vertical stacking thanks to their geometric structure. With proper reinforcement, they can be safely stacked in two or even three levels. The load is typically supported by the frame or corner structures rather than the tank body itself, ensuring greater stability and safety compared to stacking cylindrical tanks.
3. Designed for Low-Pressure Applications
Wine storage generally does not require high-pressure vessels. Square tanks are perfectly suited for atmospheric or low-pressure conditions, allowing for a more efficient design without unnecessary material thickness. This makes them a practical and economical alternative to pressure-rated round tanks.
4. Flexible Batch Management
Square tanks are ideal for wineries that need flexibility in production and storage. Their standardized design makes it easy to organize and separate different grape varieties, vintages, or small experimental batches. This modular approach improves inventory management and production control.
5. Easier Transportation and Installation
The shape of square tanks simplifies logistics. They are easier to load into shipping containers, transport, and position within confined spaces. This makes them particularly suitable for containerized winery setups or modular, skid-mounted systems.
6. Cost-Effective Solution
For wine storage purposes, square tanks offer clear economic advantages. Their simpler structure and optimized material usage often result in lower manufacturing costs. Additionally, reduced installation complexity helps minimize overall project expenses, especially for large-scale storage applications.
Conclusion
Square wine tanks provide a smart and efficient solution for modern wineries. With advantages such as improved space utilization, stackable design, flexible batch handling, and reduced costs, they are an excellent choice for low-pressure wine storage applications.
About Tiantai
Tiantai specializes in turnkey solutions for brewery, winery, cider, and kombucha production systems. With years of industry experience, we are committed to delivering high-quality, customized equipment to meet the unique needs of our customers worldwide.
If you are planning a winery or looking to upgrade your storage system, feel free to contact us anytime.
